Dorman 030-014 Fuel Injector O-Ring Tech Tray
Regular price
$589.15
Couldn't load pickup availability
Product Description

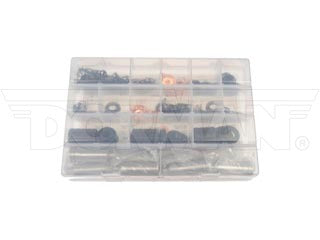

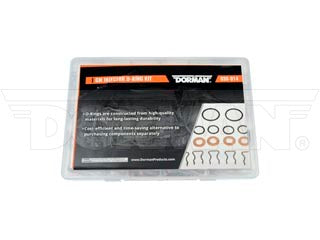

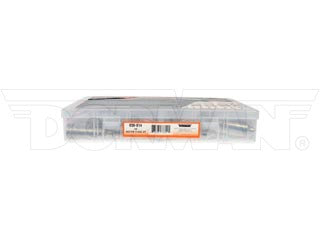

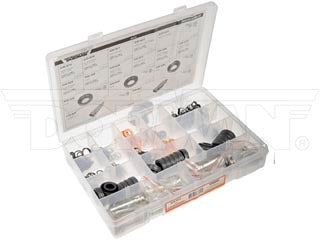

This convenient 376-piece fuel injector O-ring tech tray kit contains an assortment of the most popular O-rings, gaskets, seals, clips, crush washers and injector sleeves for GMC and Chevy vehicles equipped with Duramax diesel engines. The reusable plastic case is pre-sorted to quickly locate each item, and labeled with the replacement part number to simplify restocking.
- Complete assortment - this 376-piece kit contains an assortment of the most popular fuel injector O-rings, gaskets, seals, clips, crush washers and injector sleeves for GMC and Chevy vehicles equipped with Duramax diesel engines
- Convenient solution - each bin in the reusable plastic storage tray is labeled by part number to quickly locate the right part during service and to simplify reordering individual parts as needed
- Confidence assured - includes a matching visual reference guide to help identify and confirm original parts
- Cost effective - saves money compared to purchasing components individually
Product Specifications
| Bin Quantity: | 16 |
|---|---|
| Case Color: | Clear |
| Case Depth: | 2.375 in |
| Case Length: | 9.25 in |
| Case Material: | Plastic |
| Case Width: | 13 in |
| Material: | Rubber; Copper; Steel |
| O Ring Rim Shape: | Round |
| O-Ring Maximum Inside Diameter: | 10.947 mm; 20.37 mm; 10.94 mm; 19.26 mm; 3.14 mm; 16.24 mm; 22.9 mm |
| O-Ring Maximum Thickness: | 2.03 mm |
| O-Ring Minimum Inside Diameter: | 10.6934 mm; 19.9136 mm; 10.6934 mm; 18.74 mm; 2.86 mm; 15.76 mm; 23.1 mm |
| O-Ring Minimum Thickness: | 1.7018 mm; 1.7018 mm; 1.7018 mm; 1.77 mm; 1.38 mm; 1.38 mm; 2.4 mm |
| Package Contents: | 208 O-rings; 64 Crush Washers; 40 Gaskets; 32 Clips; 24 Seals; 8 Injector Sleeves |
| Package Quantity: | 1 |
| Packaging Type: | Tray |
| Selling Package Quantity UOM: | Kit |
OE Numbers
| NON-DIRECT OE CROSS | |
|---|---|
| 19256465 | GENERAL MOTORS |
| 94011699 | GENERAL MOTORS |
| 94011701 | GENERAL MOTORS |
| 94013303 | GENERAL MOTORS |
| 97188463 | GENERAL MOTORS |
| 97216082 | GENERAL MOTORS |
| 97225457 | CHRYSLER |
| 97327722 | GENERAL MOTORS |
| 9735975 | GENERAL MOTORS |
