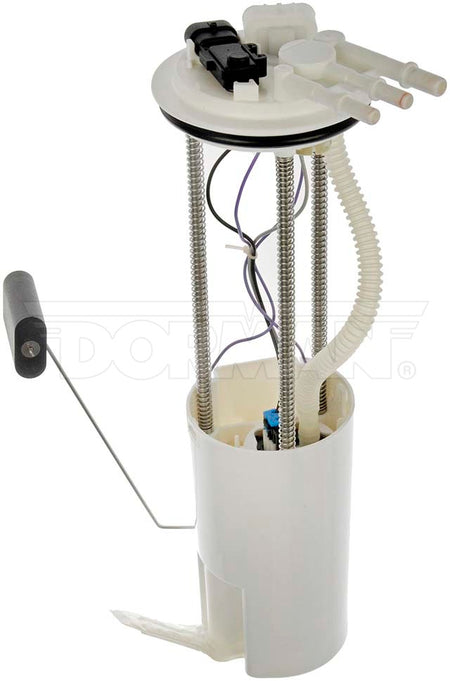

Dorman 2630304 Fuel Pump Module Assembly 97-02 Chevy S10 GMC Sonoma 25344814
Confirm Fitment Before You Buy
Not sure it fits? Message Year/Make/Model/Engine (2WD/4WD if applicable) and we’ll help confirm compatibility.
Why buy from Koskowski Automotive?
• 50+ years (since 1972) • Dorman Authorized Seller • Fast shipping • Easy returns
Regular price
$162.27
Select your vehicle at the top of the page to check fitment.
Couldn't load pickup availability
Vehicle Fitment: Use the table below to match your exact configuration. If you don’t see your exact setup, message us before ordering.
This fuel pump module assembly matches the fit and function of the original parts in specific vehicles. Built from durable materials, this pump is designed to be reliable over a long service life.
- Direct replacement - this fuel pump assembly matches the fit and function of the original equipment fuel pump on specified vehicles
- Durable construction - this fuel pump is made of quality materials for a long service life
- Saves money - offers original equipment quality at a competitive price
- Quality assured - this fuel pump assembly has undergone rigorous testing to ensure reliable performance
Vehicle Fitment
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2000-2002 | Chevrolet | S10 | 4.3L V6 | |
| 1999 | Chevrolet | S10 | wo/RPO Code K53 (Robust Fuel System Fuel Sender Assembly); 4WD; 4.3L V6 | |
| 1999 | Chevrolet | S10 | RWD; 4.3L V6 | |
| 1997-1998 | Chevrolet | S10 | 4.3L V6 | |
| 2000-2002 | GMC | Sonoma | 4.3L V6 | |
| 1999 | GMC | Sonoma | wo/RPO Code K53 (Robust Fuel System Fuel Sender Assembly); 4WD; 4.3L V6 | |
| 1999 | GMC | Sonoma | RWD; 4.3L V6 | |
| 1997-1998 | GMC | Sonoma | 4.3L V6 |
Please confirm the part number and your vehicle's year, make, model and engine before ordering. Questions? Message us with your VIN and we'll check fitment for you.
Specifications
| Brand | Dorman |
|---|---|
| Part Number | 2630304 |
| UPC | 747214016389 |
| Length | 370 mm |
| Width | 4.768 in. |
| Terminal Type | Blade Pin |
| Mounting Hardware Included | No |
| Height | 370 mm |
| Terminal Quantity | 4; 3; 43 |
| Connector Gender | Female |
| Terminal Gender | Male |
| Voltage | 15 |
| Regulator Included | No |
| Maximum Pressure | 80 |
| Wire Quantity | 4 |
| Connector Shape | Oval |
| Gasket Or Seal Included | Yes |
| Housing Material | Acetal |
| Maximum Flow Rating | 117 GPH |
| Strainer Included | Yes |
| Inlet Type | Flanged |
| Outlet Type | Flanged |
| Inlet Quantity | 1 |
| Outlet Quantity | 1 |
| Pump Type | Electric |
| Fuel Sending Unit Included | Yes |
| Inlet Outside Diameter | 7.9 mm |
| Outlet Outside Diameter | 9.5 mm |
| Fuel Type | Gas |
| Housing Width | 95 mm |
| Wiring Harness Length | 400 mm |
| Wire Gauge Measurement | 22 |
| Connector Color | White; Black |
| Universal Or Specific Fit | Specific |
| Housing Length | 175 mm |
| Grade Type | Standard Replacement |
| Top Mount Diameter | 113 mm |
| Lock Ring Included | No |
| In Tank or External | In Tank |
| Resistance Ohms Empty | 39 |
| Resistance Ohms Full | 250 |
| Gasket Or Seal Material | Rubber |
| Minimum Free Flow Rate | 180 GPH |
| Internal Or External Strainer | Internal |
| Pump Design | Electric In-tank |
| Average Current Draw | 8 |
| Fuel Tank Pressure Sensor Included | Yes |
| Package Contents | 1 Fuel Pump Module Assembly; 1 Harness; 4 Butt Connectors; 4 Heat Shrink Tubes |
| Wire Harness Included | Yes |
| Country of Origin | China |
| Warranty | Limited Lifetime |
OE & Interchange Numbers
| 25344814 | General Motors (OE) |
|---|---|
| FG0070 | Interchange |
| SP446M | Interchange |
| P75006M | Interchange |
