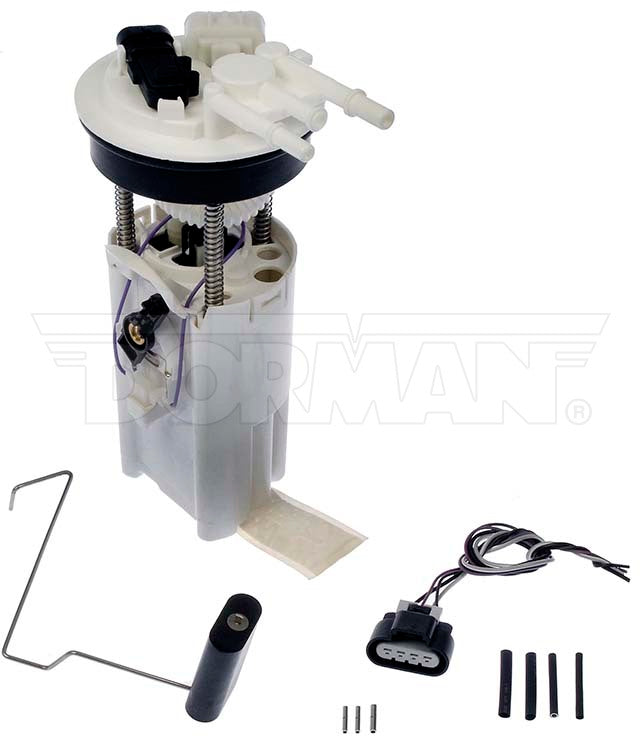

Dorman 2630315 Fuel Pump Module Assembly 00-01 GMC Yukon XL Chevy Suburban
Confirm Fitment Before You Buy
Not sure it fits? Message Year/Make/Model/Engine (2WD/4WD if applicable) and we’ll help confirm compatibility.
Why buy from Koskowski Automotive?
• 50+ years (since 1972) • Dorman Authorized Seller • Fast shipping • Easy returns
Regular price
$151.87
Select your vehicle at the top of the page to check fitment.
Couldn't load pickup availability
Vehicle Fitment: Use the table below to match your exact configuration. If you don’t see your exact setup, message us before ordering.
This fuel pump module assembly matches the fit and function of the original parts in specific vehicles. Built from durable materials, this pump is designed to be reliable over a long service life.
- Direct replacement - this fuel pump assembly matches the fit and function of the original equipment fuel pump on specified vehicles
- Durable construction - this fuel pump is made of quality materials for a long service life
- Saves money - offers original equipment quality at a competitive price
- Quality assured - this fuel pump assembly has undergone rigorous testing to ensure reliable performance
Vehicle Fitment
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2000-2001 | Chevrolet | Suburban 2500 | wo/RPO Code K53 (Robust Fuel System Fuel Sender Assembly) | |
| 2001 | GMC | Yukon XL 1500 | wo/RPO Code K53 (Robust Fuel System Fuel Sender Assembly); 5.3L V8 | |
| 2000 | GMC | Yukon XL 1500 | wo/RPO Code K53 (Robust Fuel System Fuel Sender Assembly) |
Please confirm the part number and your vehicle's year, make, model and engine before ordering. Questions? Message us with your VIN and we'll check fitment for you.
Specifications
| Brand | Dorman |
|---|---|
| Part Number | 2630315 |
| UPC | 747214098156 |
| Length | 158 mm |
| Width | 113 mm |
| Terminal Type | Blade |
| Mounting Hardware Included | Yes |
| Height | 270 mm |
| Terminal Quantity | 4; 43 |
| Connector Gender | Female |
| Terminal Gender | Male |
| Voltage | 12 |
| Regulator Included | No |
| Maximum Pressure | 62 |
| Wire Quantity | 4 |
| Connector Shape | Oval |
| Gasket Or Seal Included | Yes |
| Housing Material | Plastic |
| Maximum Flow Rating | 42 |
| Strainer Included | Yes |
| Inlet Type | Male |
| Outlet Type | Flanged |
| Inlet Quantity | 1 |
| Outlet Quantity | 1 |
| Pump Type | Electric |
| Fuel Sending Unit Included | Yes |
| Inlet Outside Diameter | 7.9 mm |
| Outlet Outside Diameter | 7.9 mm |
| Fuel Type | Gas |
| Housing Width | 121 mm |
| Wiring Harness Length | 12 in. |
| Wire Gauge Measurement | 1.5 in. |
| Connector Color | Black |
| Universal Or Specific Fit | Specific |
| Housing Length | 240 mm |
| Grade Type | Standard Replacement |
| Top Mount Diameter | 121 mm |
| Lock Ring Included | No |
| Fuel Filter Included | Yes |
| In Tank or External | In Tank |
| Resistance Ohms Empty | 40 |
| Resistance Ohms Full | 250 |
| Gasket Or Seal Material | Rubber |
| Minimum Free Flow Rate | 30 |
| Internal Or External Strainer | External |
| Pump Design | Main |
| Average Current Draw | 6.5 |
| Fuel Tank Pressure Sensor Included | Yes |
| Average Flow Rating | 120 gph |
| Package Contents | 1 Fuel Pump; 1 Wire Harness; 4 Heat Shrink Tubes |
| Wire Harness Included | Yes |
| Country of Origin | China |
| Warranty | Limited Lifetime |
OE & Interchange Numbers
| 25315983 | General Motors (OE) |
|---|---|
| 19121630 | General Motors (OE) |
| 19153716 | General Motors (OE) |
| SP6171M | Interchange |
| FG0105 | Interchange |
| E3509M | Interchange |
| P74836M | Interchange |
