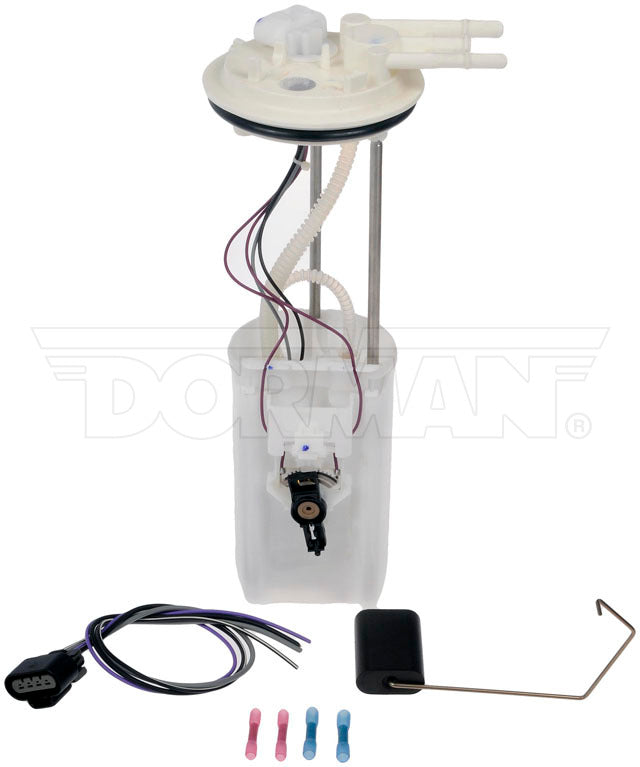

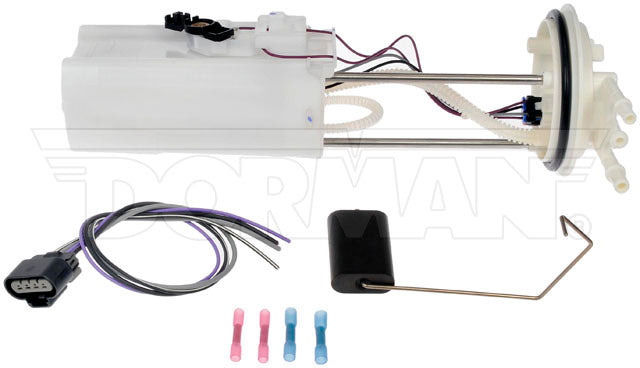

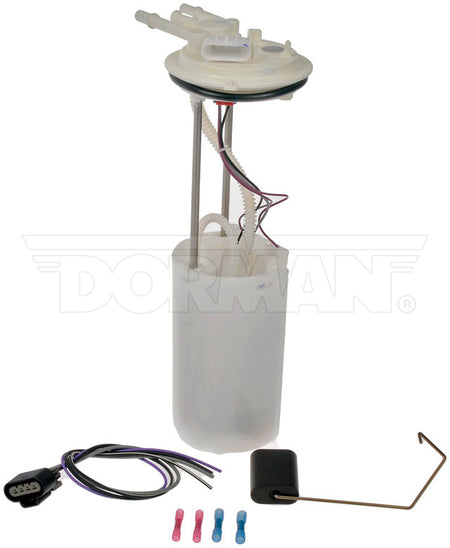

Dorman 2630332 Fuel Pump Module Assembly 97-02 Chevy Express GMC Savana 25314352
Confirm Fitment Before You Buy
Not sure it fits? Message Year/Make/Model/Engine (2WD/4WD if applicable) and we’ll help confirm compatibility.
Why buy from Koskowski Automotive?
• 50+ years (since 1972) • Dorman Authorized Seller • Fast shipping • Easy returns
Regular price
$185.09
Select your vehicle at the top of the page to check fitment.
Couldn't load pickup availability
Vehicle Fitment: Use the table below to match your exact configuration. If you don’t see your exact setup, message us before ordering.
This fuel pump module assembly matches the fit and function of the original parts in specific vehicles. Built from durable materials, this pump is designed to be reliable over a long service life.
- Direct replacement - this fuel pump assembly matches the fit and function of the original equipment fuel pump on specified vehicles
- Durable construction - this fuel pump is made of quality materials for a long service life
- Saves money - offers original equipment quality at a competitive price
- Quality assured - this fuel pump assembly has undergone rigorous testing to ensure reliable performance
Vehicle Fitment
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 1997-2002 | Chevrolet | Express 1500 | Over 8,600 Lb. GVW; Sender and Pump Assembly; wo/California Emissions | |
| 1997-2002 | Chevrolet | Express 2500 | Over 8,600 Lb. GVW; Sender and Pump Assembly; wo/California Emissions | |
| 1997-2002 | Chevrolet | Express 3500 | Over 8,600 Lb. GVW; Sender and Pump Assembly; wo/California Emissions | |
| 1997-2002 | GMC | Savana 1500 | Over 8,600 Lb. GVW; Sender and Pump Assembly; wo/California Emissions | |
| 1997-2002 | GMC | Savana 2500 | Over 8,600 Lb. GVW; Sender and Pump Assembly; wo/California Emissions | |
| 1997-2002 | GMC | Savana 3500 | Over 8,600 Lb. GVW; Sender and Pump Assembly; wo/California Emissions |
Please confirm the part number and your vehicle's year, make, model and engine before ordering. Questions? Message us with your VIN and we'll check fitment for you.
Specifications
| Brand | Dorman |
|---|---|
| Part Number | 2630332 |
| UPC | 747214303328 |
| Length | 170 mm |
| Width | 154 mm |
| Terminal Type | Spade |
| Height | 345 mm |
| Terminal Quantity | 4 |
| Connector Gender | Female |
| Terminal Gender | Male |
| Maximum Pressure | 110 |
| Wire Quantity | 4 |
| Connector Shape | Oval |
| Gasket Or Seal Included | Yes |
| Housing Material | Plastic |
| Maximum Flow Rating | 47.56 |
| Inlet Type | Jet |
| Outlet Type | Male Quick Connect |
| Outlet Quantity | 2 |
| Outlet Outside Diameter | 0.375 in.; 0.313 in. |
| Housing Width | 92 mm |
| Wire Gauge Measurement | 15; 17 |
| Connector Color | White |
| Universal Or Specific Fit | Specific |
| Housing Length | 168 mm |
| Top Mount Diameter | 112.5 mm |
| Lock Ring Included | No |
| Package Contents | 1 Fuel Pump Module Assembly |
| Country of Origin | China |
| Warranty | Limited Lifetime |
OE & Interchange Numbers
| 25314352 | General Motors (OE) |
|---|---|
| 25314356 | General Motors (OE) |
| E3966M | Interchange |
| SP3371M | Interchange |
| 150015 | Interchange |
| MU1749 | Interchange |
| 67438 | Interchange |
| FG0098 | Interchange |
| SP457M | Interchange |
| P74778M | Interchange |
