Product Description

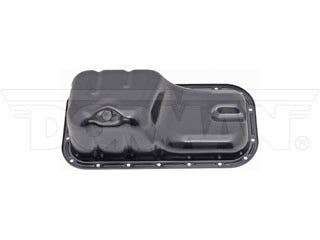

Oil pan leaking? This engine oil pan is precision-engineered to match the original equipment pan on specific vehicle years, makes and models for a reliable replacement.
- Direct replacement - this engine oil pan is made to match the original pan on specific vehicles
- Complete assembly - includes replacement pan and drain plugs to match original components
- Durable design - high-strength coating prevents future corrosion
- Trustworthy value - backed by team of engineers and quality control experts in the United States
Detailed Applications
| Year | Make | Model | Configuration | Positions | Application Notes |
|---|---|---|---|---|---|
| 1995 | Geo | Metro | L4 79 1.3L (1295cc) | ||
| 1995 | Pontiac | Firefly | L4 79 1.3L (1295cc) | ||
| 1995 | Suzuki | Esteem | L4 97 1.6L (1590cc) | ||
| 1995 | Suzuki | Swift | L4 79 1.3L (1298cc) | ||
| 1994 | Geo | Metro | L4 79 1.3L (1298cc) | ||
| 1994 | Pontiac | Firefly | L4 79 1.3L (1295cc) | ||
| 1994 | Suzuki | Swift | L4 79 1.3L (1298cc) | ||
| 1993 | Geo | Metro | L4 79 1.3L (1298cc) | ||
| 1993 | Suzuki | Swift | L4 79 1.3L (1298cc) | ||
| 1993 | Suzuki | Swift | L4 97 1.6L (1590cc) | ||
| 1992 | Chevrolet | Metro | L4 79 1.3L (1295cc) | ||
| 1992 | Geo | Metro | L4 79 1.3L (1298cc) | ||
| 1992 | Suzuki | Swift | L4 79 1.3L (1298cc) | ||
| 1992 | Suzuki | Swift | L4 97 1.6L (1590cc) | ||
| 1991 | Suzuki | Swift | L4 79 1.3L (1298cc) | ||
| 1990 | Suzuki | Swift | L4 79 1.3L (1298cc) | ||
| 1989 | Suzuki | Swift | L4 79 1.3L (1298cc) |
Product Specifications
| Baffled: | Yes |
|---|---|
| Color: | Black |
| Crank Shaft Wiper Included: | No |
| Dipstick Port: | No |
| Drain Plug Included: | Yes |
| Drain Thread Size: | M14x1.5 |
| Engine Oil Cooler Return Fitting: | No |
| Gasket Or Seal Included: | No |
| Installation Hardware Included: | No |
| Kick Out Type Pan: | No |
| Length: | 16.75 in |
| Material: | Steel |
| Maximum Depth: | 6.25 In |
| Maximum Width: | 8.75 in |
| Package Contents: | Oil Pan |
| Package Quantity: | 1 |
| Packaging Type: | Box |
| Pickup Included: | No |
| Sump Location: | Rear |
| Sump Type: | Wet |
| Windage Tray Included: | No |
OE Numbers
| DIRECT OE CROSS | |
|---|---|
| 1151063B00 | SUZUKI |
| 1151063B01 | SUZUKI |
| 11510-71C00 | SUZUKI |
| 11510-71C01 | SUZUKI |
| 91172245 | GENERAL MOTORS |
| 96066381 | GENERAL MOTORS |
