Product Description

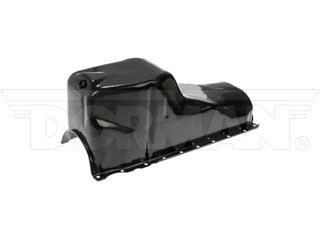

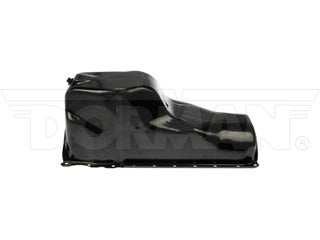

Oil pan leaking? This engine oil pan is precision-engineered to match the original equipment pan on specific vehicle years, makes and models for a reliable replacement.
- Direct replacement - this engine oil pan is made to match the original pan on specific vehicles
- Complete assembly - includes replacement pan and drain plugs to match original components
- Durable design - high-strength coating prevents future corrosion
- Trustworthy value - backed by team of engineers and quality control experts in the United States
Detailed Applications
| Year | Make | Model | Configuration | Positions | Application Notes |
|---|---|---|---|---|---|
| 2002 | Chevrolet | G30 (Mexico) | V8 454 7.4L | ||
| 2002 | GMC | G3500 | V8 454 7.4L | ||
| 2001 | Chevrolet | G30 (Mexico) | V8 454 7.4L | ||
| 2001 | GMC | G3500 | V8 454 7.4L | ||
| 2000 | Chevrolet | C2500 | V8 454 7.4L | ||
| 2000 | Chevrolet | C3500 | V8 454 7.4L | ||
| 2000 | Chevrolet | C3500HD | V8 454 7.4L | ||
| 2000 | Chevrolet | Express 3500 | V8 454 7.4L | ||
| 2000 | Chevrolet | K2500 | V8 454 7.4L | ||
| 2000 | Chevrolet | K3500 | V8 454 7.4L | ||
| 2000 | GMC | C2500 | V8 454 7.4L | ||
| 2000 | GMC | C3500 | V8 454 7.4L | ||
| 2000 | GMC | C3500HD | V8 454 7.4L | ||
| 2000 | GMC | G3500 | V8 454 7.4L | ||
| 2000 | GMC | K2500 | V8 454 7.4L | ||
| 2000 | GMC | K3500 | V8 454 7.4L | ||
| 2000 | GMC | Savana 3500 | V8 454 7.4L | ||
| 2000 | Workhorse | P32 | V8 454 7.4L | ||
| 2000 | Workhorse | P42 | V8 454 7.4L | ||
| 2000 | Workhorse Custom Chassis | P32 | V8 454 7.4L; GAS | ||
| 1999 | Chevrolet | C2500 | V8 454 7.4L | ||
| 1999 | Chevrolet | C2500 Suburban | V8 454 7.4L | ||
| 1999 | Chevrolet | C3500 | V8 454 7.4L | ||
| 1999 | Chevrolet | C3500HD | V8 454 7.4L | ||
| 1999 | Chevrolet | Express 3500 | V8 454 7.4L | ||
| 1999 | Chevrolet | K2500 | V8 454 7.4L | ||
| 1999 | Chevrolet | K2500 Suburban | V8 454 7.4L | ||
| 1999 | Chevrolet | K3500 | V8 454 7.4L | ||
| 1999 | Chevrolet | P30 | V8 454 7.4L | ||
| 1999 | GMC | C2500 | V8 454 7.4L | ||
| 1999 | GMC | C2500 Suburban | V8 454 7.4L | ||
| 1999 | GMC | C3500 | V8 454 7.4L | ||
| 1999 | GMC | C3500HD | V8 454 7.4L | ||
| 1999 | GMC | G3500 | V8 454 7.4L | ||
| 1999 | GMC | K2500 | V8 454 7.4L | ||
| 1999 | GMC | K2500 Suburban | V8 454 7.4L | ||
| 1999 | GMC | K3500 | V8 454 7.4L | ||
| 1999 | GMC | P3500 | V8 454 7.4L | ||
| 1999 | GMC | Savana 3500 | V8 454 7.4L | ||
| 1999 | Workhorse | P32 | V8 454 7.4L | ||
| 1999 | Workhorse | P42 | V8 454 7.4L | ||
| 1999 | Workhorse Custom Chassis | P32 | V8 454 7.4L; GAS | ||
| 1998 | Chevrolet | C2500 | V8 454 7.4L | ||
| 1998 | Chevrolet | C2500 Suburban | V8 454 7.4L | ||
| 1998 | Chevrolet | C3500 | V8 454 7.4L | ||
| 1998 | Chevrolet | C3500HD | V8 454 7.4L | ||
| 1998 | Chevrolet | Express 3500 | V8 454 7.4L | ||
| 1998 | Chevrolet | K2500 | V8 454 7.4L | ||
| 1998 | Chevrolet | K2500 Suburban | V8 454 7.4L | ||
| 1998 | Chevrolet | K3500 | V8 454 7.4L |
Product Specifications
| Baffled: | Yes |
|---|---|
| Capacity: | 7 qt |
| Color: | Black |
| Crank Shaft Wiper Included: | No |
| Dipstick Port: | Yes |
| Drain Plug Included: | Yes |
| Drain Thread Size: | M14x1.5 |
| Engine Oil Cooler Return Fitting: | No |
| Finish: | Painted |
| Gasket Or Seal Included: | No |
| Grade Type: | Standard Replacement |
| Installation Hardware Included: | No |
| Kick Out Type Pan: | No |
| Length: | 23.32 in |
| Material: | Steel |
| Maximum Depth: | 9.42 in |
| Maximum Width: | 10.22 in |
| Minimum Depth: | 9.6 in |
| Mounting Hole Quantity: | 20 |
| Oil Level Sensor Port: | No |
| Package Contents: | Oil Pan |
| Package Quantity: | 1 |
| Packaging Type: | Box |
| Pickup Included: | No |
| Pump Type: | Mechanical |
| Strap Included: | No |
| Sump Location: | Rear |
| Sump Type: | Wet |
| Windage Tray Included: | No |
OE Numbers
| DIRECT OE CROSS | |
|---|---|
| 10240721 | GENERAL MOTORS |
