Product Description

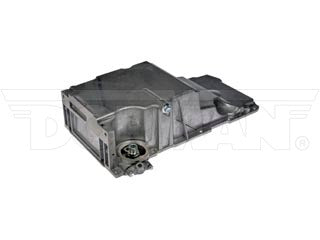

Oil pan leaking? This engine oil pan is precision-engineered to match the original equipment pan on specific vehicle years, makes and models for a reliable replacement.
- Direct replacement - this engine oil pan is made to match the original pan on specific vehicles
- Complete assembly - includes replacement pan and drain plugs to match original components
- Durable design - high-strength coating prevents future corrosion
- Trustworthy value - backed by team of engineers and quality control experts in the United States
Detailed Applications
| Year | Make | Model | Configuration | Positions | Application Notes |
|---|---|---|---|---|---|
| 2017 | Chevrolet | Caprice | V8 364 6.0L (5967cc) | ||
| 2017 | Chevrolet | SS | V8 376 6.2L (6162cc) | ||
| 2016 | Chevrolet | Caprice | V8 364 6.0L (5967cc) | ||
| 2016 | Chevrolet | SS | V8 376 6.2L (6162cc) | ||
| 2015 | Chevrolet | Camaro | V8 376 6.2L (6162cc) | ||
| 2015 | Chevrolet | Caprice | V8 364 6.0L (5967cc) | ||
| 2015 | Chevrolet | SS | V8 376 6.2L (6162cc) | ||
| 2014 | Chevrolet | Camaro | V8 376 6.2L (6162cc) | ||
| 2014 | Chevrolet | Caprice | V8 364 6.0L (5967cc) | ||
| 2014 | Chevrolet | SS | V8 376 6.2L (6162cc) | ||
| 2013 | Chevrolet | Camaro | V8 376 6.2L (6162cc) | ||
| 2013 | Chevrolet | Caprice | V8 364 6.0L (5967cc) | ||
| 2012 | Chevrolet | Camaro | V8 376 6.2L (6162cc) | ||
| 2012 | Chevrolet | Caprice | V8 364 6.0L (5967cc) | ||
| 2011 | Chevrolet | Camaro | V8 376 6.2L (6162cc) | ||
| 2011 | Chevrolet | Caprice | V8 364 6.0L (5967cc) | ||
| 2010 | Chevrolet | Camaro | V8 376 6.2L (6162cc) | ||
| 2009 | Pontiac | G8 | V8 364 6.0L (5967cc) | ||
| 2009 | Pontiac | G8 | V8 376 6.2L (6162cc) | ||
| 2008 | Pontiac | G8 | V8 364 6.0L (5967cc) |
Product Specifications
| Baffled: | Yes |
|---|---|
| Capacity: | 8 qt |
| Color: | Metallic Gray |
| Crank Shaft Wiper Included: | No |
| Dipstick Port: | No |
| Drain Plug Included: | Yes |
| Drain Thread Size: | M12 X 1.75 |
| Engine Oil Cooler Return Fitting: | No |
| Finish: | Natural |
| Gasket Or Seal Included: | Yes |
| Grade Type: | Standard Replacement |
| Installation Hardware Included: | Yes |
| Kick Out Type Pan: | Yes |
| Length: | 21.6 in |
| Material: | Aluminum |
| Maximum Depth: | 7 in |
| Maximum Width: | 11.82 in |
| Minimum Depth: | 6.562 in |
| Mounting Hole Quantity: | 15 |
| Oil Level Sensor Port: | Yes |
| Package Contents: | 1 Oil Pan |
| Package Quantity: | 1 |
| Packaging Type: | Box |
| Pickup Included: | No |
| Pump Type: | Hydraulic |
| Strap Included: | No |
| Sump Location: | Center |
| Sump Type: | Wet |
| Windage Tray Included: | Yes |
