Product Description

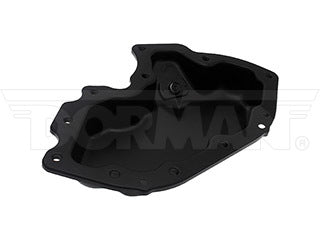

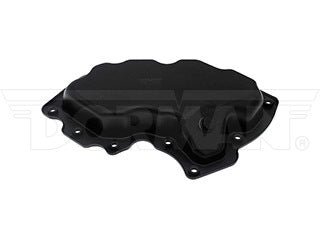

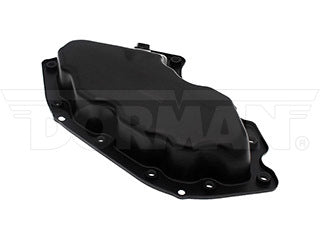

Oil pan leaking? This engine oil pan is precision-engineered to match the original equipment pan on specific vehicle years, makes and models for a reliable replacement.
- Direct replacement - this engine oil pan is made to match the original pan on specific vehicles

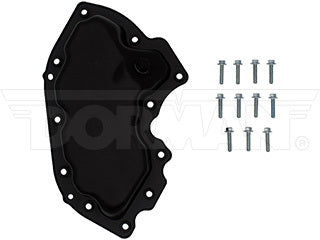

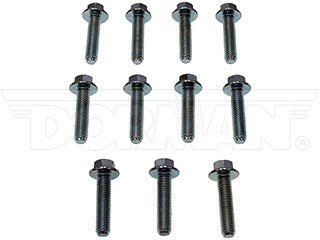

- Complete assembly - includes replacement pan and drain plugs to match original components
- Durable design - high-strength coating prevents future corrosion
- Trustworthy value - backed by team of engineers and quality control experts in the United States
Detailed Applications
| Year | Make | Model | Configuration | Positions | Application Notes |
|---|---|---|---|---|---|
| 2024 | Chevrolet | Equinox | 4WD; L4 91 1.5L (1490cc) | Lower | |
| 2024 | GMC | Terrain | 4WD; L4 91 1.5L (1490cc) | Lower | |
| 2023 | Chevrolet | Equinox | 4WD; L4 91 1.5L (1490cc) | Lower | |
| 2023 | GMC | Terrain | 4WD; L4 91 1.5L (1490cc) | Lower | |
| 2022 | Chevrolet | Equinox | 4WD; L4 91 1.5L (1490cc) | Lower | |
| 2022 | GMC | Terrain | 4WD; L4 91 1.5L (1490cc) | Lower | |
| 2021 | Chevrolet | Equinox | 4WD; L4 91 1.5L (1490cc) | Lower | |
| 2021 | GMC | Terrain | 4WD; L4 91 1.5L (1490cc) | Lower | |
| 2020 | Chevrolet | Equinox | 4WD; L4 91 1.5L (1490cc) | Lower | |
| 2020 | GMC | Terrain | 4WD; L4 91 1.5L (1490cc) | Lower | |
| 2019 | Chevrolet | Equinox | 4WD; L4 91 1.5L (1490cc) | Lower | |
| 2019 | GMC | Terrain | 4WD; L4 91 1.5L (1490cc) | Lower | |
| 2018 | Chevrolet | Equinox | 4WD; L4 91 1.5L (1490cc) | Lower | |
| 2018 | GMC | Terrain | 4WD; L4 91 1.5L (1490cc) | Lower |
Product Specifications
| Baffled: | No |
|---|---|
| Capacity: | 6.9 qt |
| Color: | Black |
| Crank Shaft Wiper Included: | No |
| Dipstick Port: | No |
| Drain Plug Included: | Yes |
| Drain Thread Size: | 25 mm |
| Engine Oil Cooler Return Fitting: | No |
| Finish: | Painted |
| Gasket Or Seal Included: | Yes |
| Installation Hardware Included: | No |
| Kick Out Type Pan: | No |
| Length: | 13 in |
| Material: | Aluminum |
| Maximum Depth: | 1 in |
| Maximum Width: | 8 in |
| Minimum Depth: | 1 in |
| Mounting Hole Quantity: | 12 |
| Oil Level Sensor Port: | No |
| Package Contents: | 1 Engine Oil Pan |
| Package Quantity: | 1 |
| Packaging Type: | Box |
| Pickup Included: | No |
| Pump Type: | Electric |
| Strap Included: | No |
| Sump Location: | Center |
| Sump Type: | Wet |
| Windage Tray Included: | Yes |
OE Numbers
| DIRECT OE CROSS | |
|---|---|
| 12650637 | GENERAL MOTORS |
