Product Description

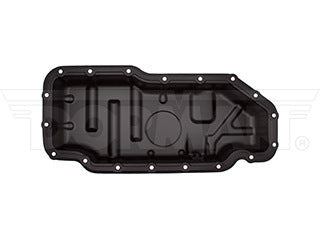

Oil pan leaking? This engine oil pan is precision-engineered to match the original equipment pan on specific vehicle years, makes and models for a reliable replacement.
- Direct replacement - this engine oil pan is made to match the original pan on specific vehicles
- Complete assembly - includes replacement pan and drain plugs to match original components
- Durable design - high-strength coating prevents future corrosion
- Trustworthy value - backed by team of engineers and quality control experts in the United States
Detailed Applications
| Year | Make | Model | Configuration | Positions | Application Notes |
|---|---|---|---|---|---|
| 2017 | Kia | K900 | V8 5.0L (5038cc) | Lower | |
| 2016 | Hyundai | Equus | V8 5.0L (5038cc) | Lower | |
| 2016 | Kia | K900 | V8 5.0L (5038cc) | Lower | |
| 2015 | Hyundai | Equus | V8 5.0L (5038cc) | Lower | |
| 2015 | Kia | K900 | V8 5.0L (5038cc) | Lower | |
| 2014 | Hyundai | Equus | V8 5.0L (5038cc) | Lower | |
| 2014 | Hyundai | Genesis | V8 5.0L (5038cc) | Lower | |
| 2013 | Hyundai | Equus | V8 5.0L (5038cc) | Lower | |
| 2013 | Hyundai | Genesis | V8 5.0L (5038cc) | Lower | |
| 2012 | Hyundai | Equus | V8 5.0L (5038cc) | Lower | |
| 2012 | Hyundai | Genesis | V8 4.6L (4627cc) | Lower | |
| 2012 | Hyundai | Genesis | V8 5.0L (5038cc) | Lower | |
| 2011 | Hyundai | Equus | V8 4.6L (4627cc) | Lower | |
| 2011 | Hyundai | Genesis | V8 4.6L (4627cc) | Lower | |
| 2010 | Hyundai | Genesis | V8 4.6L (4627cc) | Lower | |
| 2009 | Hyundai | Genesis | V8 4.6L (4627cc) | Lower | From 8/01/09 |
Product Specifications
| Baffled: | No |
|---|---|
| Color: | Black |
| Crank Shaft Wiper Included: | No |
| Dipstick Port: | No |
| Drain Plug Included: | Yes |
| Drain Thread Size: | M14x1.5 |
| Engine Oil Cooler Return Fitting: | No |
| Gasket Or Seal Included: | No |
| Installation Hardware Included: | No |
| Kick Out Type Pan: | No |
| Length: | 17.5 in |
| Material: | Steel |
| Maximum Depth: | 2.75 in |
| Maximum Width: | 8 in |
| Package Contents: | Oil Pan |
| Package Quantity: | 1 |
| Packaging Type: | Box |
| Pickup Included: | No |
| Sump Location: | Front |
| Sump Type: | Wet |
| Windage Tray Included: | No |
OE Numbers
| DIRECT OE CROSS | |
|---|---|
| 215103F000 | HYUNDAI |
