Product Description

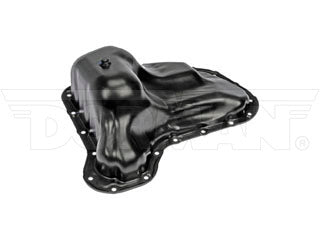

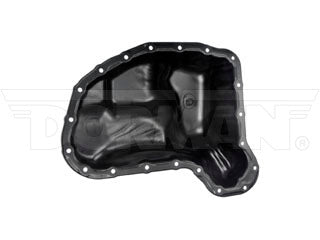

Oil pan leaking? This engine oil pan is precision-engineered to match the original equipment pan on specific vehicle years, makes and models for a reliable replacement.
- Direct replacement - this engine oil pan is made to match the original pan on specific vehicles
- Complete assembly - includes replacement pan and drain plugs to match original components
- Durable design - high-strength coating prevents future corrosion
- Trustworthy value - backed by team of engineers and quality control experts in the United States
Detailed Applications
| Year | Make | Model | Configuration | Positions | Application Notes |
|---|---|---|---|---|---|
| 2020 | Toyota | Tacoma | L4 2.7L (2694cc) | Lower | |
| 2019 | Toyota | Tacoma | L4 2.7L (2694cc) | Lower | |
| 2018 | Toyota | Tacoma | L4 2.7L (2694cc) | Lower | |
| 2017 | Toyota | Tacoma | L4 2.7L (2694cc) | Lower | |
| 2016 | Toyota | Tacoma | L4 2.7L (2694cc) | Lower | |
| 2015 | Toyota | Tacoma | L4 2.7L (2694cc) | Lower | |
| 2014 | Toyota | Tacoma | L4 2.7L (2694cc) | Lower | |
| 2013 | Toyota | Tacoma | L4 2.7L (2694cc) | Lower | |
| 2012 | Toyota | Tacoma | L4 2.7L (2694cc) | Lower | |
| 2011 | Toyota | Tacoma | L4 2.7L (2694cc) | Lower | |
| 2010 | Toyota | 4Runner | L4 2.7L (2694cc) | Lower | |
| 2010 | Toyota | Tacoma | L4 2.7L (2694cc) | Lower | |
| 2009 | Toyota | Tacoma | L4 2.7L (2694cc) | Lower | |
| 2008 | Toyota | Tacoma | L4 2.7L (2694cc) | Lower | |
| 2007 | Toyota | Tacoma | L4 2.7L (2694cc) | Lower | |
| 2006 | Toyota | Tacoma | L4 2.7L (2694cc) | Lower | |
| 2005 | Toyota | Tacoma | L4 2.7L (2694cc) | Lower |
Product Specifications
| Baffled: | No |
|---|---|
| Capacity: | 5.5 qt |
| Color: | Black |
| Crank Shaft Wiper Included: | No |
| Dipstick Port: | No |
| Drain Plug Included: | Yes |
| Drain Thread Size: | M12 X 1.25 |
| Engine Oil Cooler Return Fitting: | No |
| Gasket Or Seal Included: | No |
| Installation Hardware Included: | No |
| Kick Out Type Pan: | No |
| Length: | 16 in |
| Material: | Steel |
| Maximum Depth: | 4.5 in |
| Maximum Width: | 12.4 in |
| Package Contents: | Oil Pan |
| Package Quantity: | 1 |
| Packaging Type: | Box |
| Pickup Included: | No |
| Sump Location: | Front |
| Sump Type: | Wet |
| Windage Tray Included: | No |
OE Numbers
| DIRECT OE CROSS | |
|---|---|
| 1210275021 | TOYOTA |
