Product Description

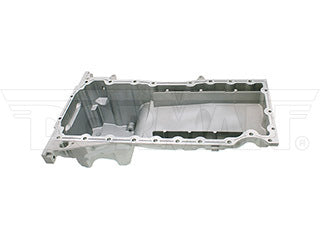

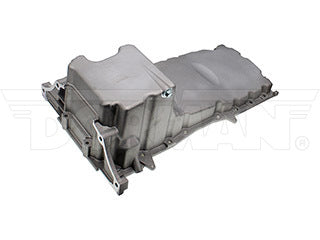

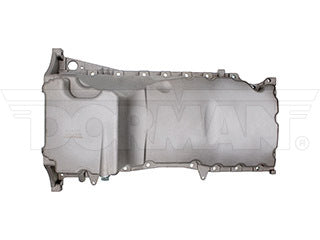

Oil pan leaking? This engine oil pan is precision-engineered to match the original equipment pan on specific vehicle years, makes and models for a reliable replacement.
- Direct replacement - this engine oil pan is made to match the original pan on specific vehicles
- Complete assembly - includes replacement pan and drain plugs to match original components
- Durable design - high-strength coating prevents future corrosion
- Trustworthy value - backed by team of engineers and quality control experts in the United States
Detailed Applications
| Year | Make | Model | Configuration | Positions | Application Notes |
|---|---|---|---|---|---|
| 2012 | Chevrolet | Colorado | 4WD; L5 223 3.7L (3654cc) | ||
| 2012 | GMC | Canyon | 4WD; L5 223 3.7L (3654cc) | ||
| 2011 | Chevrolet | Colorado | 4WD; L5 223 3.7L (3654cc) | ||
| 2011 | GMC | Canyon | 4WD; L5 223 3.7L (3654cc) | ||
| 2010 | Chevrolet | Colorado | 4WD; L5 223 3.7L (3654cc) | ||
| 2010 | GMC | Canyon | 4WD; L5 223 3.7L (3654cc) | ||
| 2010 | Hummer | H3 | L5 223 3.7L (3654cc) | ||
| 2010 | Hummer | H3T | L5 223 3.7L (3654cc) | ||
| 2009 | Chevrolet | Colorado | 4WD; L5 223 3.7L (3654cc) | ||
| 2009 | GMC | Canyon | 4WD; L5 223 3.7L (3654cc) | ||
| 2009 | Hummer | H3 | L5 223 3.7L (3654cc) | ||
| 2009 | Hummer | H3T | L5 223 3.7L (3654cc) | ||
| 2008 | Chevrolet | Colorado | 4WD; L5 223 3.7L (3654cc) | ||
| 2008 | GMC | Canyon | 4WD; L5 223 3.7L (3654cc) | ||
| 2008 | Hummer | H3 | L5 223 3.7L (3654cc) | ||
| 2007 | Chevrolet | Colorado | 4WD; L5 223 3.7L (3654cc) | ||
| 2007 | GMC | Canyon | 4WD; L5 223 3.7L (3654cc) | ||
| 2007 | Hummer | H3 | L5 223 3.7L (3654cc) | ||
| 2006 | Chevrolet | Colorado | 4WD; L5 211 3.5L (3460cc) | ||
| 2006 | GMC | Canyon | 4WD; L5 211 3.5L (3460cc) | ||
| 2006 | Hummer | H3 | L5 211 3.5L (3460cc) | ||
| 2005 | Chevrolet | Colorado | 4WD; L5 211 3.5L (3460cc) | ||
| 2005 | GMC | Canyon | 4WD; L5 211 3.5L (3460cc) | ||
| 2004 | Chevrolet | Colorado | 4WD; L5 211 3.5L (3460cc) | ||
| 2004 | GMC | Canyon | 4WD; L5 211 3.5L (3460cc) |
Product Specifications
| Baffled: | Yes |
|---|---|
| Capacity: | 6 qt |
| Color: | Metallic Gray |
| Crank Shaft Wiper Included: | No |
| Dipstick Port: | No |
| Drain Plug Included: | Yes |
| Drain Thread Size: | M12 X 1.75 |
| Engine Oil Cooler Return Fitting: | No |
| Gasket Or Seal Included: | No |
| Installation Hardware Included: | Yes |
| Kick Out Type Pan: | No |
| Length: | 24.12 in |
| Material: | Aluminum |
| Maximum Depth: | 7.187 in |
| Maximum Width: | 14.75 in |
| Minimum Depth: | 7.687 in |
| Oil Level Sensor Port: | Yes |
| Package Contents: | Oil Pan |
| Package Quantity: | 1 |
| Packaging Type: | Box |
| Pickup Included: | No |
| Pump Type: | Hydraulic |
| Sump Location: | Front |
| Sump Type: | Wet |
| Windage Tray Included: | Yes |
OE Numbers
| DIRECT OE CROSS | |
|---|---|
| 12589080 | GENERAL MOTORS |
| 12594282 | GENERAL MOTORS |
| 12600497 | GENERAL MOTORS |
