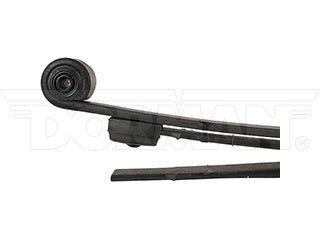

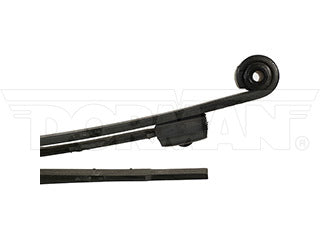

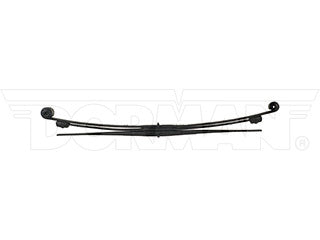

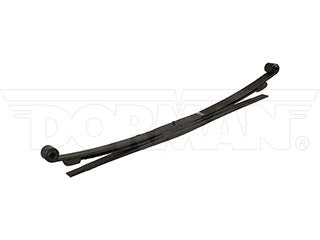

Dorman 46-1485 Suspension - Leaf Spring
Regular price
$0.00
Couldn't load pickup availability
Product Description
Properly functioning leaf springs hold the weight and payload of a vehicle or trailer and are essential to suspension performance and passenger comfort. Check the product attributes to select the right leaf spring for your application.
- Direct replacement - these leaf springs are designed to match the fit and function of the original leaf springs on specific vehicles or trailers
- Ideal solution - seamlessly replaces leaf springs damaged by overloading, collision, cracking or corrosion, or are due for replacement
- Durable construction - made from quality materials to strict specifications to ensure reliable performance and long service life
- Trustworthy quality - engineered, manufactured and supported by the premier aftermarket leaf spring provider in the USA
Detailed Applications
| Year | Make | Model | Configuration | Positions | Application Notes |
|---|---|---|---|---|---|
| 2018 | Freightliner | Sprinter 2500 | Rear | 3 Leaf; 2.75 In. Pack Thickness; Full Taper; Two Stage; 3.625 In. Free Arch | |
| 2018 | Freightliner | Sprinter 3500 | Rear | 3 Leaf; 2.75 In. Pack Thickness; Full Taper; Two Stage; 3.625 In. Free Arch | |
| 2018 | Mercedes-Benz | Sprinter 2500 | Rear | 3 Leaf; 2.75 In. Pack Thickness; Full Taper; Two Stage; 3.625 In. Free Arch | |
| 2018 | Mercedes-Benz | Sprinter 3500 | Rear | 3 Leaf; 2.75 In. Pack Thickness; Full Taper; Two Stage; 3.625 In. Free Arch | |
| 2017 | Freightliner | Sprinter 2500 | Rear | 3 Leaf; 2.75 In. Pack Thickness; Full Taper; Two Stage; 3.625 In. Free Arch | |
| 2017 | Freightliner | Sprinter 3500 | Rear | 3 Leaf; 2.75 In. Pack Thickness; Full Taper; Two Stage; 3.625 In. Free Arch | |
| 2017 | Mercedes-Benz | Sprinter 2500 | Rear | 3 Leaf; 2.75 In. Pack Thickness; Full Taper; Two Stage; 3.625 In. Free Arch | |
| 2017 | Mercedes-Benz | Sprinter 3500 | Rear | 3 Leaf; 2.75 In. Pack Thickness; Full Taper; Two Stage; 3.625 In. Free Arch | |
| 2016 | Freightliner | Sprinter 2500 | Rear | 3 Leaf; 2.75 In. Pack Thickness; Full Taper; Two Stage; 3.625 In. Free Arch | |
| 2016 | Freightliner | Sprinter 3500 | Rear | 3 Leaf; 2.75 In. Pack Thickness; Full Taper; Two Stage; 3.625 In. Free Arch | |
| 2016 | Mercedes-Benz | Sprinter 2500 | Rear | 3 Leaf; 2.75 In. Pack Thickness; Full Taper; Two Stage; 3.625 In. Free Arch | |
| 2016 | Mercedes-Benz | Sprinter 3500 | Rear | 3 Leaf; 2.75 In. Pack Thickness; Full Taper; Two Stage; 3.625 In. Free Arch | |
| 2015 | Freightliner | Sprinter 2500 | Rear | 3 Leaf; 2.75 In. Pack Thickness; Full Taper; Two Stage; 3.625 In. Free Arch | |
| 2015 | Freightliner | Sprinter 3500 | Rear | 3 Leaf; 2.75 In. Pack Thickness; Full Taper; Two Stage; 3.625 In. Free Arch | |
| 2015 | Mercedes-Benz | Sprinter 2500 | Rear | 3 Leaf; 2.75 In. Pack Thickness; Full Taper; Two Stage; 3.625 In. Free Arch | |
| 2015 | Mercedes-Benz | Sprinter 3500 | Rear | 3 Leaf; 2.75 In. Pack Thickness; Full Taper; Two Stage; 3.625 In. Free Arch | |
| 2014 | Freightliner | Sprinter 2500 | Rear | 3 Leaf; 2.75 In. Pack Thickness; Full Taper; Two Stage; 3.625 In. Free Arch | |
| 2014 | Freightliner | Sprinter 3500 | Rear | 3 Leaf; 2.75 In. Pack Thickness; Full Taper; Two Stage; 3.625 In. Free Arch | |
| 2014 | Mercedes-Benz | Sprinter 2500 | Rear | 3 Leaf; 2.75 In. Pack Thickness; Full Taper; Two Stage; 3.625 In. Free Arch | |
| 2014 | Mercedes-Benz | Sprinter 3500 | Rear | 3 Leaf; 2.75 In. Pack Thickness; Full Taper; Two Stage; 3.625 In. Free Arch | |
| 2013 | Freightliner | Sprinter 2500 | Rear | 3 Leaf; 2.75 In. Pack Thickness; Full Taper; Two Stage; 3.625 In. Free Arch | |
| 2013 | Freightliner | Sprinter 3500 | Rear | 3 Leaf; 2.75 In. Pack Thickness; Full Taper; Two Stage; 3.625 In. Free Arch | |
| 2013 | Mercedes-Benz | Sprinter 2500 | Rear | 3 Leaf; 2.75 In. Pack Thickness; Full Taper; Two Stage; 3.625 In. Free Arch | |
| 2013 | Mercedes-Benz | Sprinter 3500 | Rear | 3 Leaf; 2.75 In. Pack Thickness; Full Taper; Two Stage; 3.625 In. Free Arch | |
| 2012 | Freightliner | Sprinter 2500 | Rear | 3 Leaf; 2.75 In. Pack Thickness; Full Taper; Two Stage; 3.625 In. Free Arch | |
| 2012 | Freightliner | Sprinter 3500 | Rear | 3 Leaf; 2.75 In. Pack Thickness; Full Taper; Two Stage; 3.625 In. Free Arch | |
| 2012 | Mercedes-Benz | Sprinter 2500 | Rear | 3 Leaf; 2.75 In. Pack Thickness; Full Taper; Two Stage; 3.625 In. Free Arch | |
| 2012 | Mercedes-Benz | Sprinter 3500 | Rear | 3 Leaf; 2.75 In. Pack Thickness; Full Taper; Two Stage; 3.625 In. Free Arch | |
| 2011 | Freightliner | Sprinter 2500 | Rear | 3 Leaf; 2.75 In. Pack Thickness; Full Taper; Two Stage; 3.625 In. Free Arch | |
| 2011 | Freightliner | Sprinter 3500 | Rear | 3 Leaf; 2.75 In. Pack Thickness; Full Taper; Two Stage; 3.625 In. Free Arch | |
| 2011 | Mercedes-Benz | Sprinter 2500 | Rear | 3 Leaf; 2.75 In. Pack Thickness; Full Taper; Two Stage; 3.625 In. Free Arch | |
| 2011 | Mercedes-Benz | Sprinter 3500 | Rear | 3 Leaf; 2.75 In. Pack Thickness; Full Taper; Two Stage; 3.625 In. Free Arch | |
| 2010 | Freightliner | Sprinter 2500 | Rear | 3 Leaf; 2.75 In. Pack Thickness; Full Taper; Two Stage; 3.625 In. Free Arch | |
| 2010 | Freightliner | Sprinter 3500 | Rear | 3 Leaf; 2.75 In. Pack Thickness; Full Taper; Two Stage; 3.625 In. Free Arch | |
| 2010 | Mercedes-Benz | Sprinter 2500 | Rear | 3 Leaf; 2.75 In. Pack Thickness; Full Taper; Two Stage; 3.625 In. Free Arch | |
| 2010 | Mercedes-Benz | Sprinter 3500 | Rear | 3 Leaf; 2.75 In. Pack Thickness; Full Taper; Two Stage; 3.625 In. Free Arch | |
| 2009 | Dodge | Sprinter 2500 | Rear | 3 Leaf; 2.75 In. Pack Thickness; Full Taper; Two Stage; 3.625 In. Free Arch | |
| 2009 | Dodge | Sprinter 3500 | Rear | 3 Leaf; 2.75 In. Pack Thickness; Full Taper; Two Stage; 3.625 In. Free Arch | |
| 2009 | Freightliner | Sprinter 2500 | Rear | 3 Leaf; 2.75 In. Pack Thickness; Full Taper; Two Stage; 3.625 In. Free Arch | |
| 2009 | Freightliner | Sprinter 3500 | Rear | 3 Leaf; 2.75 In. Pack Thickness; Full Taper; Two Stage; 3.625 In. Free Arch | |
| 2008 | Dodge | Sprinter 2500 | Rear | 3 Leaf; 2.75 In. Pack Thickness; Full Taper; Two Stage; 3.625 In. Free Arch | |
| 2008 | Dodge | Sprinter 3500 | Rear | 3 Leaf; 2.75 In. Pack Thickness; Full Taper; Two Stage; 3.625 In. Free Arch | |
| 2008 | Freightliner | Sprinter 2500 | Rear | 3 Leaf; 2.75 In. Pack Thickness; Full Taper; Two Stage; 3.625 In. Free Arch | |
| 2008 | Freightliner | Sprinter 3500 | Rear | 3 Leaf; 2.75 In. Pack Thickness; Full Taper; Two Stage; 3.625 In. Free Arch | |
| 2007 | Dodge | Sprinter 2500 | Rear | 3 Leaf; 2.75 In. Pack Thickness; Full Taper; Two Stage; 3.625 In. Free Arch | |
| 2007 | Dodge | Sprinter 3500 | Rear | 3 Leaf; 2.75 In. Pack Thickness; Full Taper; Two Stage; 3.625 In. Free Arch | |
| 2007 | Freightliner | Sprinter 2500 | Rear | 3 Leaf; 2.75 In. Pack Thickness; Full Taper; Two Stage; 3.625 In. Free Arch | |
| 2007 | Freightliner | Sprinter 3500 | Rear | 3 Leaf; 2.75 In. Pack Thickness; Full Taper; Two Stage; 3.625 In. Free Arch |
Product Specifications
| Axle Modification Needed: | No |
|---|---|
| Axle Orientation: | Rear |
| Bushing Color: | Black |
| Bushings Included: | Yes |
| Color: | Black |
| End 1 Attachment Type: | Up Turned Eye |
| End 2 Attachment Type: | Up Turned Eye |
| Helper Spring: | No |
| Leaf Quantity: | 3 |
| Leaf Spring Arch Length: | 3.625 in |
| Leaf Width: | 2.75 in |
| Length Axis 1: | 29.125 in |
| Length Axis 2: | 29.625 in |
| Length B: | 29.5 in |
| Load Rate: | 5000 lb |
| Material: | Steel |
| Mounting Hardware Included: | No |
| Pack Thickness: | 2.756 in |
| Package Contents: | 1 Leaf Spring |
| Package Quantity: | 1 |
| Packaging Type: | Box |
| Spring Arch Length: | 3.625 in |
| Spring Research Institute Number: | 46-1485 |
| Suspension Grade Type: | Standard |
OE Numbers
| DIRECT OE CROSS | |
|---|---|
| 9063205006 | FREIGHTLINER |
| 9063205006 | MERCEDES-BENZ |
| 906320880664 | FREIGHTLINER |
| A9063205006 | FREIGHTLINER |
| A9063205006 | MERCEDES-BENZ |
