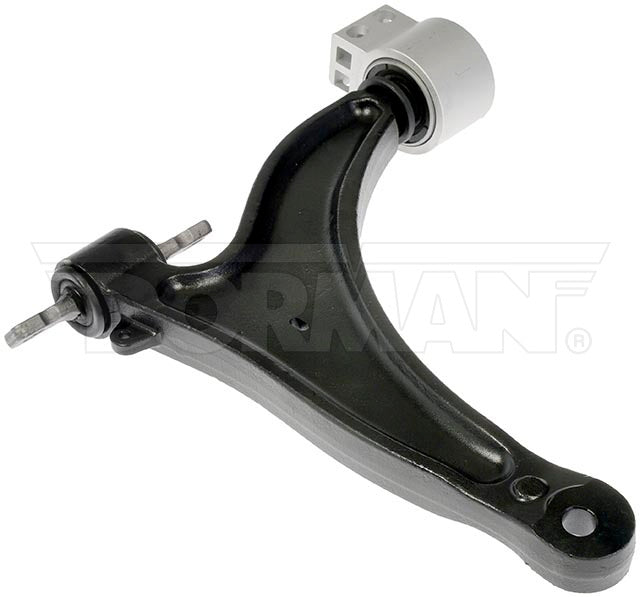

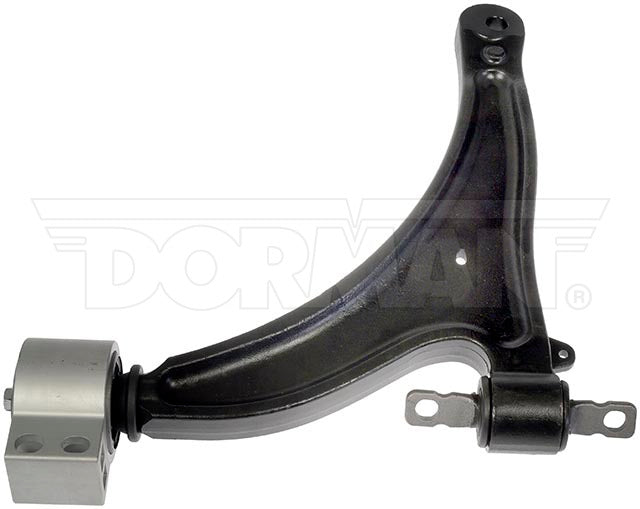

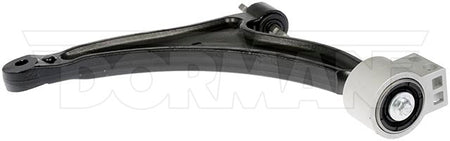

Dorman 520-078 Front Right Lower Suspension Control Arm 13-19 Cadillac XTS
Confirm Fitment Before You Buy
Not sure it fits? Message Year/Make/Model/Engine (2WD/4WD if applicable) and we’ll help confirm compatibility.
Why buy from Koskowski Automotive?
• 50+ years (since 1972) • Dorman Authorized Seller • Fast shipping • Easy returns
Regular price
$145.44
Select your vehicle at the top of the page to check fitment.
Couldn't load pickup availability
Vehicle Fitment: Use the table below to match your exact configuration. If you don’t see your exact setup, message us before ordering.
This suspension control arm is designed to match the performance of an original equipment arm on specified vehicle makes, models and years. When a control arm fails from routine wear or is damaged by collision impact, this replacement is engineered to help restore the connection from the vehicle frame to the wheel hub or steering knuckle.
- Direct replacement - this suspension control arm is designed to match the performance of an original equipment control arm on specified vehicle makes, models and years
- Ideal solution - engineered to help restore the connection from the vehicle frame to the wheel hub or steering knuckle
- Durable construction - designed and manufactured to strict specifications for reliable performance
- Trustworthy quality - backed by a team of product experts in the United States and more than a century of automotive experience
Vehicle Fitment
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2013-2019 | Cadillac | XTS | Front Right Lower | w/6 Lug Wheels |
Please confirm the part number and your vehicle's year, make, model and engine before ordering. Questions? Message us with your VIN and we'll check fitment for you.
Specifications
| Brand | Dorman |
|---|---|
| Part Number | 520-078 |
| UPC | 889245577740 |
| Placement | Front, Right, Lower |
| Length | 300.5 mm |
| Color | Black |
| Width | 300.5 mm |
| Mounting Hardware Included | No |
| Height | 342 mm |
| Shape | Bent |
| Adjustable | No |
| Bushing Material | Rubber |
| Bushing Inside Diameter | 14 mm; 12 mm; 13 mm |
| Bushing Length | 59.9 mm; 123 mm |
| Bushing Color | Black |
| Construction | Casting/Forged |
| Finish | E-Coated |
| Pre-Greased | No |
| Castle Nut Included | No |
| Grease Fitting Included | No |
| Bushings Included | Yes |
| Ball Joint Mounting Type | Press In |
| Control Arm Material | Steel |
| Cotter Pin Included | No |
| Grade Type | Standard Replacement |
| Greaseable | No |
| Control Arm Maximum Length | 300.5 mm |
| Distance Between Mounting Holes | 300.5 mm |
| Distance Between Bushings | 300.5 mm |
| Attachment Type | Press In |
| Attachments Included | Yes |
| Ball Joint Included | No |
| Ball Joint Installed | No |
| Bushing Outside Diameter | 106.07 mm; 45.6 mm |
| Control Arm Type | Casting/Forged |
| End 2 Type | Bushing |
| Package Contents | 1 Control Arm |
| Required Quantity | 1 |
| Country of Origin | China |
| Warranty | Limited Lifetime |
OE & Interchange Numbers
| 22779072 | General Motors (OE) |
|---|---|
| GS501258 | Interchange |
| 5CB50617 | Interchange |
| 2608792 | Interchange |
| CMS501258 | Interchange |
| CA13064 | Interchange |
