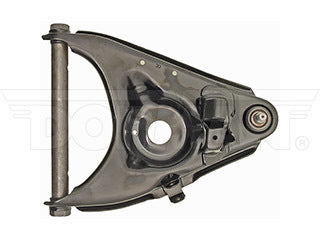

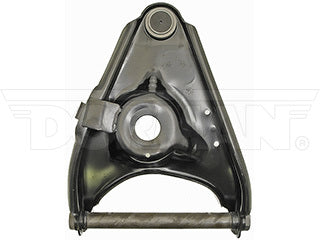

Dorman 520-114 Suspension - Control Arm and Ball Joint Assembly
Confirm Fitment Before You Buy
Not sure it fits? Message Year/Make/Model/Engine (2WD/4WD if applicable) and we’ll help confirm compatibility.
Why buy from Koskowski Automotive?
• 50+ years (since 1972) • Dorman Authorized Seller • Fast shipping • Easy returns
Regular price
$114.62
Couldn't load pickup availability
Vehicle Fitment: Use the table below to match your exact configuration. If you don’t see your exact setup, message us before ordering.
Product Description
This suspension control arm and ball joint assembly is a direct replacement for the original equipment on specific vehicle applications. An industry-leading evaluation process ensures a smooth ride, directional stability and predictable dynamics.
- Trustworthy replacement - this control arm and ball joint assembly directly replaces the original assembly on specific vehicle applications
- Complete repair - each assembly includes pre-installed ball joint and bushings, saving time and labor
- Quality engineering - underwent industry-leading testing to ensure a smooth, stable and safe ride
- Durably designed - additional coatings offer long-lasting rust and corrosion resistance
Detailed Applications
| Year | Make | Model | Configuration | Positions | Application Notes |
|---|---|---|---|---|---|
| 2002 | Chevrolet | P30 (Mexico) | Rear Drum Brakes | Front Right Lower | wo/Heavy Duty Suspension |
| 2001 | Chevrolet | P30 (Mexico) | Rear Drum Brakes | Front Right Lower | wo/Heavy Duty Suspension |
| 1999 | Chevrolet | P30 | Rear Drum Brakes | Front Right Lower | w/Single Rear Wheel (SRW); wo/Heavy Duty Suspension; wo/Motorhome Chassis |
| 1999 | GMC | P3500 | Rear Drum Brakes | Front Right Lower | w/Single Rear Wheel (SRW); wo/Heavy Duty Suspension; wo/Motorhome Chassis |
| 1998 | Chevrolet | P30 | Rear Drum Brakes | Front Right Lower | w/Single Rear Wheel (SRW); wo/Heavy Duty Suspension; wo/Motorhome Chassis |
| 1998 | GMC | P3500 | Rear Drum Brakes | Front Right Lower | w/Single Rear Wheel (SRW); wo/Heavy Duty Suspension; wo/Motorhome Chassis |
| 1997 | Chevrolet | P30 | Rear Drum Brakes | Front Right Lower | w/Single Rear Wheel (SRW); wo/Heavy Duty Suspension; wo/Motorhome Chassis |
| 1997 | GMC | P3500 | Rear Drum Brakes | Front Right Lower | w/Single Rear Wheel (SRW); wo/Heavy Duty Suspension; wo/Motorhome Chassis |
| 1996 | Chevrolet | P30 | Rear Drum Brakes | Front Right Lower | w/Single Rear Wheel (SRW); wo/Heavy Duty Suspension; wo/Motorhome Chassis |
| 1996 | GMC | P3500 | Rear Drum Brakes | Front Right Lower | w/Single Rear Wheel (SRW); wo/Heavy Duty Suspension; wo/Motorhome Chassis |
| 1995 | Chevrolet | P30 | Rear Drum Brakes | Front Right Lower | w/Single Rear Wheel (SRW); wo/Heavy Duty Suspension; wo/Motorhome Chassis |
| 1995 | GMC | P3500 | Rear Drum Brakes | Front Right Lower | w/Single Rear Wheel (SRW); wo/Heavy Duty Suspension; wo/Motorhome Chassis |
| 1994 | Chevrolet | P30 | Rear Drum Brakes | Front Right Lower | w/Single Rear Wheel (SRW); wo/Heavy Duty Suspension; wo/Motorhome Chassis |
| 1994 | GMC | P3500 | Rear Drum Brakes | Front Right Lower | w/Single Rear Wheel (SRW); wo/Heavy Duty Suspension; wo/Motorhome Chassis |
| 1993 | Chevrolet | P30 | Rear Drum Brakes | Front Right Lower | w/Single Rear Wheel (SRW); wo/Heavy Duty Suspension; wo/Motorhome Chassis |
| 1993 | GMC | P3500 | Rear Drum Brakes | Front Right Lower | w/Single Rear Wheel (SRW); wo/Heavy Duty Suspension; wo/Motorhome Chassis |
| 1992 | Chevrolet | P30 | Rear Drum Brakes | Front Right Lower | w/Single Rear Wheel (SRW); wo/Heavy Duty Suspension; wo/Motorhome Chassis |
| 1992 | GMC | P3500 | Rear Drum Brakes | Front Right Lower | w/Single Rear Wheel (SRW); wo/Heavy Duty Suspension; wo/Motorhome Chassis |
| 1991 | Chevrolet | P30 | Rear Drum Brakes | Front Right Lower | w/Single Rear Wheel (SRW); wo/Heavy Duty Suspension; wo/Motorhome Chassis |
| 1991 | Chevrolet | R2500 Suburban | Front Right Lower | wo/Heavy Duty Suspension | |
| 1991 | Chevrolet | R3500 | Front Right Lower | wo/Heavy Duty Suspension | |
| 1991 | GMC | P3500 | Rear Drum Brakes | Front Right Lower | w/Single Rear Wheel (SRW); wo/Heavy Duty Suspension; wo/Motorhome Chassis |
| 1991 | GMC | R2500 Suburban | Front Right Lower | wo/Heavy Duty Suspension | |
| 1991 | GMC | R3500 | Front Right Lower | wo/Heavy Duty Suspension | |
| 1990 | Chevrolet | P30 | Rear Drum Brakes | Front Right Lower | w/Single Rear Wheel (SRW); wo/Heavy Duty Suspension; wo/Motorhome Chassis |
| 1990 | Chevrolet | R2500 Suburban | Front Right Lower | wo/Heavy Duty Suspension | |
| 1990 | Chevrolet | R3500 | Front Right Lower | wo/Heavy Duty Suspension | |
| 1990 | GMC | P3500 | Rear Drum Brakes | Front Right Lower | w/Single Rear Wheel (SRW); wo/Heavy Duty Suspension; wo/Motorhome Chassis |
| 1990 | GMC | R2500 Suburban | Front Right Lower | wo/Heavy Duty Suspension | |
| 1990 | GMC | R3500 | Front Right Lower | wo/Heavy Duty Suspension | |
| 1989 | Chevrolet | P20 | Front Right Lower | w/Independent Front Suspension; wo/Heavy Duty Suspension | |
| 1989 | Chevrolet | P30 | Rear Drum Brakes | Front Right Lower | w/Single Rear Wheel (SRW); wo/Heavy Duty Suspension; wo/Motorhome Chassis |
| 1989 | Chevrolet | R2500 | Front Right Lower | wo/Heavy Duty Suspension | |
| 1989 | Chevrolet | R2500 Suburban | Front Right Lower | wo/Heavy Duty Suspension | |
| 1989 | Chevrolet | R3500 | Front Right Lower | wo/Heavy Duty Suspension | |
| 1989 | GMC | P2500 | Front Right Lower | wo/Heavy Duty Suspension | |
| 1989 | GMC | P3500 | Rear Drum Brakes | Front Right Lower | w/Single Rear Wheel (SRW); wo/Heavy Duty Suspension; wo/Motorhome Chassis |
| 1989 | GMC | R2500 | Front Right Lower | wo/Heavy Duty Suspension | |
| 1989 | GMC | R2500 Suburban | Front Right Lower | wo/Heavy Duty Suspension | |
| 1989 | GMC | R3500 | Front Right Lower | wo/Heavy Duty Suspension | |
| 1988 | Chevrolet | P20 | Front Right Lower | w/Independent Front Suspension; wo/Heavy Duty Suspension | |
| 1988 | Chevrolet | P30 | Rear Drum Brakes | Front Right Lower | w/Single Rear Wheel (SRW); wo/Heavy Duty Suspension; wo/Motorhome Chassis |
| 1988 | Chevrolet | R20 | Front Right Lower | wo/Heavy Duty Suspension | |
| 1988 | Chevrolet | R20 Suburban | Front Right Lower | wo/Heavy Duty Suspension | |
| 1988 | Chevrolet | R30 | Front Right Lower | wo/Heavy Duty Suspension | |
| 1988 | GMC | P2500 | Front Right Lower | wo/Heavy Duty Suspension | |
| 1988 | GMC | P3500 | Rear Drum Brakes | Front Right Lower | w/Single Rear Wheel (SRW); wo/Heavy Duty Suspension; wo/Motorhome Chassis |
| 1988 | GMC | R2500 | Front Right Lower | wo/Heavy Duty Suspension | |
| 1988 | GMC | R2500 Suburban | Front Right Lower | wo/Heavy Duty Suspension | |
| 1988 | GMC | R3500 | Front Right Lower | wo/Heavy Duty Suspension |
Product Specifications
| Adjustable: | No |
|---|---|
| Ball Joint Included: | Yes |
| Ball Joint Installed: | Yes |
| Ball Joint Stud Type: | Threaded |
| Ball Joint Thread Diameter: | 14 mm |
| Bushing Material: | Rubber |
| Bushings Included: | Yes |
| Control Arm Color: | Black |
| Control Arm Material: | Steel |
| Control Arm Maximum Length: | 237 mm |
| Control Arm Maximum Width: | 288.5 mm |
| Control Arm Type: | Casting/Forged |
| Grade Type: | Standard |
| Grease Fitting Included: | No |
| Mounting Hardware Included: | Yes |
| Mounting Hole Diameter: | 12.3 mm |
| Mounting Hole Quantity: | 1 |
| Package Contents: | Control Arm and Ball Joint Assembly |
| Package Quantity: | 1 |
| Packaging Type: | Box |
OE Numbers
| DIRECT OE CROSS | |
|---|---|
| 14026582 | GENERAL MOTORS |
| 15984950 | GENERAL MOTORS |
