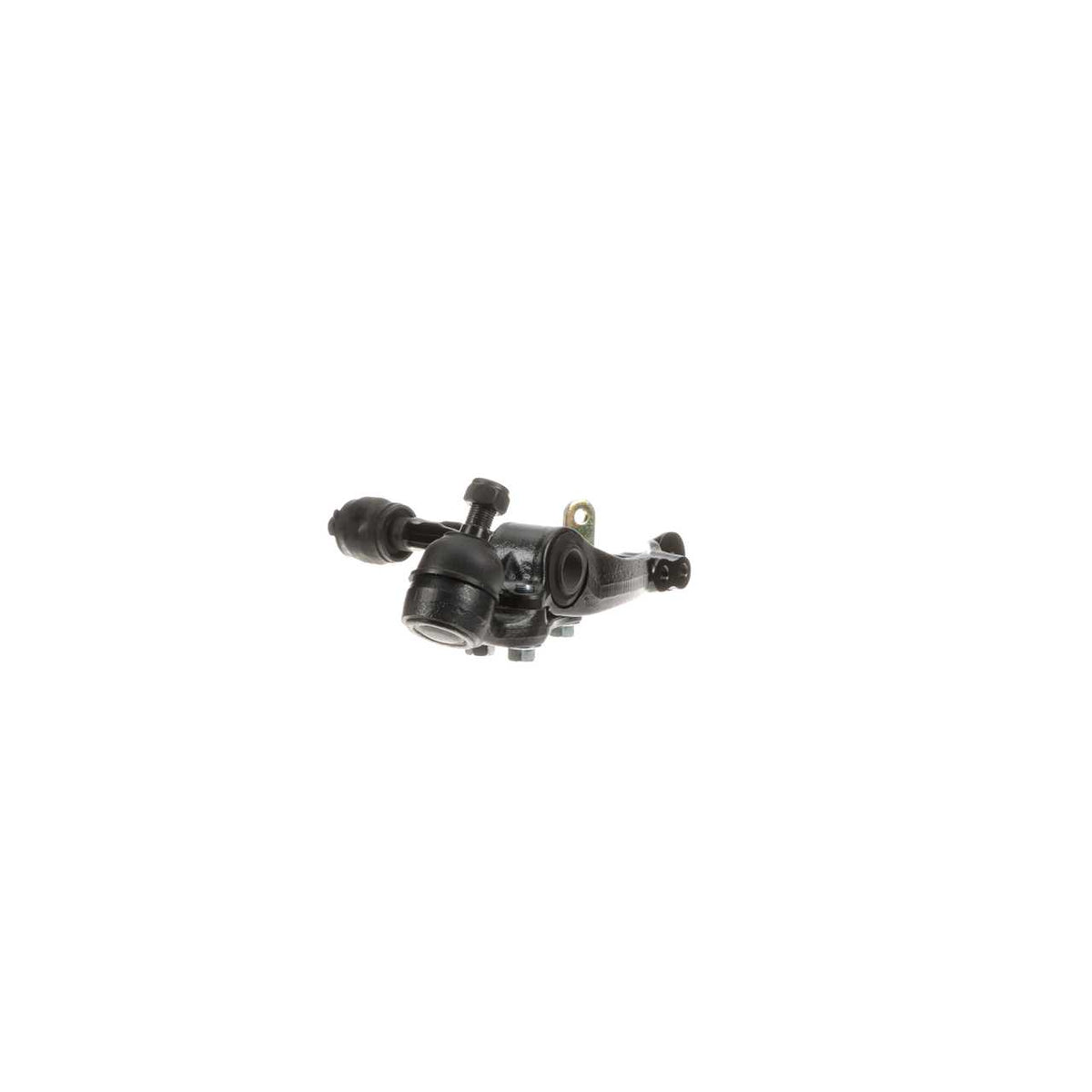

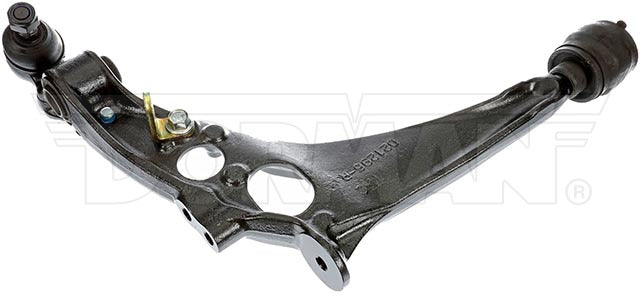

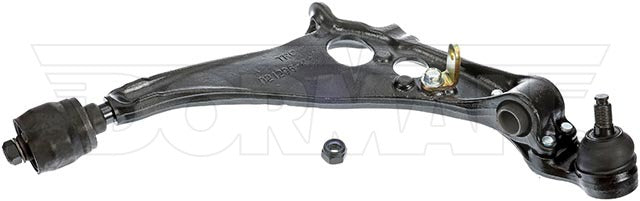

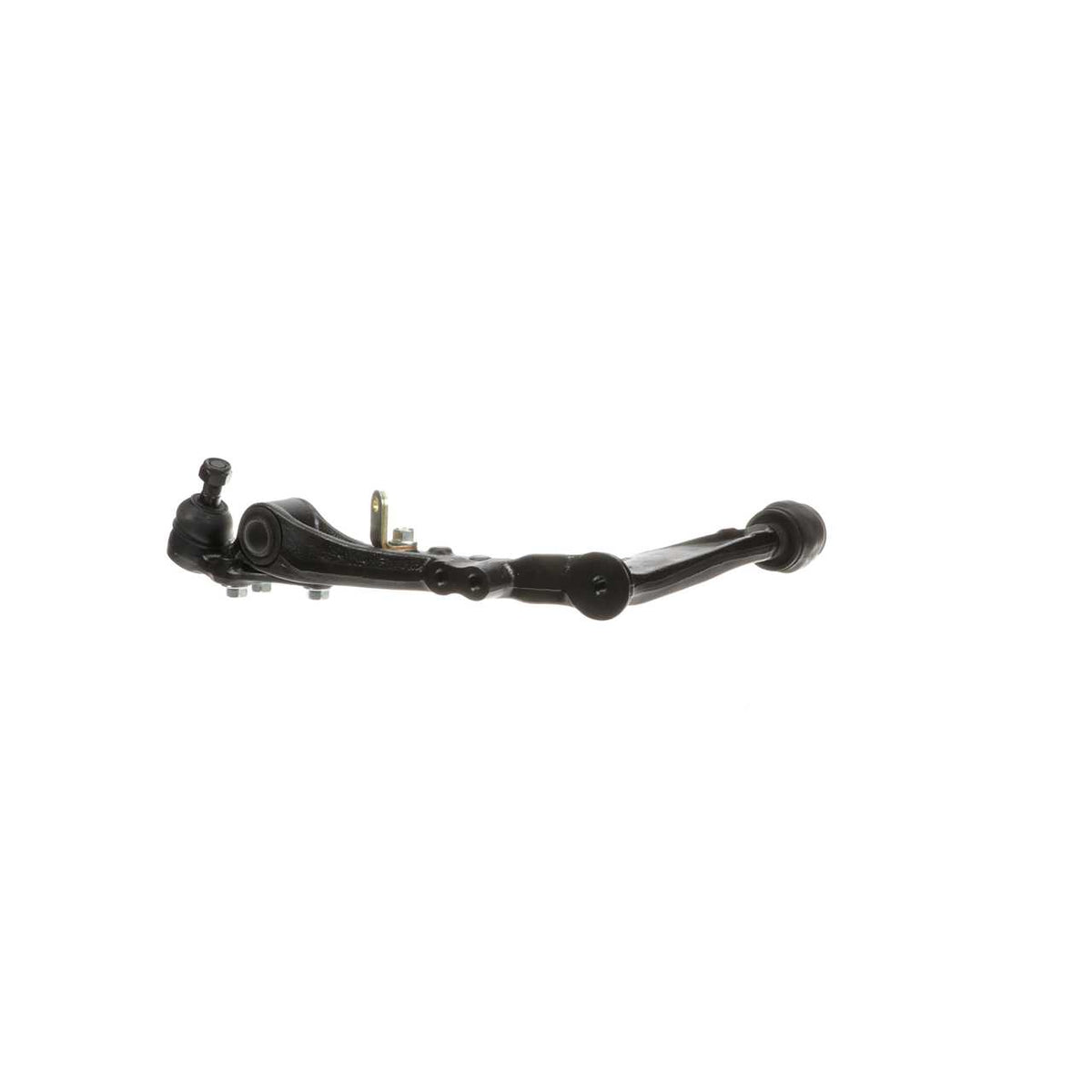

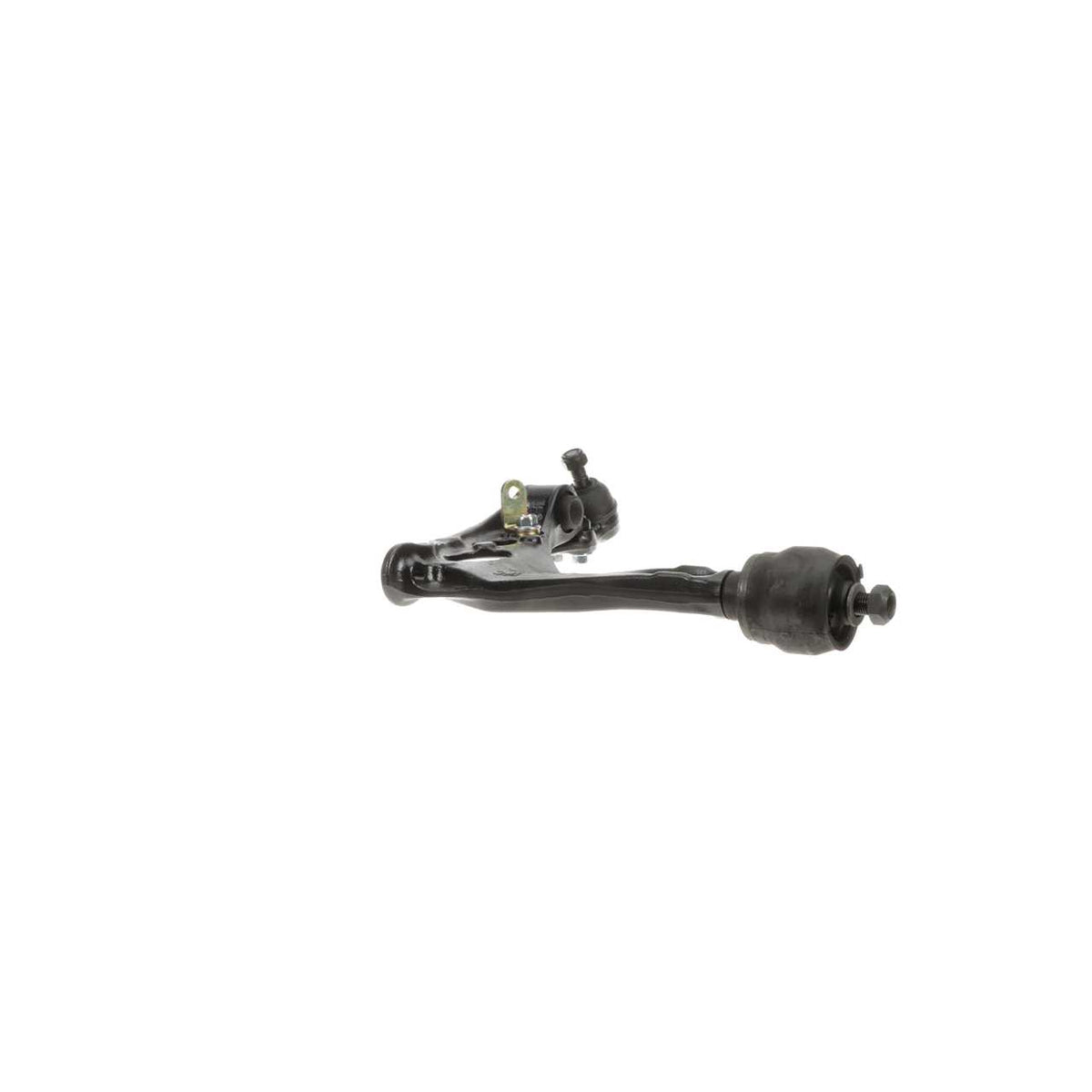

Dorman 520-828 Front Right Lower Control Arm w/ Ball Joint 95-02 Mazda Millenia
Confirm Fitment Before You Buy
Not sure it fits? Message Year/Make/Model/Engine (2WD/4WD if applicable) and we’ll help confirm compatibility.
Why buy from Koskowski Automotive?
• 50+ years (since 1972) • Dorman Authorized Seller • Fast shipping • Easy returns
Regular price
$156.74
Select your vehicle at the top of the page to check fitment.
Couldn't load pickup availability
Vehicle Fitment: Use the table below to match your exact configuration. If you don’t see your exact setup, message us before ordering.
This suspension control arm and ball joint assembly is a direct replacement for the original equipment on specific vehicle applications. An industry-leading evaluation process ensures a smooth ride, directional stability and predictable dynamics.
- Trustworthy replacement - this control arm and ball joint assembly directly replaces the original assembly on specific vehicle applications
- Complete repair - each assembly includes pre-installed ball joint and bushings, saving time and labor
- Quality engineering - underwent industry-leading testing to ensure a smooth, stable and safe ride
- Durably designed - additional coatings offer long-lasting rust and corrosion resistance
Vehicle Fitment
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 1995-2002 | Mazda | Millenia | Front Right Lower |
Please confirm the part number and your vehicle's year, make, model and engine before ordering. Questions? Message us with your VIN and we'll check fitment for you.
Specifications
| Brand | Dorman |
|---|---|
| Part Number | 520-828 |
| UPC | 019495114291 |
| Placement | Front, Right, Lower |
| Length | 262.5 mm |
| Mounting Hardware Included | Yes |
| Adjustable | No |
| Bushing Material | Rubber |
| Bushing Inside Diameter | 14.3 mm |
| Bushing Length | 92 mm |
| Bushing Color | Black |
| Finish | Powder Coated |
| Mounting Hole Quantity | 1 |
| Mounting Hole Diameter | 12.3 mm |
| Grease Fitting Included | No |
| Bushings Included | Yes |
| Ball Joint Mounting Type | Bolt In |
| Ball Joint Stud Type | Threaded |
| Ball Joint Included | Yes |
| Control Arm Construction | Casting/Forged |
| Control Arm Material | Steel |
| Grade Type | Standard Replacement |
| Control Arm Maximum Width | 288.5 mm |
| Control Arm Color | Black |
| Control Arm Maximum Length | 237 mm |
| Ball Joint Installed | Yes |
| Ball Joint Thread Diameter | 14 mm |
| Control Arm Type | Casting/Forged |
| Package Contents | Control Arm and Ball Joint Assembly |
| Country of Origin | Taiwan |
| Warranty | Limited Lifetime |
OE & Interchange Numbers
| TA0434300F | Mazda (OE) |
|---|---|
| T00134300D | Mazda (OE) |
| T00134300A | Mazda (OE) |
| T00134550B | Mazda (OE) |
| T00134300B | Mazda (OE) |
| TA0434300E | Mazda (OE) |
| TC6275 | Interchange |
| 2607763 | Interchange |
| CMS76121 | Interchange |
| 5CB76110 | Interchange |
| 102-4569 | Interchange |
| CA12585 | Interchange |
