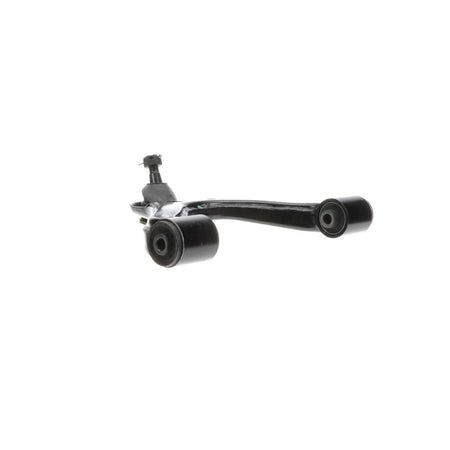

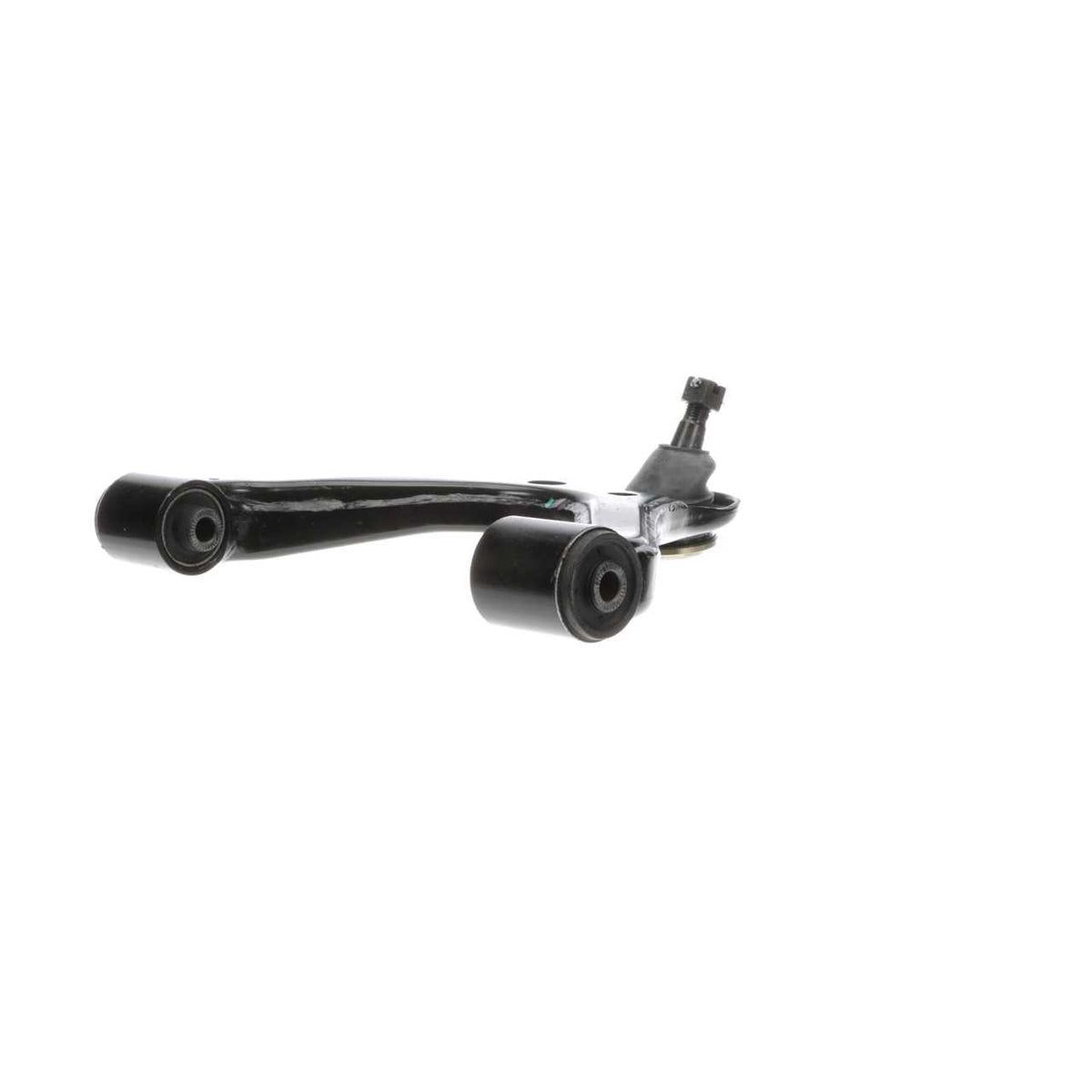

Dorman 522-003 Front Left Upper Control Arm w/ Ball Joint 05-15 Toyota Tacoma
Confirm Fitment Before You Buy
Not sure it fits? Message Year/Make/Model/Engine (2WD/4WD if applicable) and we’ll help confirm compatibility.
Why buy from Koskowski Automotive?
• 50+ years (since 1972) • Dorman Authorized Seller • Fast shipping • Easy returns
Regular price
$75.61
Select your vehicle at the top of the page to check fitment.
Couldn't load pickup availability
Vehicle Fitment: Use the table below to match your exact configuration. If you don’t see your exact setup, message us before ordering.
This suspension control arm and ball joint assembly is a direct replacement for the original equipment on specific vehicle applications. An industry-leading evaluation process ensures a smooth ride, directional stability and predictable dynamics.
- Trustworthy replacement - this control arm and ball joint assembly directly replaces the original assembly on specific vehicle applications
- Complete repair - each assembly includes pre-installed ball joint and bushings, saving time and labor
- Quality engineering - underwent industry-leading testing to ensure a smooth, stable and safe ride
- Durably designed - additional coatings offer long-lasting rust and corrosion resistance
Vehicle Fitment
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2006-2015 | Toyota | Hilux | Front Left Upper | wo/Off Road TRD PreRunner Suspension; RWD |
| 2005-2015 | Toyota | Tacoma | Front Left Upper | RWD |
Please confirm the part number and your vehicle's year, make, model and engine before ordering. Questions? Message us with your VIN and we'll check fitment for you.
Specifications
| Brand | Dorman |
|---|---|
| Part Number | 522-003 |
| UPC | 885484493056 |
| Placement | Front, Left, Upper |
| Mounting Hardware Included | Yes |
| Adjustable | No |
| Bushing Material | Rubber |
| Mounting Hole Quantity | 1 |
| Mounting Hole Diameter | 12.4 mm |
| Pre-Greased | Yes |
| Grease Fitting Included | No |
| Bushings Included | Yes |
| Ball Joint Stud Type | Threaded |
| Ball Joint Included | Yes |
| Control Arm Construction | Boxed |
| Control Arm Material | Steel |
| Grade Type | Standard Replacement |
| Control Arm Maximum Width | 288.5 mm |
| Control Arm Color | Black |
| Ball Joint Stud Length | 31.47 mm |
| Control Arm Maximum Length | 237 mm |
| Ball Joint Installed | Yes |
| Ball Joint Thread Diameter | 14 mm |
| Control Arm Type | Casting/Forged |
| Package Contents | Suspension Control Arm and Ball Joint Assembly |
| Country of Origin | China |
| Warranty | Limited Lifetime |
OE & Interchange Numbers
| 4863004010 | Toyota (OE) |
|---|---|
| 486300K010 | Toyota (OE) |
| RK622291 | Interchange |
| CMS861044 | Interchange |
| 3CB86247 | Interchange |
| 2608182 | Interchange |
| GS861044 | Interchange |
| 102-6453 | Interchange |
| X50CJ0605 | Interchange |
| 622.44077 | Interchange |
| 1525045 | Interchange |
| CA8746 | Interchange |
| TC6674 | Interchange |
