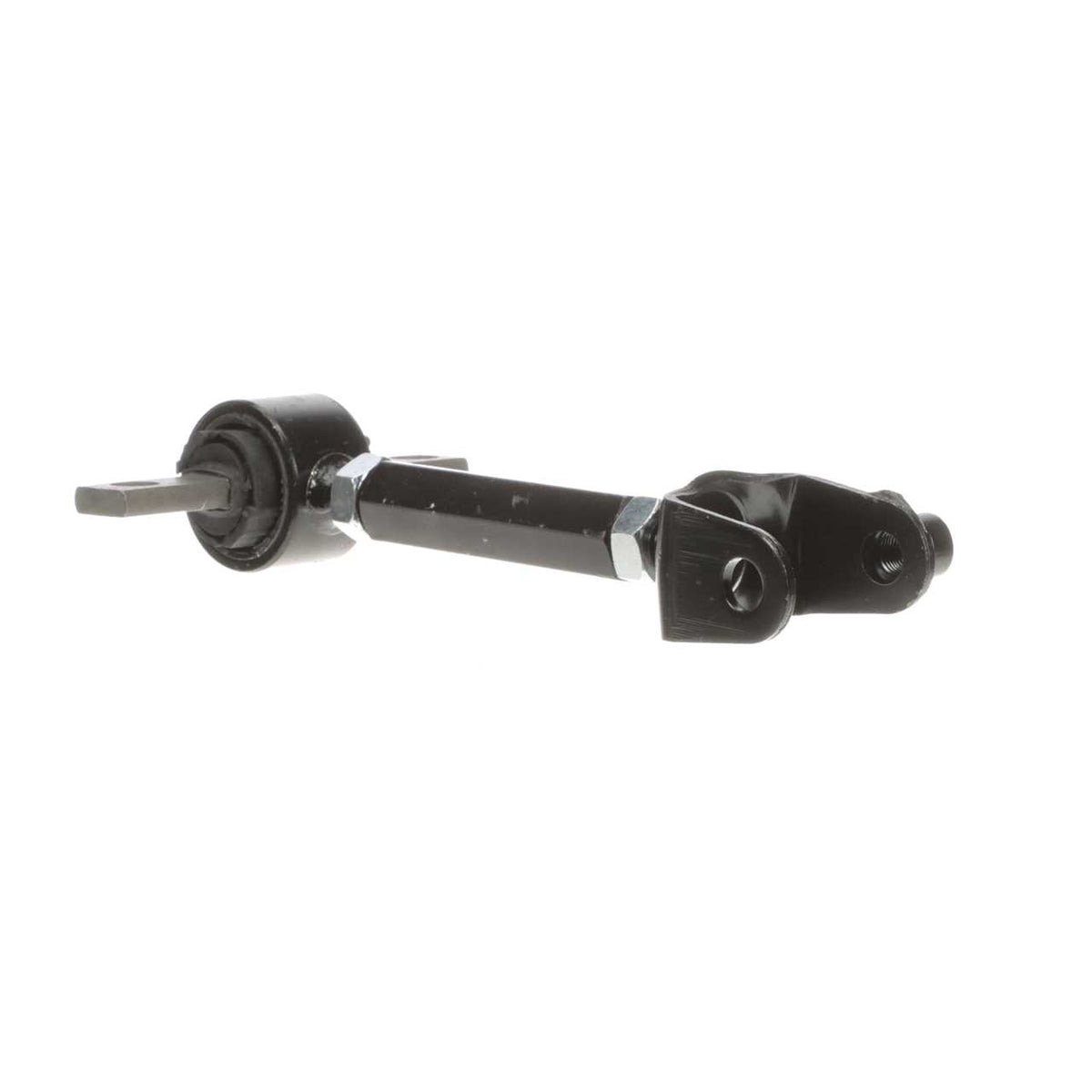

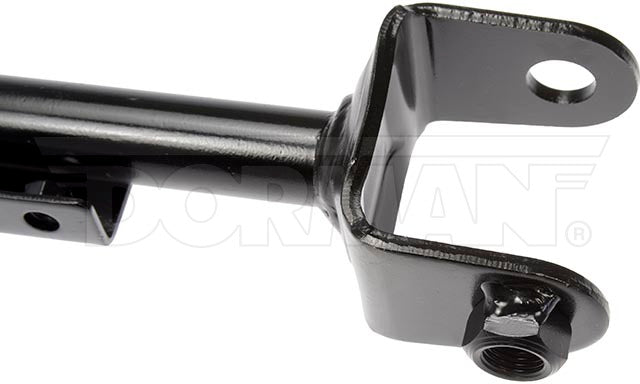

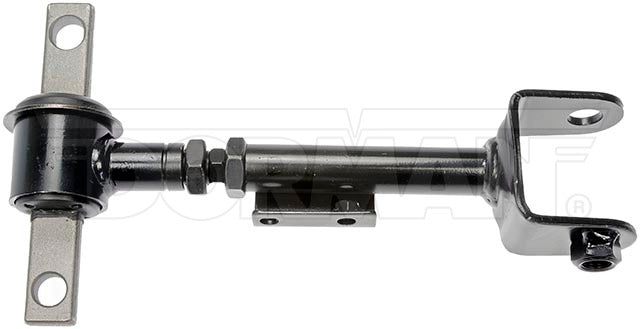

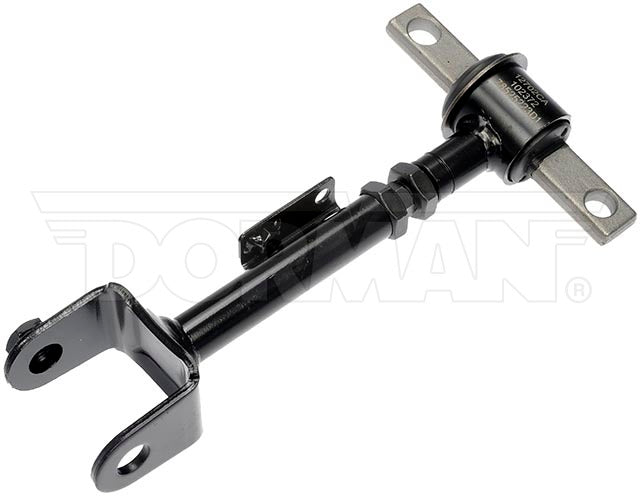

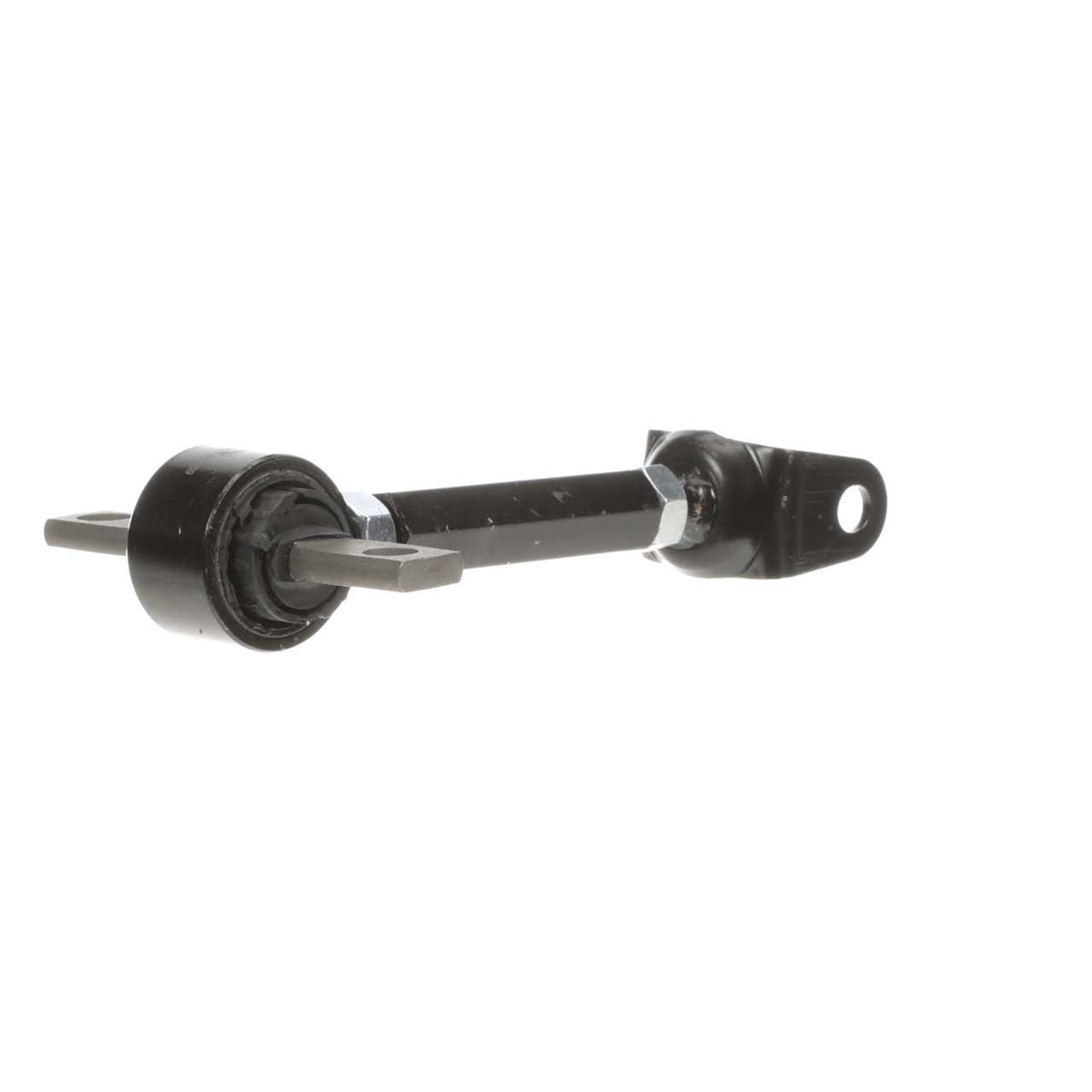

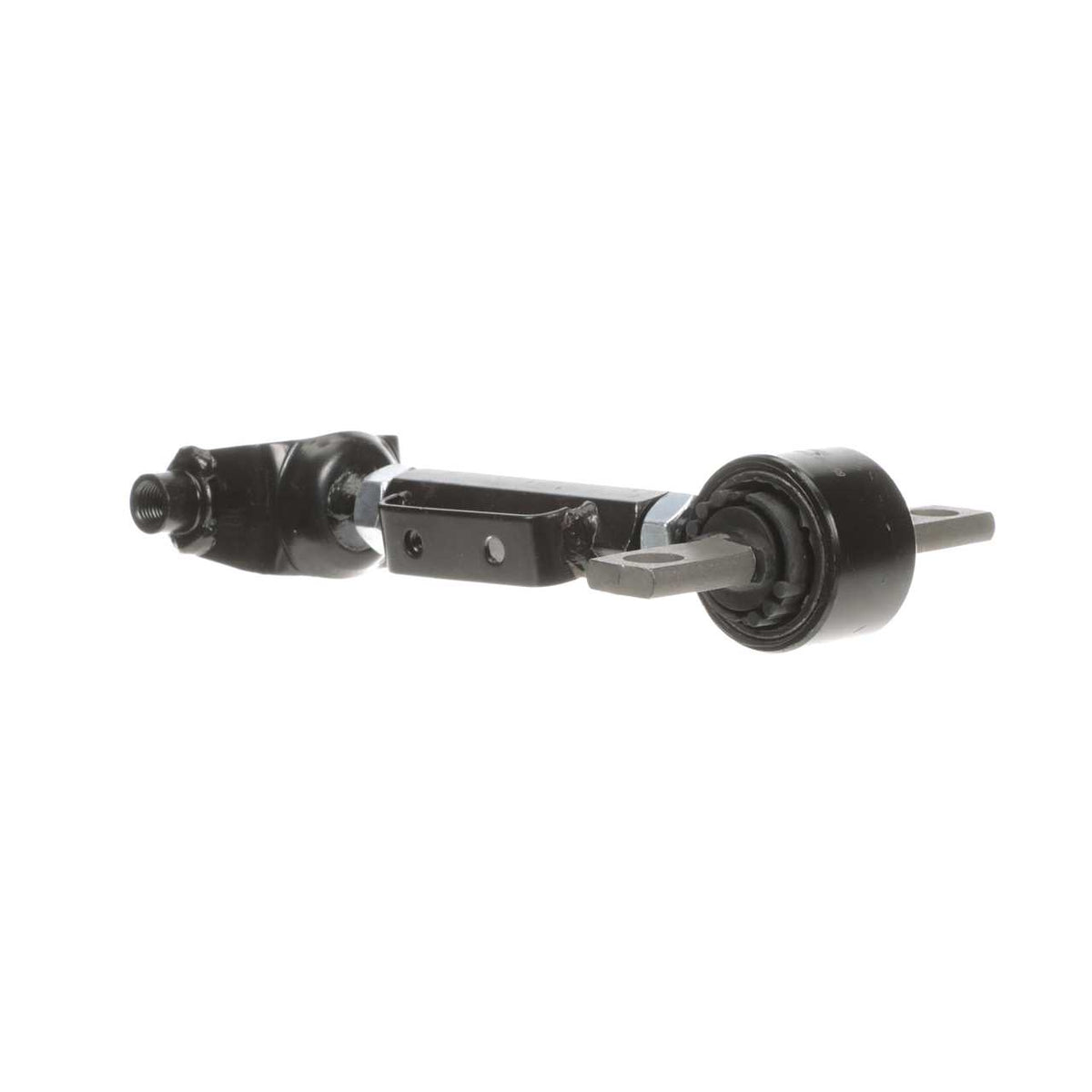

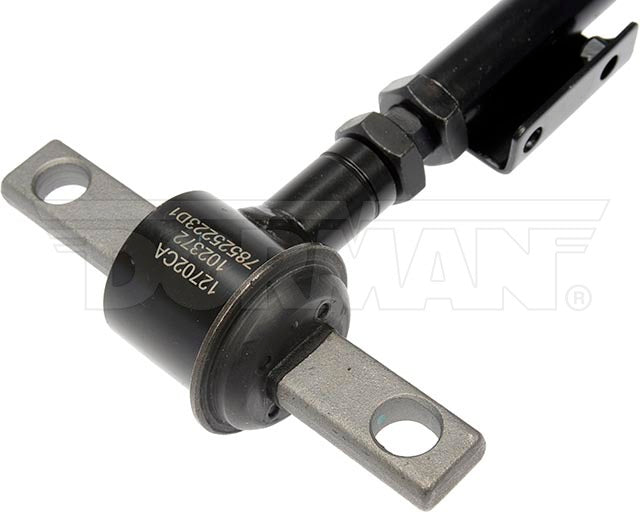

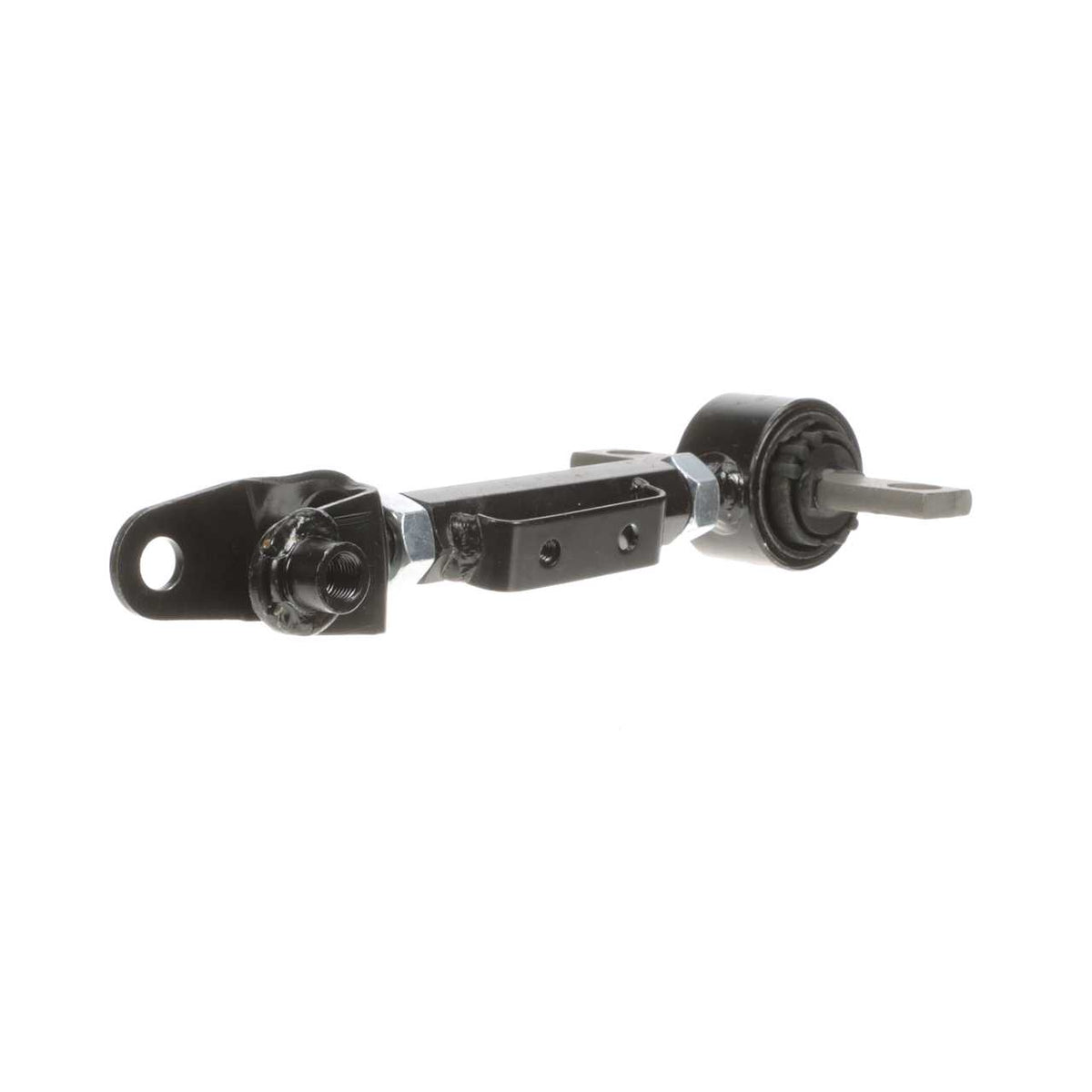

Dorman 522-642 Rear Upper Alignment Camber Lateral Link 01-06 Honda Civic
Confirm Fitment Before You Buy
Not sure it fits? Message Year/Make/Model/Engine (2WD/4WD if applicable) and we’ll help confirm compatibility.
Why buy from Koskowski Automotive?
• 50+ years (since 1972) • Dorman Authorized Seller • Fast shipping • Easy returns
Regular price
$62.95
Select your vehicle at the top of the page to check fitment.
Couldn't load pickup availability
Vehicle Fitment: Use the table below to match your exact configuration. If you don’t see your exact setup, message us before ordering.
This lateral arm is precision-engineered and rigorously tested to provide reliable replacement for the original equipment on specific vehicles.
- Direct replacement - fits and performs like the original equipment on specific vehicles
- Reliable fit - precision-engineered to match the design and dimensions of original components
- Durable construction - manufactured to strict standards using sturdy, safe materials
- Rigorously tested - thorough quality control measures ensure longevity
Vehicle Fitment
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2001-2005 | Acura | EL | Rear Left Upper | Adjustable Design; Adjusts Camber -4.00 Degrees to +6.00 Degrees |
| 2001-2005 | Acura | EL | Rear Right Upper | Adjustable Design; Adjusts Camber -4.00 Degrees to +6.00 Degrees |
| 2002-2006 | Acura | RSX | Rear Left Upper | Adjustable Design; Adjusts Camber -4.00 Degrees to +6.00 Degrees |
| 2002-2006 | Acura | RSX | Rear Right Upper | Adjustable Design; Adjusts Camber -4.00 Degrees to +6.00 Degrees |
| 2001-2005 | Honda | Civic | Rear Left Upper/Rear Right Upper | Adjustable Design; Adjusts Camber -4.00 Degrees to +6.00 Degrees |
Please confirm the part number and your vehicle's year, make, model and engine before ordering. Questions? Message us with your VIN and we'll check fitment for you.
Specifications
| Brand | Dorman |
|---|---|
| Part Number | 522-642 |
| UPC | 019495904724 |
| Placement | Rear, Left, Right, Upper |
| Material | Steel |
| Length | 222.5 mm |
| Color | Black |
| Adjustable | Yes |
| Bushing Material | Rubber |
| Bushing Color | Black |
| Mounting Hole Diameter | 13 mm |
| End 1 Type | Bushing |
| End 2 Type | Mounting Hole |
| Mount Stud Quantity | 0 |
| Pre-Greased | No |
| Bushings Included | Yes |
| Ball Joint Included | No |
| Grade Type | Standard Replacement |
| Attachment Type | Mounting Hole |
| Ball Joint Installed | No |
| Control Arm Type | Tubular |
| Package Contents | 1 Control Arm |
| Country of Origin | Taiwan |
| Warranty | Limited Lifetime |
OE & Interchange Numbers
| 52390S5D810 | Honda (OE) |
|---|---|
| 52390S5D010 | Honda (OE) |
| 52390S5D800 | Honda (OE) |
| 52390S5D901 | Honda (OE) |
| 52390S5AA01 | Honda (OE) |
| RK641886 | Interchange |
| CMS601191 | Interchange |
| 6CB60381 | Interchange |
| CA4853 | Interchange |
| RK90351 | Interchange |
| 1509066 | Interchange |
| TC5847 | Interchange |
| GS601191 | Interchange |
| 67230 | Interchange |
| 46-2180 | Interchange |
