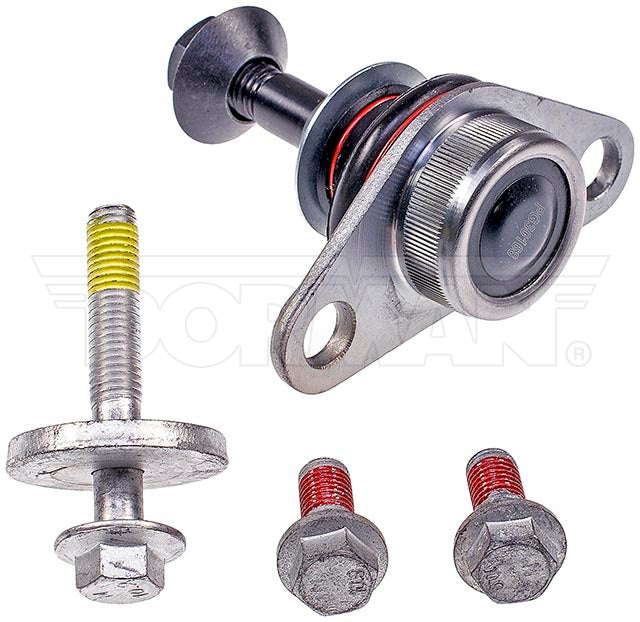

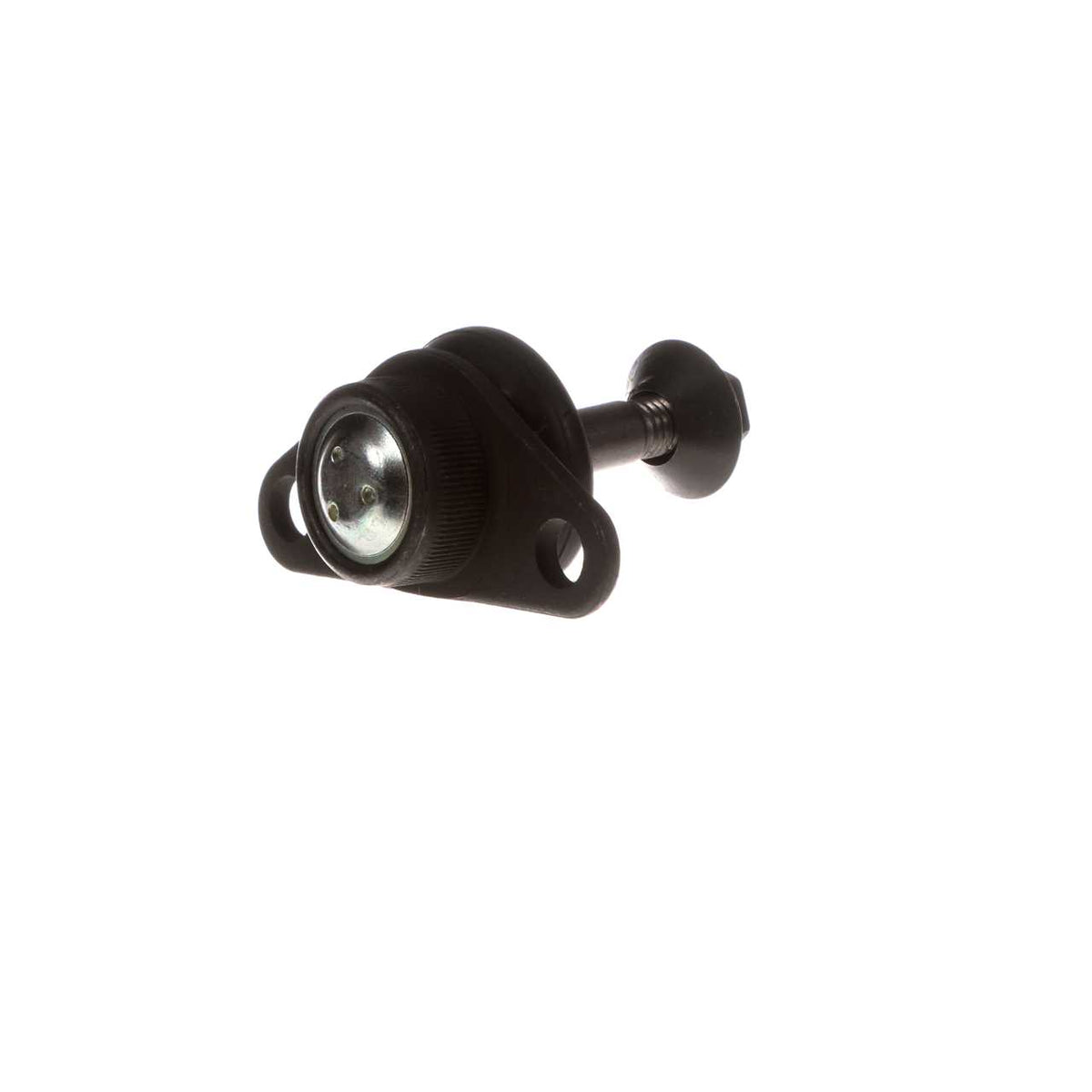

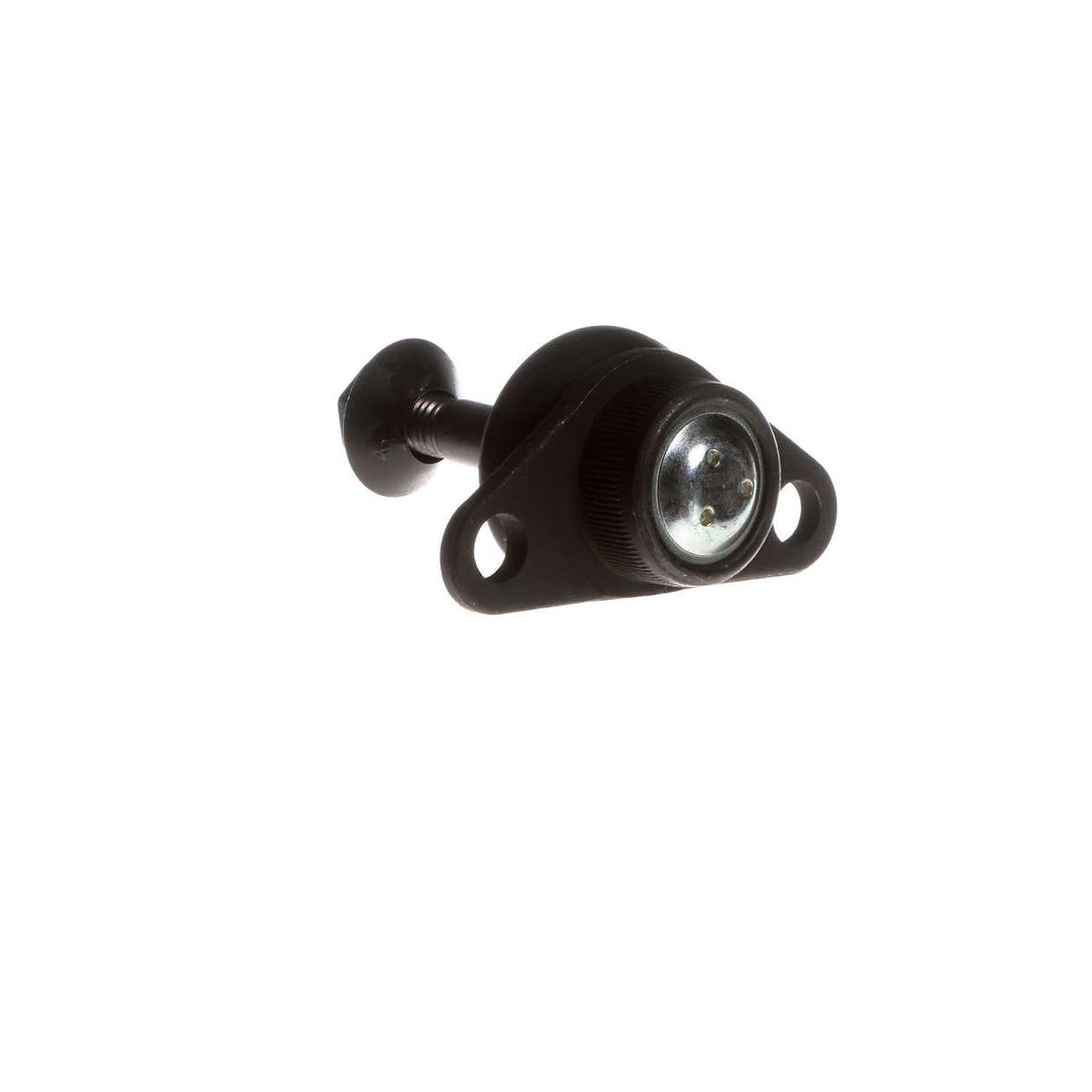

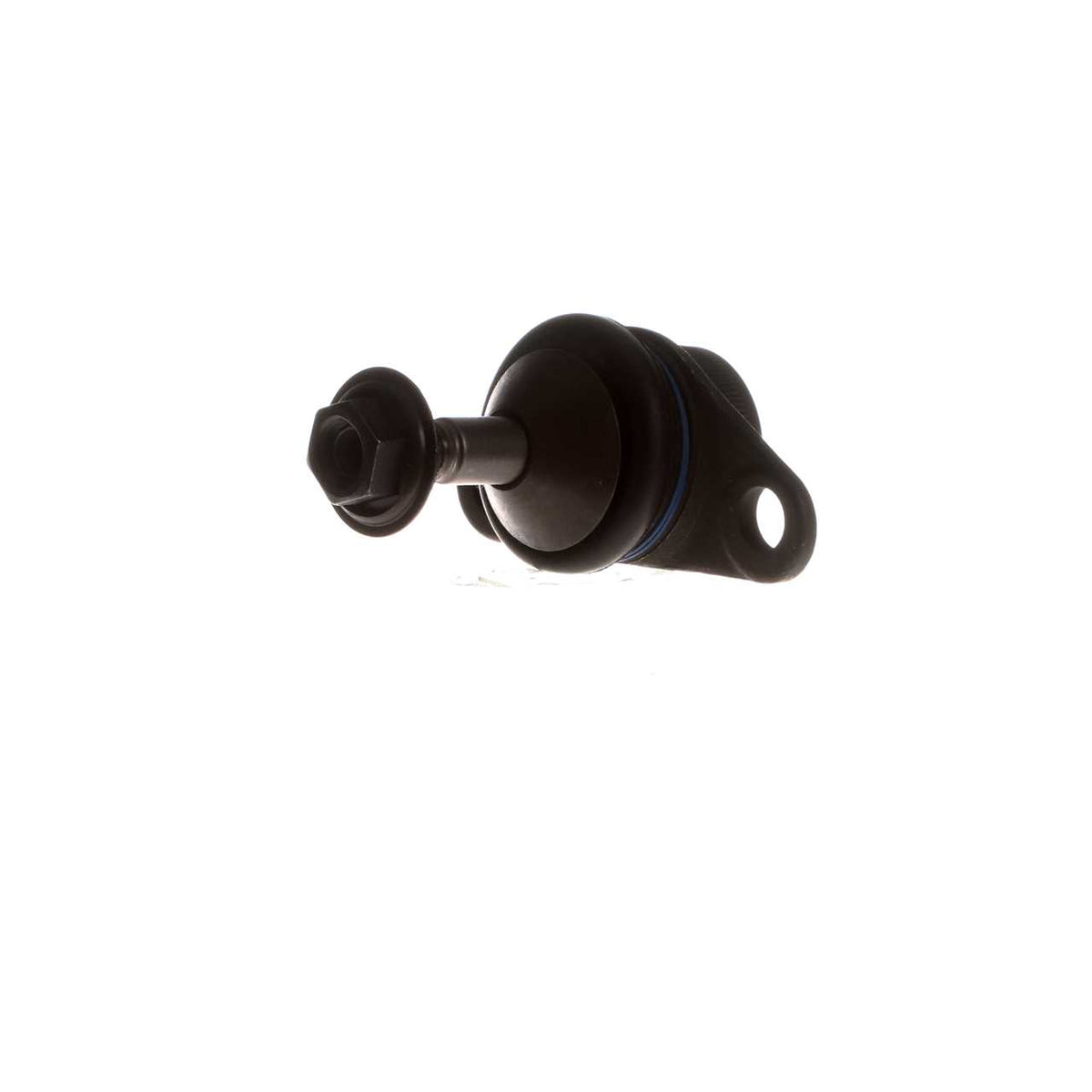

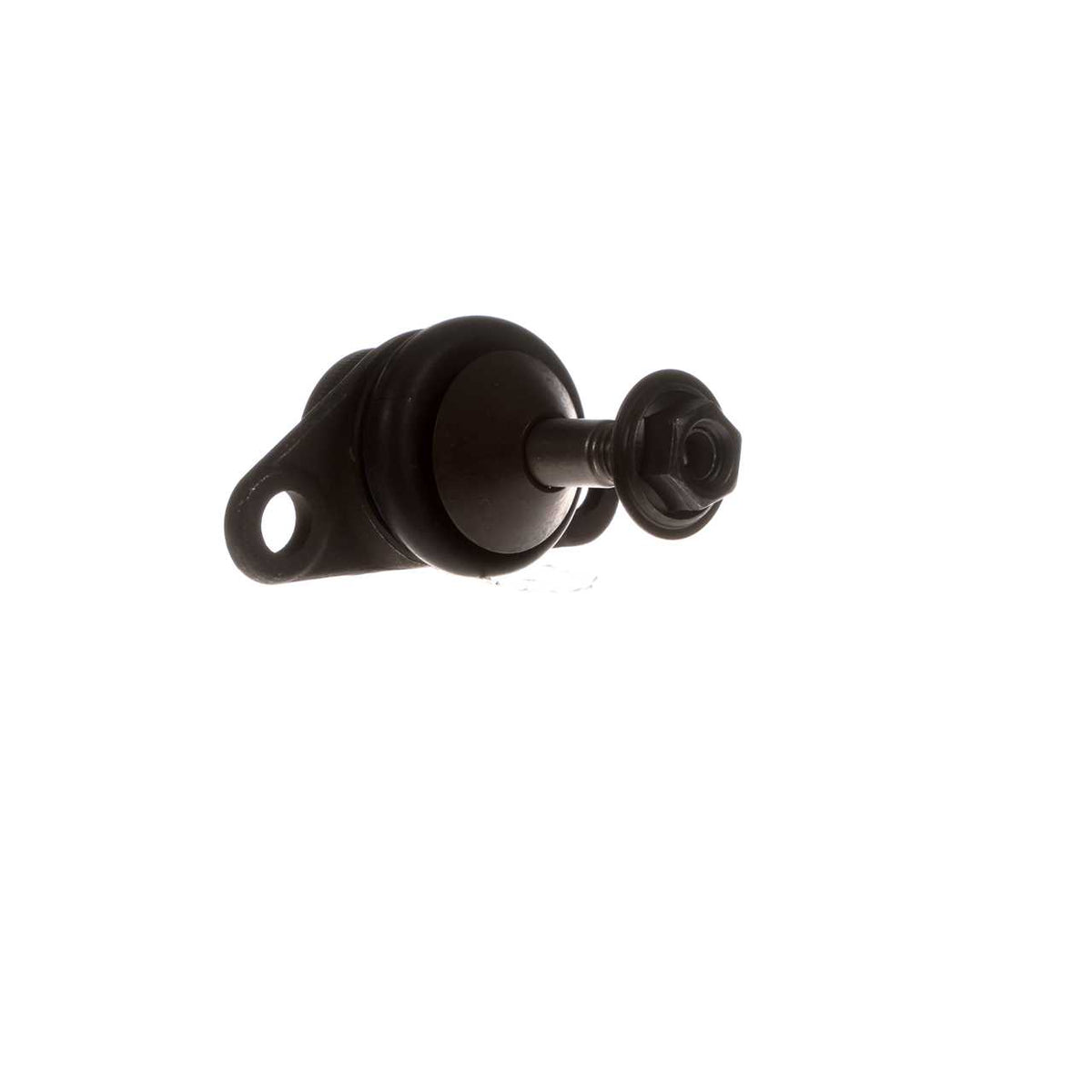

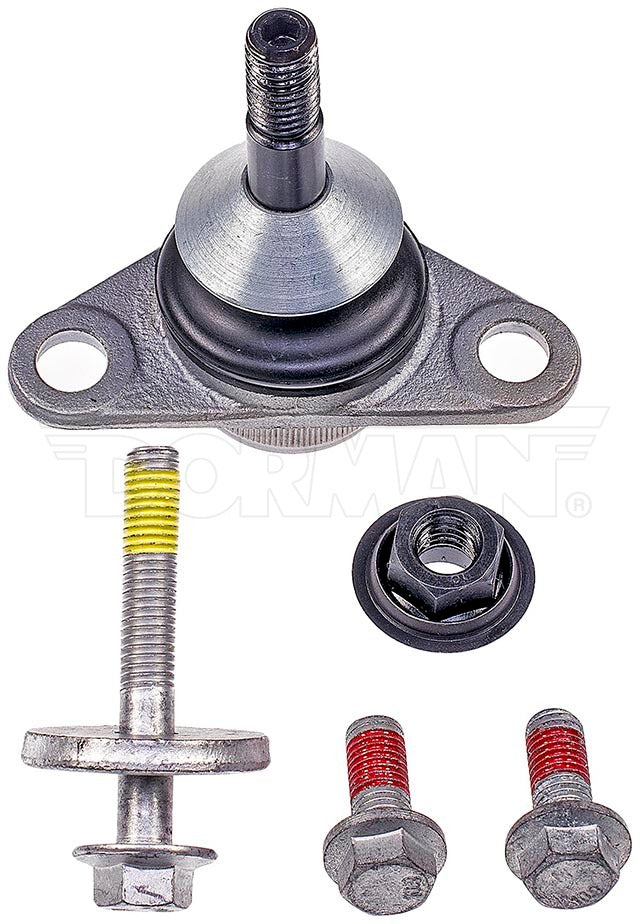

Dorman 523-120 Front Lower Suspension Ball Joint 99-07 Volvo S80 V70 S60 XC70
Confirm Fitment Before You Buy
Not sure it fits? Message Year/Make/Model/Engine (2WD/4WD if applicable) and we’ll help confirm compatibility.
Why buy from Koskowski Automotive?
• 50+ years (since 1972) • Dorman Authorized Seller • Fast shipping • Easy returns
Regular price
$39.54
Select your vehicle at the top of the page to check fitment.
Couldn't load pickup availability
Vehicle Fitment: Use the table below to match your exact configuration. If you don’t see your exact setup, message us before ordering.
This suspension ball joint is precision-engineered and rigorously tested to provide reliable replacement for the original equipment on specific vehicles.
- Direct replacement - fits and performs like the original equipment on specific vehicles
- Reliable fit - precision-engineered to match the design and dimensions of original components
- Durable construction - manufactured to strict standards using sturdy, safe materials
- Rigorously tested - thorough quality control measures ensure longevity
Vehicle Fitment
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2007 | Volvo | S60 | Front Lower | To VIN 626501; w/Aluminum Arms |
| 2001-2006 | Volvo | S60 | Front Lower | |
| 1999-2006 | Volvo | S80 | Front Lower | |
| 2007 | Volvo | V70 | Front Lower | w/Aluminum Arms; w/Factory Code 1 To VIN 647148; w/Factory Code 2 To VIN 645617 |
| 2001-2006 | Volvo | V70 | Front Lower | |
| 2003-2007 | Volvo | XC70 | Front Lower |
Please confirm the part number and your vehicle's year, make, model and engine before ordering. Questions? Message us with your VIN and we'll check fitment for you.
Specifications
| Brand | Dorman |
|---|---|
| Part Number | 523-120 |
| UPC | 037495276757 |
| Placement | Front, Lower |
| Material | Steel |
| Length | 111 mm |
| Color | Grey |
| Width | 59 mm |
| Type | Threaded |
| Mounting Hardware Included | Yes |
| Height | 85.03 mm |
| Adjustable | No |
| Mounting Type | Bolt On |
| Mounting Hole Quantity | 2 |
| Wrench Size | 12 mm |
| Stud Type | Pinch |
| Maximum Outside Diameter | 61 mm |
| Castle Nut Included | No |
| Grease Fitting Included | No |
| Suspension Grade Type | Premium |
| Bushings Included | No |
| Dust Boot Included | Yes |
| Ball Joint Assembly | Yes |
| Cotter Pin Included | No |
| Cotter Pin Hole | No |
| Washers Included | No |
| Greaseable | No |
| Stud Thread Length | 35.5 mm |
| Dust Boot Material | Polychloroprene |
| Bushing Quantity | 0 |
| Mounting Bolts Included | No |
| Mount Plate Included | No |
| Tapered Stud | Yes |
| Stud Taper Per Foot | 2 in. |
| Stud Tapered End 2 Diameter | 22 mm |
| Stud Tapered End 1 Diameter | 27.2 mm |
| Attachment Type | Taper |
| Ball Joint Installed | Yes |
| Bearing Material | Polymer |
| Bolts/Studs Included | Yes |
| Housing Press Fit Diameter | 38.2 mm |
| Nuts Included | Yes |
| Package Contents | 1 Ball Joint; 3 Bolts; 1 Nut |
| Stud Thread Diameter | 12 mm |
| Stud Thread Pitch | 1.5 mm |
| Thread Pitch | M1.5 |
| Country of Origin | China |
| Warranty | Limited Lifetime |
OE & Interchange Numbers
| 274186 | Volvo (OE) |
|---|---|
| 274193 | Volvo (OE) |
| 2745487 | Volvo (OE) |
| 274544 | Volvo (OE) |
| 274548 | Volvo (OE) |
| K80700 | Interchange |
| 1027003 | Interchange |
| GS10505 | Interchange |
| TC1192 | Interchange |
| MS10505 | Interchange |
| 101-5042 | Interchange |
| JBJ720 | Interchange |
| L2555002 | Interchange |
| 10480700 | Interchange |
