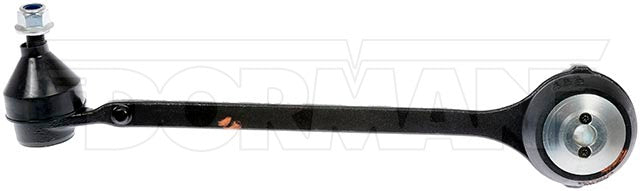

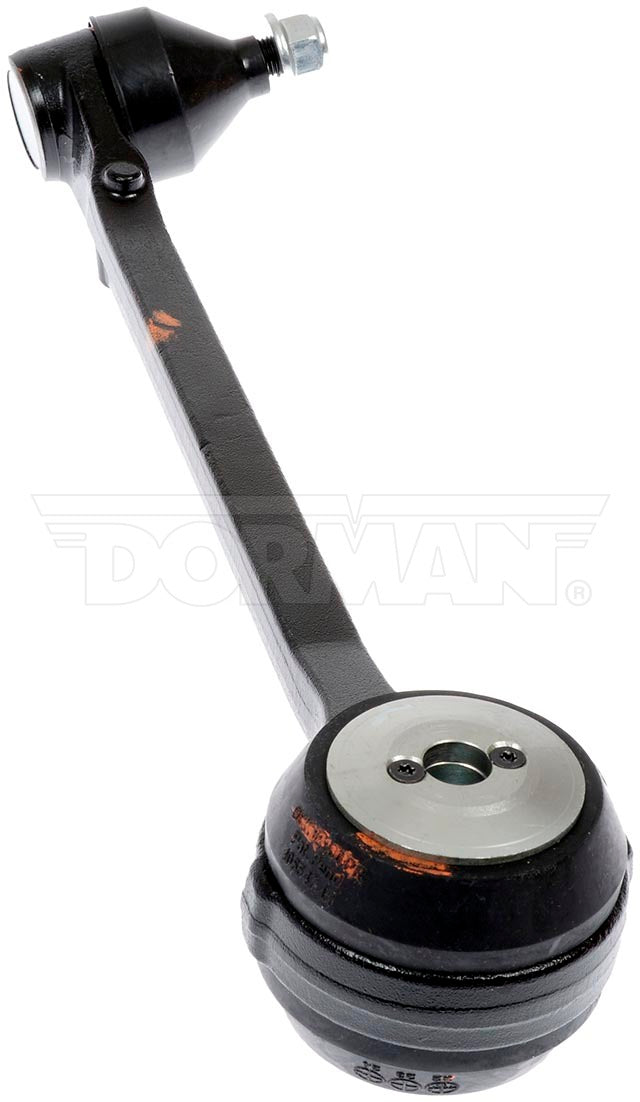

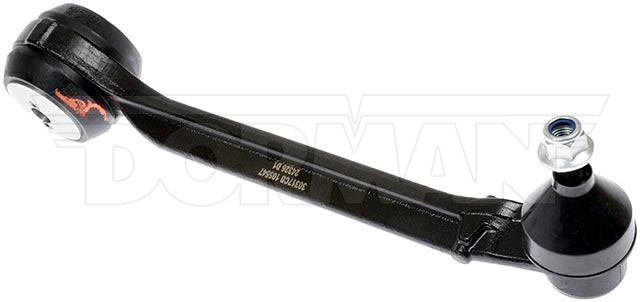

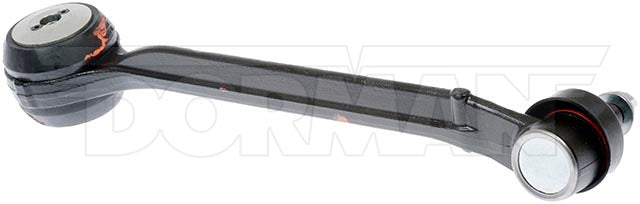

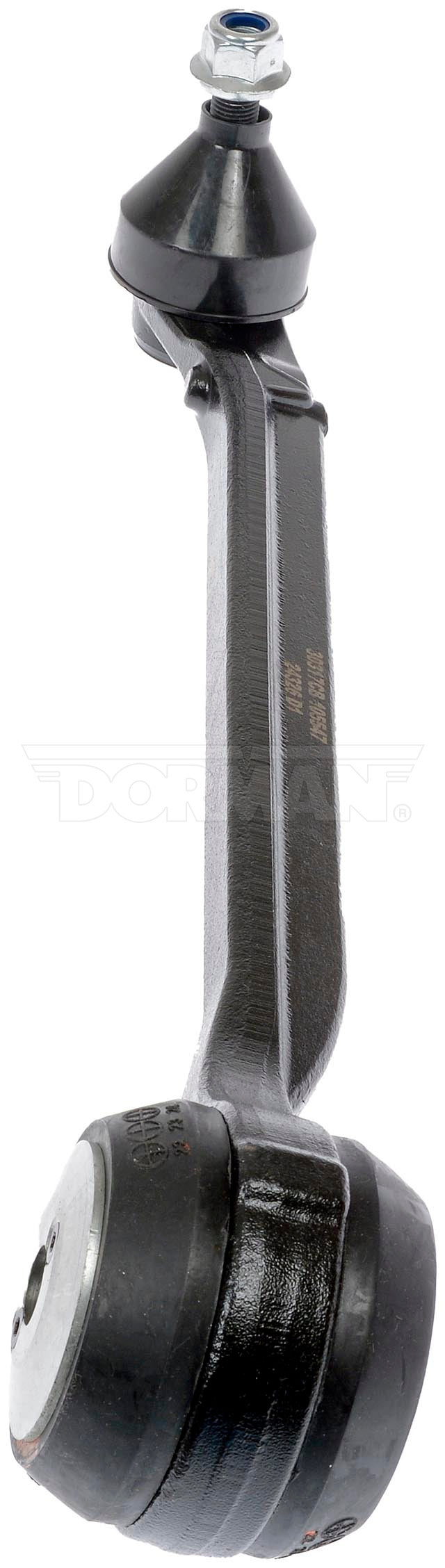

Dorman 524-381 Front Left Lower Control Arm w/ Ball Joint 11-23 Dodge Charger
Couldn't load pickup availability

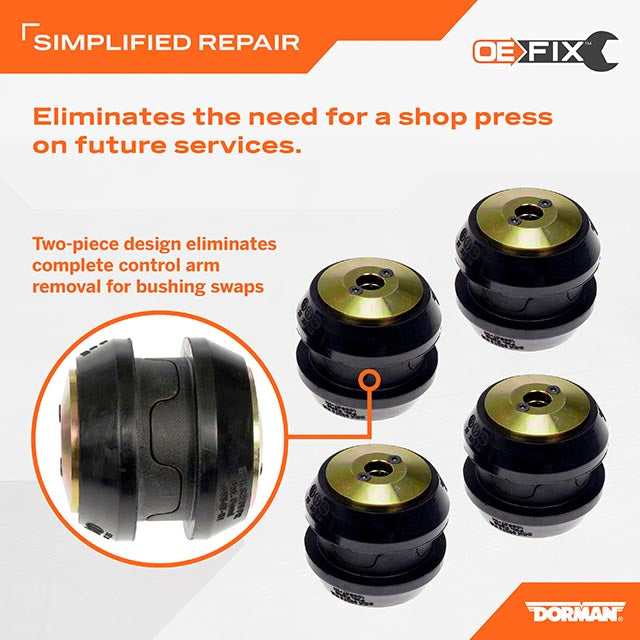

When the original equipment front left lower forward control arm and ball joint assembly fails on certain RWD Chrysler 300, Dodge Charger and Dodge Challenger the bushings are often the reason. The factory bushings are undersized for certain applications and made from rubber that prematurely weakens and breaks down. Replacing that failed assembly with another OE or aftermarket product that lacks a more durable bushing can lead to similar future failures and potential driveabilty issues. The costs of those repetitive repairs and chronic downtime can add up in a hurry, particularly for vehicles used by car service, limousine and law enforcement fleets. This Dorman OE FIX control arm and ball joint assembly features an oversized, heavy-duty two-piece bushing that distributes the suspension load over a greater area and is manufactured from denser, more durable rubber, eliminating the primary reason for control arm failure. This upgraded assembly has been engineered and tested to help ensure a seamless, predictable installation on specified vehicles. For optimal performance and service life, both assemblies should be replaced.
- Upgraded repair - this control arm features an oversized, heavy-duty two-piece bushing to offer a more permanent repair solution when replacing an OE arm on certain Chrysler and Dodge vehicles
- Cost-effective - replacing the factory-style control arms can increase uptime and decrease maintenance costs for fleet vehicles; for optimal performance, replacing both control arms is recommended
- Position-specific - this control arm is engineered exclusively to replace a failed front left lower forward arm on specified RWD Chrysler and Dodge vehicles without high-performance suspensions
- Simple installation - professional technicians and experienced DIYers can install this assembly without any special tools, with no shop press needed
Vehicle Fitment
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2019-2023 | Chrysler | 300 | Front Left Lower Forward | wo/High Performance Suspension |
| 2018 | Chrysler | 300 | Front Left Lower Forward | wo/High Performance Suspension; RWD; 5.7L V8; Improved Design |
| 2018 | Chrysler | 300 | Front Left Lower Forward | RWD; 3.6L V6; Improved Design |
| 2011-2017 | Chrysler | 300 | Front Left Lower Forward | wo/High Performance Suspension; RWD; Improved Design |
| 2019-2023 | Dodge | Challenger | Front Left Lower Forward | wo/High Performance Suspension |
| 2018 | Dodge | Challenger | Front Left Lower Forward | RWD; 3.6L V6; Improved Design |
| 2018 | Dodge | Challenger | Front Left Lower Forward | wo/High Performance Suspension; RWD; 5.7L V8; Improved Design |
| 2017 | Dodge | Challenger | Front Left Lower Forward | wo/High Performance Suspension; RWD; Improved Design |
| 2011-2016 | Dodge | Challenger | Front Left Lower Forward | wo/High Performance Suspension; Improved Design |
| 2019-2023 | Dodge | Charger | Front Left Lower Forward | wo/High Performance Suspension |
| 2018 | Dodge | Charger | Front Left Lower Forward | wo/High Performance Suspension; RWD; 5.7L V8; Improved Design |
| 2018 | Dodge | Charger | Front Left Lower Forward | RWD; 3.6L V6; Improved Design |
| 2011-2017 | Dodge | Charger | Front Left Lower Forward | wo/High Performance Suspension; RWD; Improved Design |
Please confirm the part number and your vehicle's year, make, model and engine before ordering. Questions? Message us with your VIN and we'll check fitment for you.
Specifications
| Brand | Dorman |
|---|---|
| Part Number | 524-381 |
| UPC | 885484843042 |
| Placement | Front, Left, Lower |
| Thread Direction | Clockwise (Right) |
| Length | 475 mm |
| Mounting Hardware Included | Yes |
| Adjustable | No |
| Bushing Material | Rubber |
| Bushing Color | Black |
| Finish | Painted |
| Mounting Hole Quantity | 1 |
| Boot Color | Black |
| Cone Outside Diameter | 16.75 mm |
| Bearing Material | Polymer |
| Mounting Hole Diameter | 16 mm |
| Reinforced | Yes |
| Pre-Greased | Yes |
| Castle Nut Included | No |
| Grease Fitting Included | No |
| Bushings Included | Yes |
| Dust Boot Included | Yes |
| Ball Joint Mounting Type | Press In |
| Ball Joint Stud Type | Threaded |
| Ball Joint Included | Yes |
| Control Arm Construction | Casting/Forged |
| Control Arm Material | Steel |
| Cotter Pin Included | No |
| Grade Type | Standard Replacement |
| Locking Nut Included | Yes |
| Greaseable | No |
| Control Arm Maximum Width | 78 mm |
| Control Arm Color | Black |
| Ball Joint Stud Length | 25 mm |
| Control Arm Maximum Length | 475 mm |
| Steering Type | Power |
| Thread Size | 14 mm |
| Attachments Included | Yes |
| Ball Joint Installed | Yes |
| Ball Joint Thread Diameter | 14 mm |
| Control Arm Type | Casting/Forged |
| End 2 Thread Diameter | 14 mm |
| End 2 Thread Pitch | 1.5 mm |
| Package Contents | 1 Control Arm; 1 Ball Joint; 1 Nut |
| Suspension Grade Type | Standard Replacement |
| Thread Diameter | 14 mm |
| Thread Pitch | 1.5 mm |
| Country of Origin | India |
| Warranty | Limited Lifetime |
OE & Interchange Numbers
| 4670509AB | Chrysler (OE) |
|---|---|
| 4670509AF | Chrysler (OE) |
| 68225315AB | Chrysler (OE) |
| 4670509AE | Chrysler (OE) |
| 68238601AB | Chrysler (OE) |
| 5168653AA | Chrysler (OE) |
| 5168653AC | Chrysler (OE) |
| 5168653AB | Chrysler (OE) |
| 5168653AD | Chrysler (OE) |
| 68238601AA | Chrysler (OE) |
| 4670509AD | Chrysler (OE) |
| 4670509AG | Chrysler (OE) |
| 68225315AA | Chrysler (OE) |
| 4670509AC | Chrysler (OE) |
| GS251123 | Interchange |
| CMS251123 | Interchange |
| TC5738 | Interchange |
| X13CJ1450 | Interchange |
| CA3965 | Interchange |
| 2607225M | Interchange |
| CK622225 | Interchange |
| 2607225 | Interchange |
| RK622225 | Interchange |
| 800-498458B | Interchange |
| 1506109 | Interchange |
| SK522801 | Interchange |
| 2CB25203 | Interchange |
| RK620258 | Interchange |
