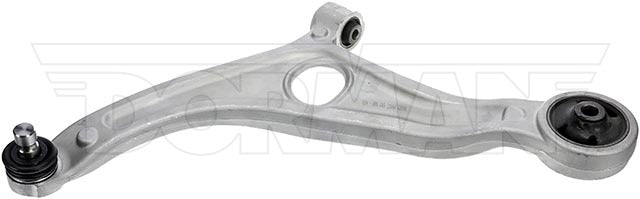

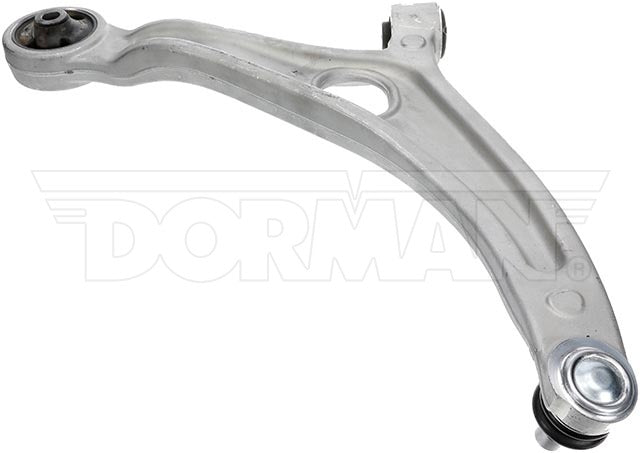

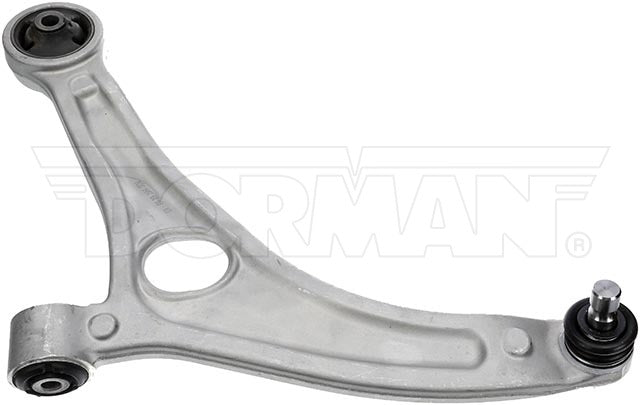

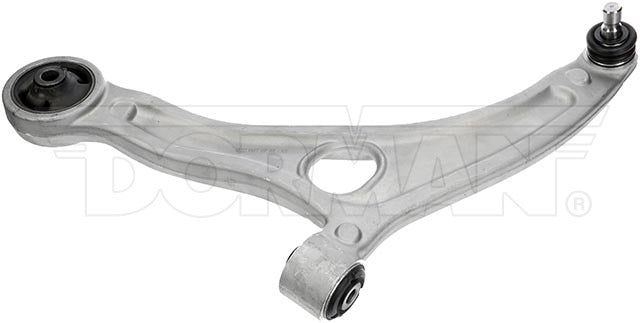

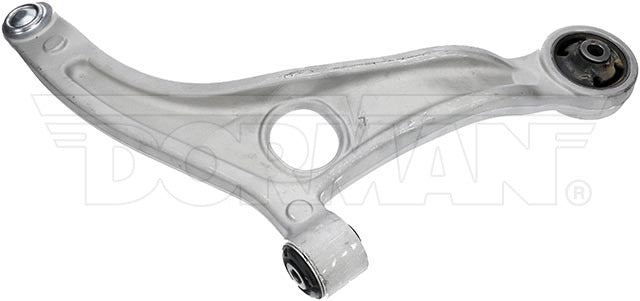

Dorman 524-695 Front Left Lower Control Arm w/ Ball Joint 11-17 Kia Optima
Confirm Fitment Before You Buy
Not sure it fits? Message Year/Make/Model/Engine (2WD/4WD if applicable) and we’ll help confirm compatibility.
Why buy from Koskowski Automotive?
• 50+ years (since 1972) • Dorman Authorized Seller • Fast shipping • Easy returns
Regular price
$272.78
Select your vehicle at the top of the page to check fitment.
Couldn't load pickup availability
Vehicle Fitment: Use the table below to match your exact configuration. If you don’t see your exact setup, message us before ordering.
This suspension control arm and ball joint assembly is a direct replacement for the original equipment on specific vehicle applications. An industry-leading evaluation process ensures a smooth ride, directional stability and predictable dynamics.
- Trustworthy replacement - this control arm and ball joint assembly directly replaces the original assembly on specific vehicle applications
- Complete repair - each assembly includes pre-installed ball joint and bushings, saving time and labor
- Quality engineering - underwent industry-leading testing to ensure a smooth, stable and safe ride
- Durably designed - additional coatings offer long-lasting rust and corrosion resistance
Vehicle Fitment
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2015-2017 | Hyundai | Azera | Front Left Lower | |
| 2014 | Hyundai | Sonata | Front Left Lower | w/Aluminum Arms |
| 2011-2015 | Hyundai | Sonata | Front Left Lower | |
| 2015-2016 | Kia | Optima | Front Left Lower | |
| 2014-2015 | Kia | Optima | Front Left Lower | w/Aluminum Arms |
| 2011-2013 | Kia | Optima | Front Left Lower |
Please confirm the part number and your vehicle's year, make, model and engine before ordering. Questions? Message us with your VIN and we'll check fitment for you.
Specifications
| Brand | Dorman |
|---|---|
| Part Number | 524-695 |
| UPC | 885484588684 |
| Placement | Front, Left, Lower |
| Mounting Hardware Included | No |
| Adjustable | No |
| Bushing Material | Rubber |
| Mounting Hole Quantity | 2 |
| Mounting Hole Diameter | 12.3 mm |
| Pre-Greased | Yes |
| Grease Fitting Included | No |
| Bushings Included | Yes |
| Ball Joint Mounting Type | Machined |
| Ball Joint Stud Type | Pinch |
| Ball Joint Included | Yes |
| Control Arm Material | Aluminum |
| Grade Type | Standard Replacement |
| Control Arm Maximum Width | 375 mm |
| Control Arm Color | Silver |
| Control Arm Maximum Length | 415 mm |
| Ball Joint Installed | Yes |
| Ball Joint Thread Diameter | 18 mm |
| Control Arm Type | Casting/Forged |
| Package Contents | Suspension Control Arm and Ball Joint Assembly |
| Country of Origin | Turkey |
| Warranty | Limited Lifetime |
OE & Interchange Numbers
| 545004R000 | Hyundai (OE) |
|---|---|
| CMS901180 | Interchange |
| GS901180 | Interchange |
| RK622367 | Interchange |
| 5CB90321 | Interchange |
| TC6383 | Interchange |
| 102-7555 | Interchange |
| CA10623 | Interchange |
| 2608192 | Interchange |
| X23CJ7188 | Interchange |
