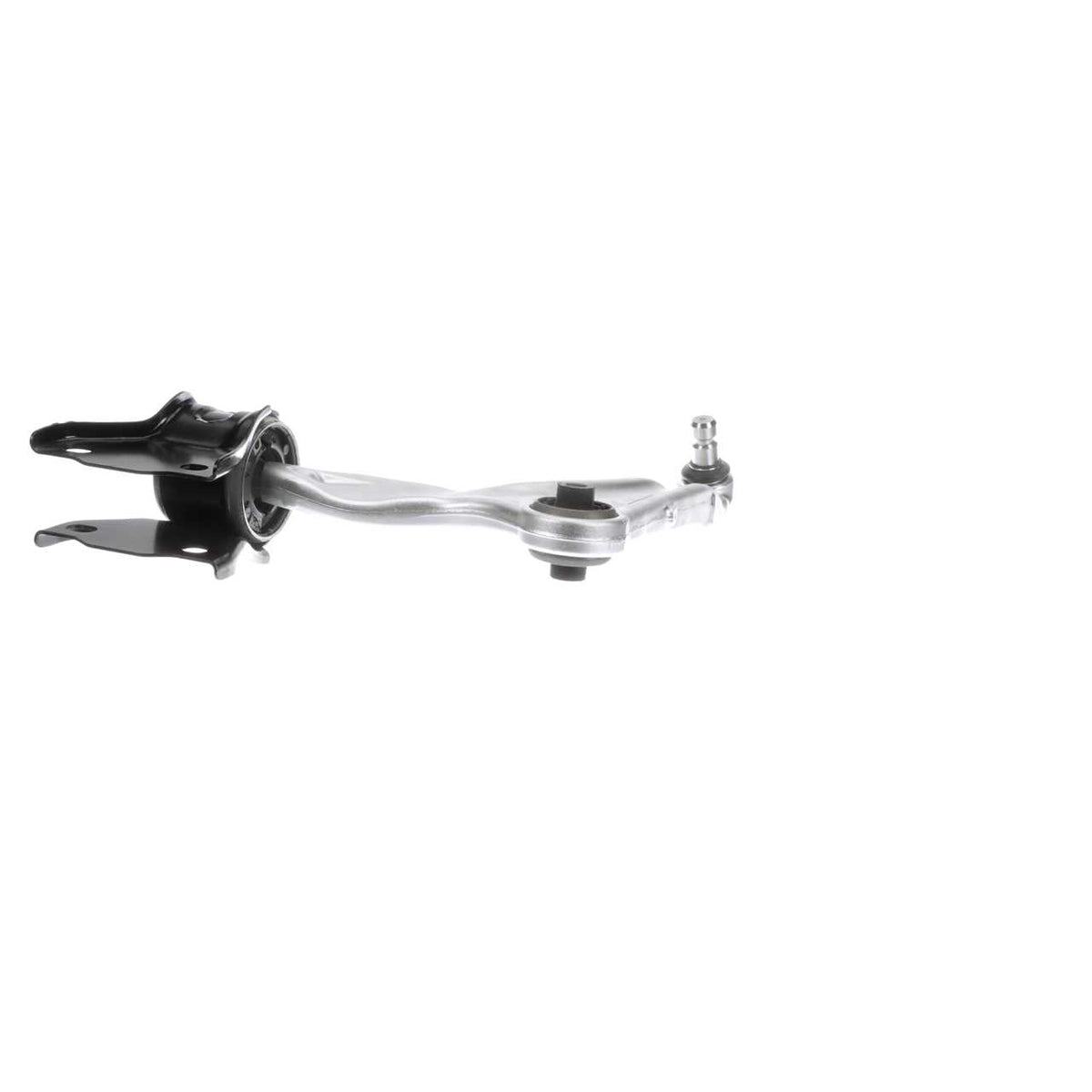

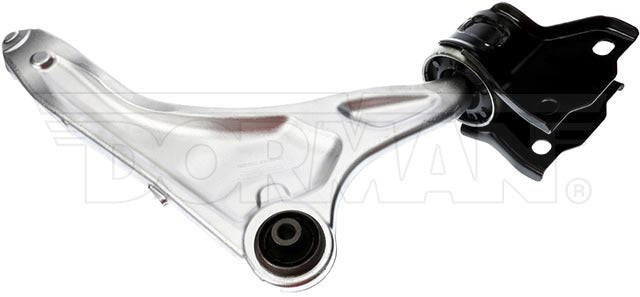

Dorman 524-759 Front Left Lower Control Arm 12-19 Land Rover Range Rover Evoque
Confirm Fitment Before You Buy
Not sure it fits? Message Year/Make/Model/Engine (2WD/4WD if applicable) and we’ll help confirm compatibility.
Why buy from Koskowski Automotive?
• 50+ years (since 1972) • Dorman Authorized Seller • Fast shipping • Easy returns
Regular price
$282.66
Select your vehicle at the top of the page to check fitment.
Couldn't load pickup availability
Vehicle Fitment: Use the table below to match your exact configuration. If you don’t see your exact setup, message us before ordering.

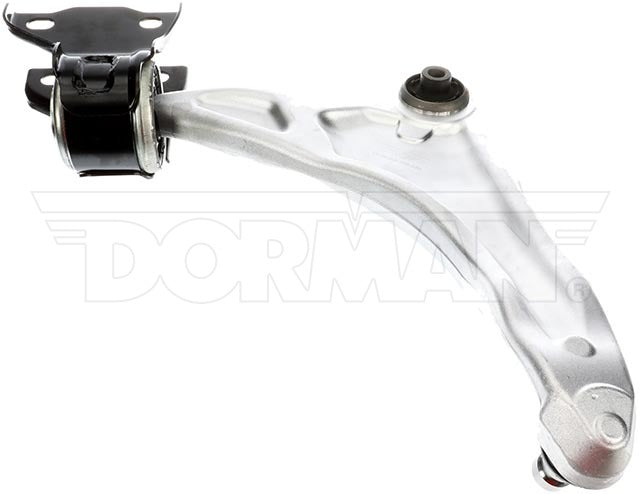

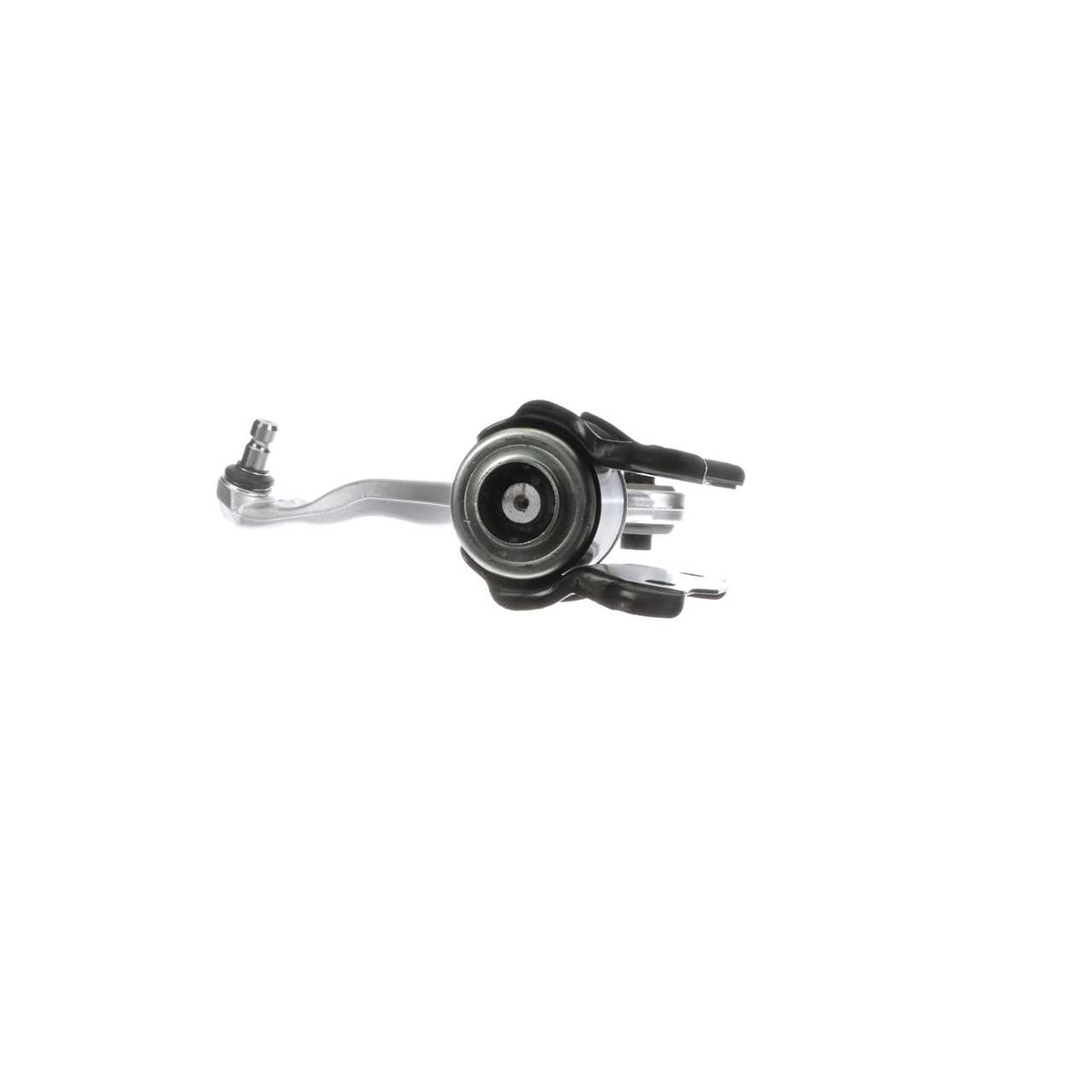

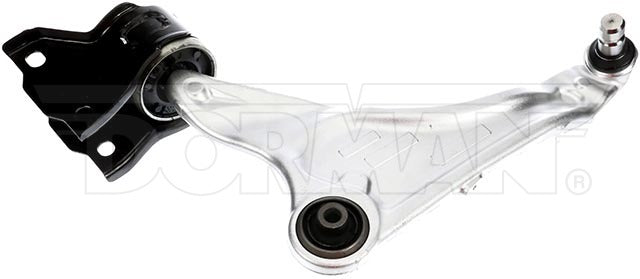

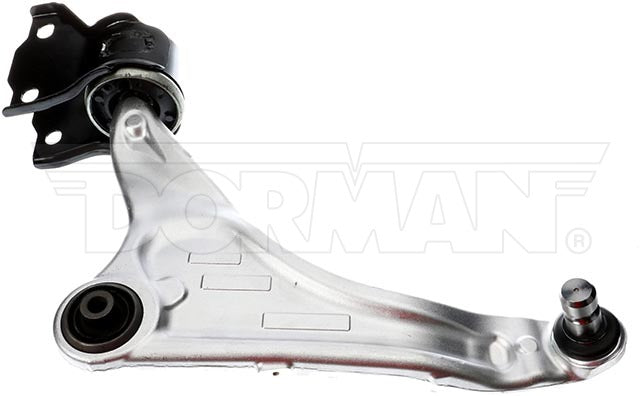

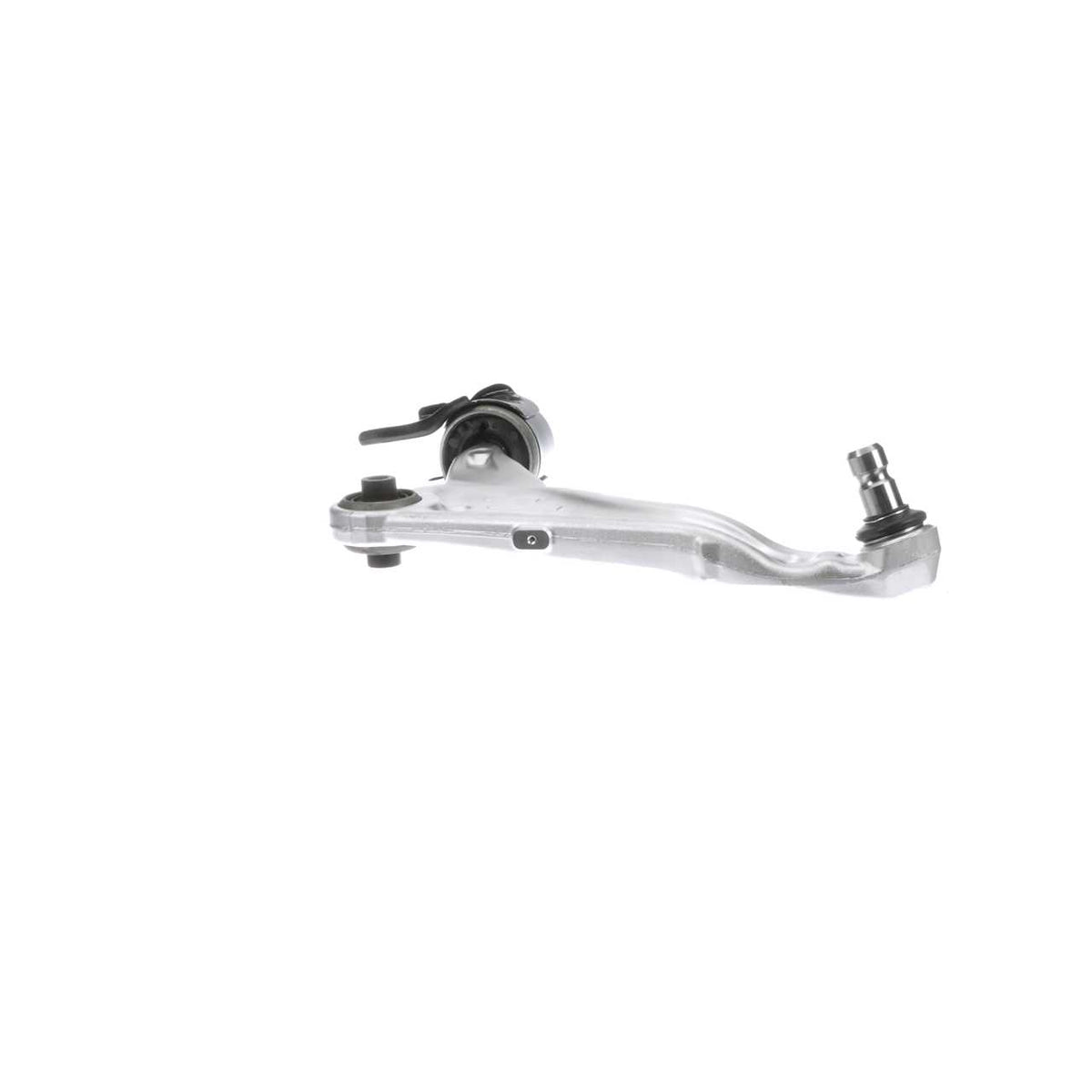

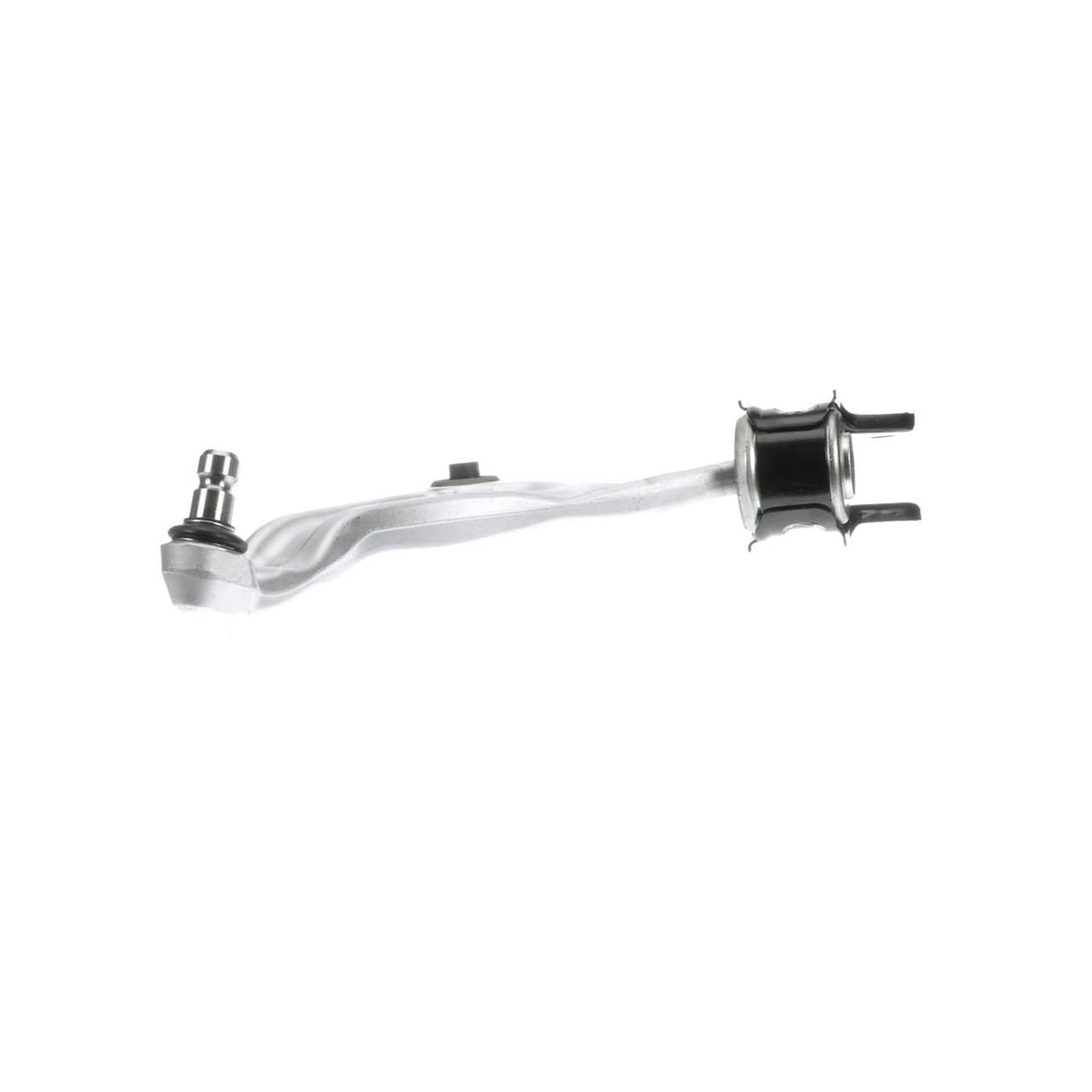

This suspension control arm and ball joint assembly is a direct replacement for the original equipment on specific vehicle applications. An industry-leading evaluation process ensures a smooth ride, directional stability and predictable dynamics.
- Trustworthy replacement - this control arm and ball joint assembly directly replaces the original assembly on specific vehicle applications
- Complete repair - each assembly includes pre-installed ball joint and bushings, saving time and labor
- Quality engineering - underwent industry-leading testing to ensure a smooth, stable and safe ride
- Durably designed - additional coatings offer long-lasting rust and corrosion resistance
Vehicle Fitment
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2019 | Land Rover | Range Rover Evoque | Front Left Lower | |
| 2016-2018 | Land Rover | Range Rover Evoque | Front Left Lower | w/Aluminum Arms |
| 2012-2015 | Land Rover | Range Rover Evoque | Front Left Lower |
Please confirm the part number and your vehicle's year, make, model and engine before ordering. Questions? Message us with your VIN and we'll check fitment for you.
Specifications
| Brand | Dorman |
|---|---|
| Part Number | 524-759 |
| UPC | 885484877184 |
| Placement | Front, Left, Lower |

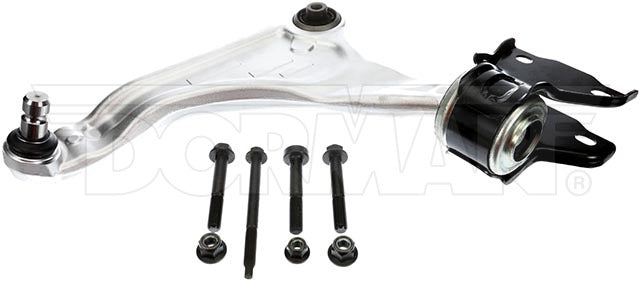

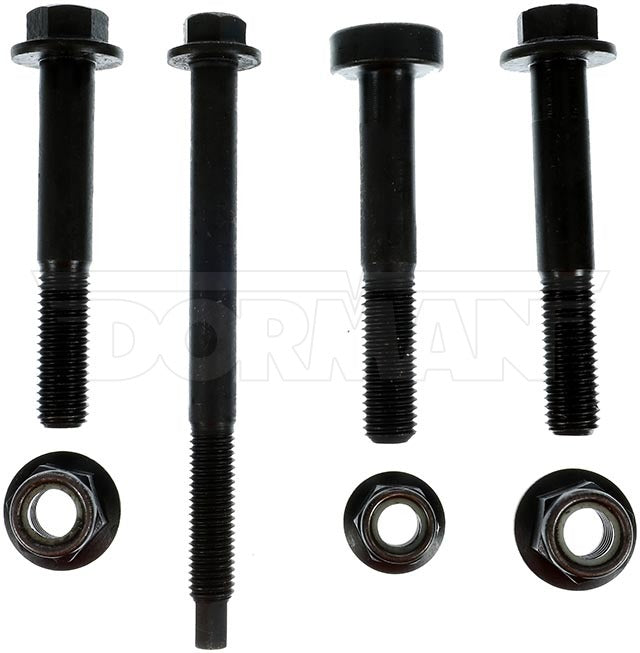

| Mounting Hardware Included | Yes |
| Adjustable | No |
| Bushing Material | Rubber |
| Mounting Hole Quantity | 1 |
| Mounting Hole Diameter | 12.3 mm |
| Pre-Greased | Yes |
| Grease Fitting Included | No |
| Bushings Included | Yes |
| Ball Joint Stud Type | Pinch |
| Ball Joint Included | Yes |
| Control Arm Construction | Casting/Forged |
| Control Arm Material | Aluminum |
| Grade Type | Standard Replacement |
| Control Arm Maximum Width | 288.5 mm |
| Control Arm Color | Black |
| Ball Joint Stud Length | 20 mm |
| Control Arm Maximum Length | 237 mm |
| Ball Joint Installed | Yes |
| Ball Joint Thread Diameter | 14 mm |
| Control Arm Type | Casting/Forged |
| Package Contents | Suspension Control Arm and Ball Joint Assembly |
| Country of Origin | China |
| Warranty | Limited Lifetime |
OE & Interchange Numbers
| LR045802 | Ford (OE) |
|---|---|
| LR078657 | Jaguar (OE) |
| LR044298 | Interchange |
| LR024473 | Interchange |
| LR073522 | Interchange |
| CA14721 | Interchange |
| GS101441 | Interchange |
| 9CB10668 | Interchange |
| CMS101441 | Interchange |
| 2608293 | Interchange |
