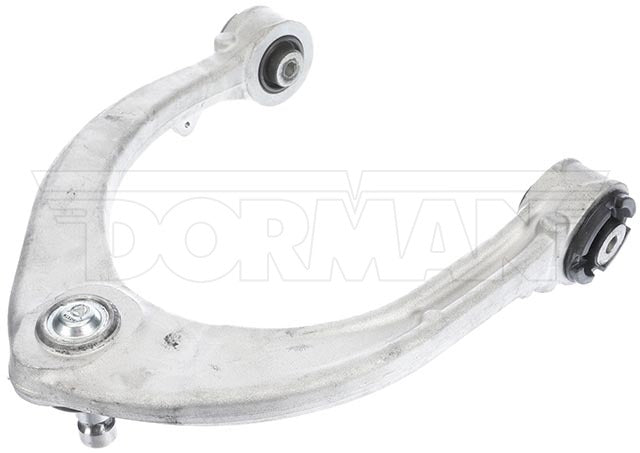

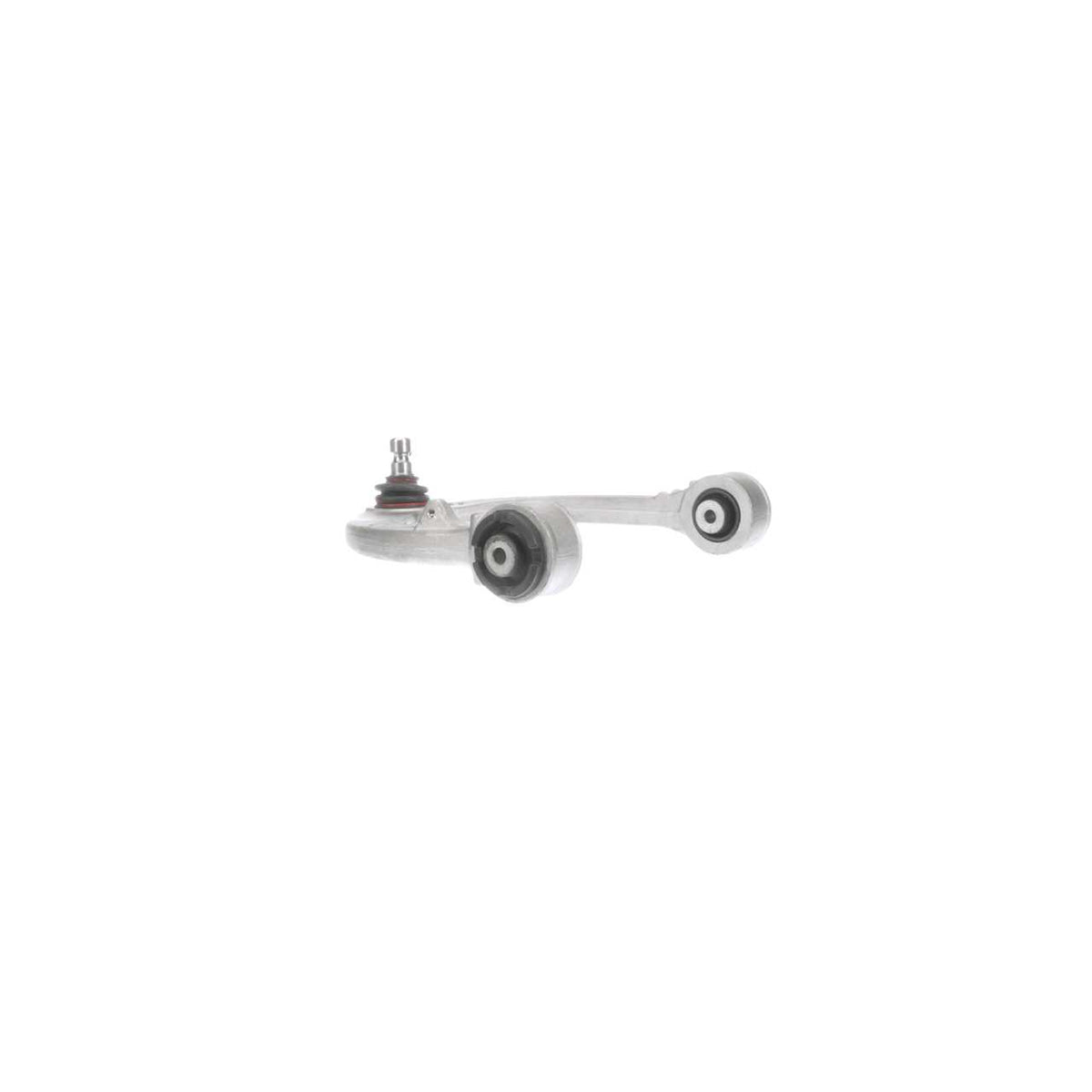

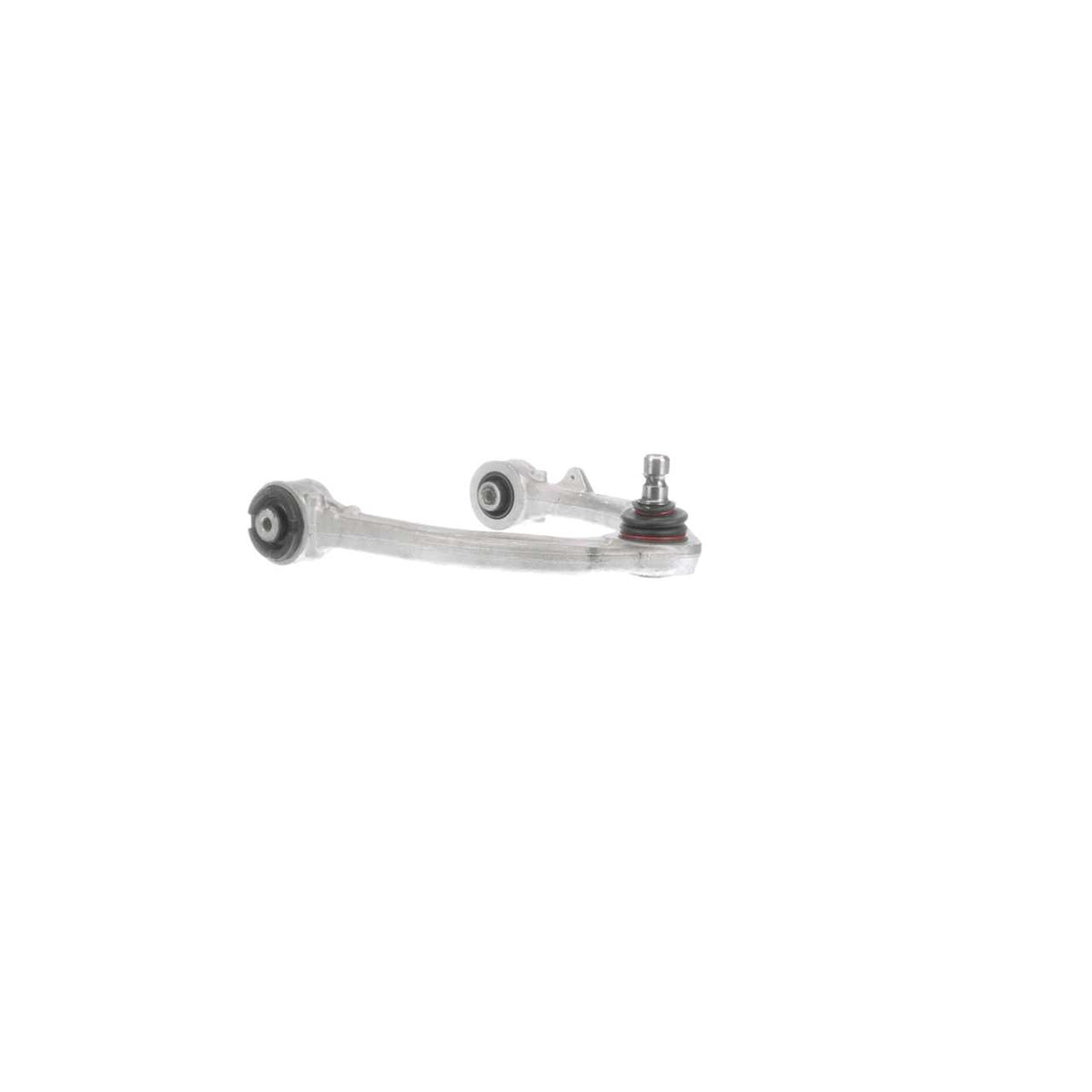

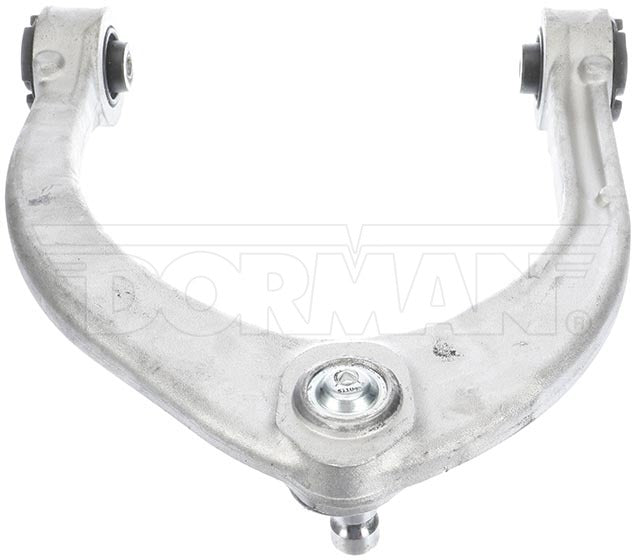

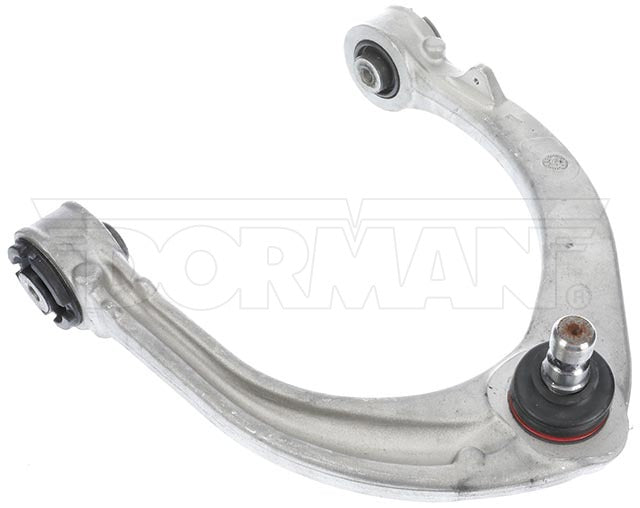

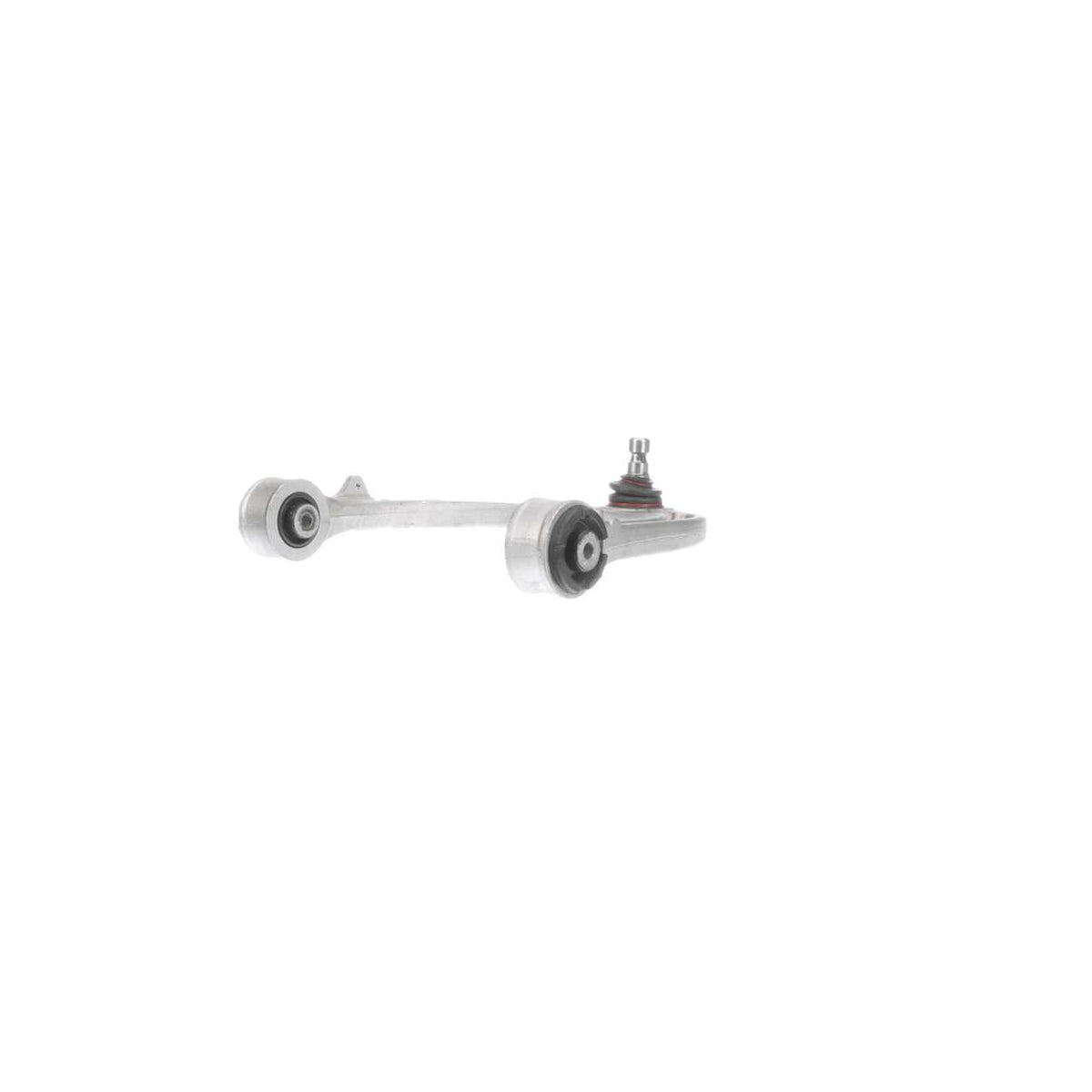

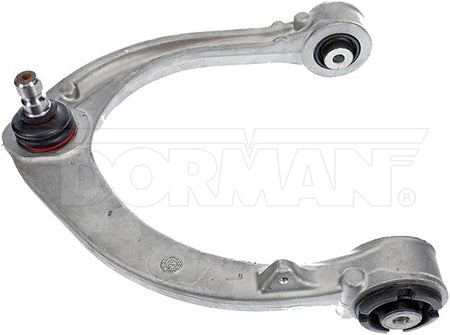

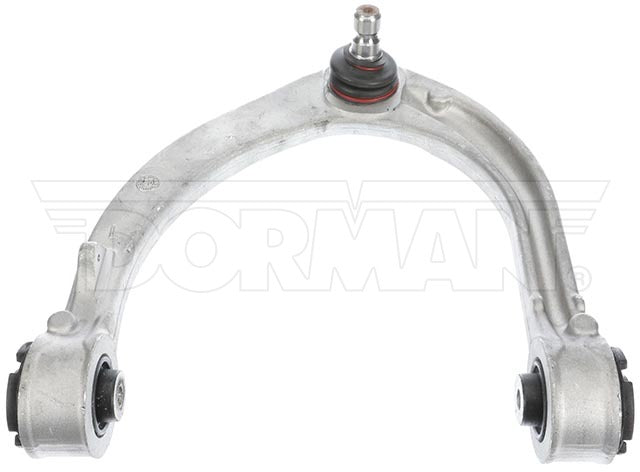

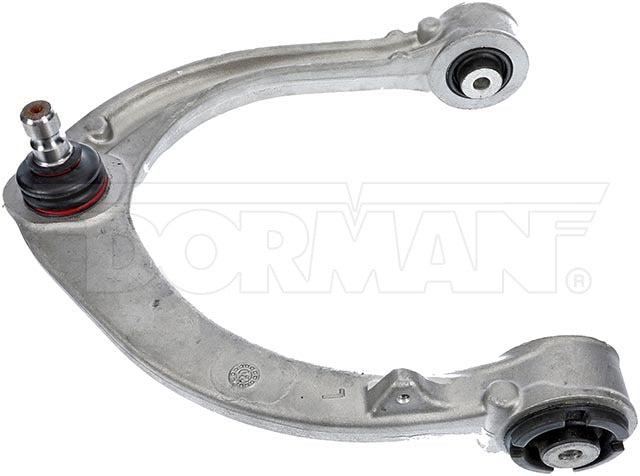

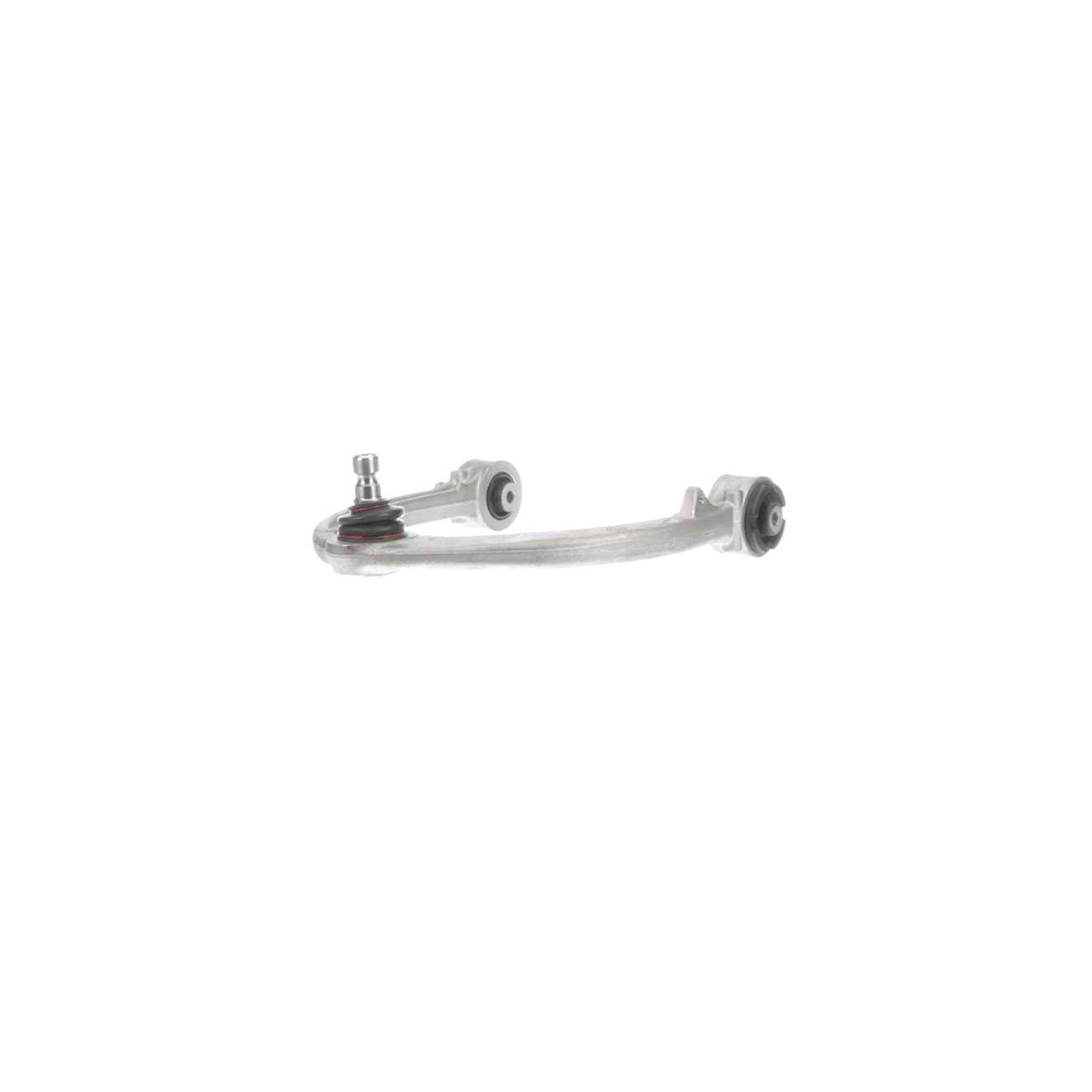

Dorman 524-939 Front Left Upper Control Arm 13-22 Land Rover Range Rover Sport
Confirm Fitment Before You Buy
Not sure it fits? Message Year/Make/Model/Engine (2WD/4WD if applicable) and we’ll help confirm compatibility.
Why buy from Koskowski Automotive?
• 50+ years (since 1972) • Dorman Authorized Seller • Fast shipping • Easy returns
Regular price
$133.80
Select your vehicle at the top of the page to check fitment.
Couldn't load pickup availability
Vehicle Fitment: Use the table below to match your exact configuration. If you don’t see your exact setup, message us before ordering.
This suspension control arm and ball joint assembly is a direct replacement for the original equipment on specific vehicle applications. An industry-leading evaluation process ensures a smooth ride, directional stability and predictable dynamics.
- Trustworthy replacement - this control arm and ball joint assembly directly replaces the original assembly on specific vehicle applications
- Complete repair - each assembly includes pre-installed ball joint and bushings, saving time and labor
- Quality engineering - underwent industry-leading testing to ensure a smooth, stable and safe ride
- Durably designed - additional coatings offer long-lasting rust and corrosion resistance
Vehicle Fitment
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2017-2020 | Land Rover | Discovery | Front Left Upper | |
| 2013-2022 | Land Rover | Range Rover | Front Left Upper | |
| 2014-2022 | Land Rover | Range Rover Sport | Front Left Upper |
Please confirm the part number and your vehicle's year, make, model and engine before ordering. Questions? Message us with your VIN and we'll check fitment for you.
Specifications
| Brand | Dorman |
|---|---|
| Part Number | 524-939 |
| UPC | 194883075474 |
| Placement | Front, Left, Upper |
| Mounting Hardware Included | Yes |
| Adjustable | No |
| Bushing Material | Steel; Rubber |
| Mounting Hole Quantity | 1 |
| Mounting Hole Diameter | 12.3 mm |
| Pre-Greased | Yes |
| Grease Fitting Included | No |
| Bushings Included | Yes |
| Ball Joint Mounting Type | Press In |
| Ball Joint Stud Type | Threaded |
| Ball Joint Included | Yes |
| Control Arm Construction | Casting/Forged |
| Control Arm Material | Steel |
| Grade Type | Standard Replacement |
| Control Arm Maximum Width | 288.5 mm |
| Control Arm Color | Black |
| Ball Joint Stud Length | 15.5 mm |
| Control Arm Maximum Length | 237 mm |
| Ball Joint Installed | Yes |
| Ball Joint Thread Diameter | 14 mm |
| Control Arm Type | Casting/Forged |
| Package Contents | 1 Control Arm; 1 Ball Joint |
| Country of Origin | Belgium |
| Warranty | Limited Lifetime |
OE & Interchange Numbers
| LR113265 | Interchange |
|---|---|
| LR139240 | Interchange |
| LR044844 | Interchange |
| LR113268 | Interchange |
| LR034214 | Interchange |
| LR108766 | Interchange |
| LR148193 | Interchange |
| TC3046 | Interchange |
| TC3037 | Interchange |
| GS101429 | Interchange |
| TC3042 | Interchange |
| CA8969 | Interchange |
| 4CB10648 | Interchange |
| TC3048 | Interchange |
| CMS101429 | Interchange |
| RK622954 | Interchange |
