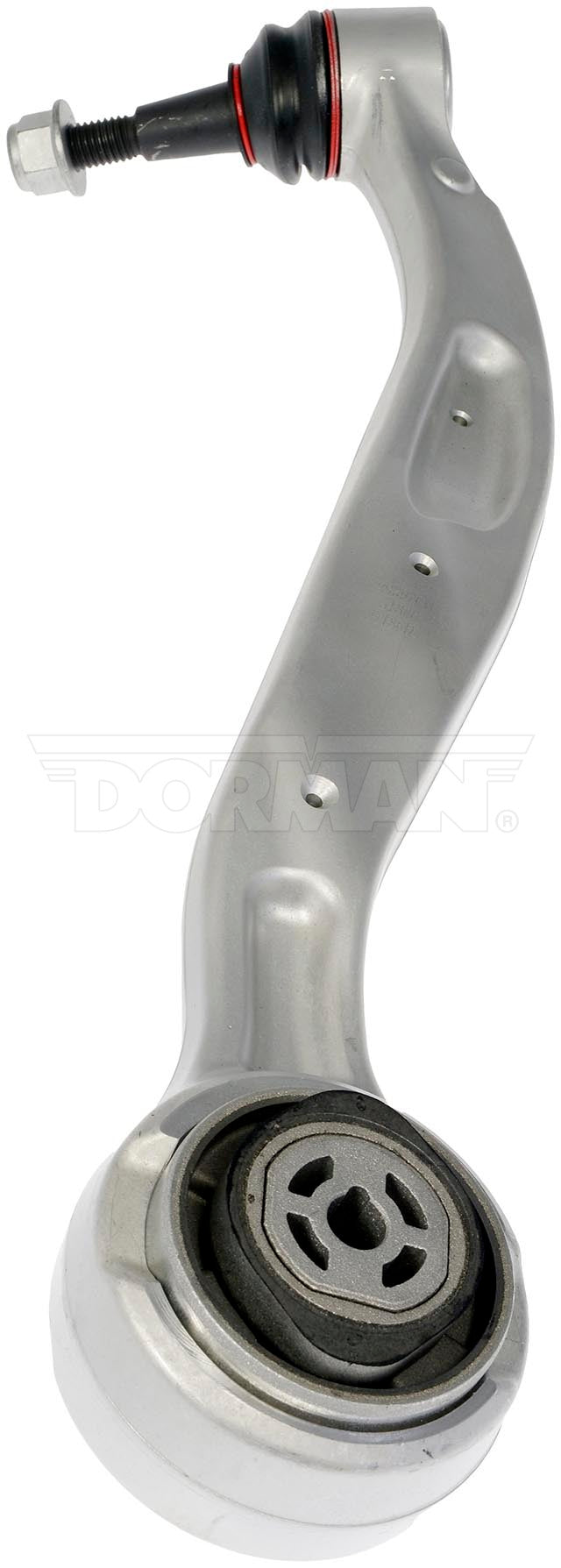

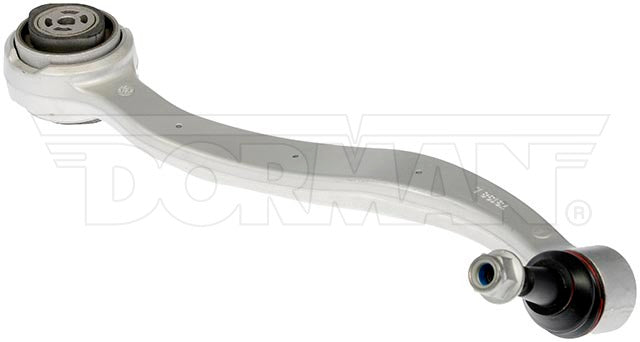

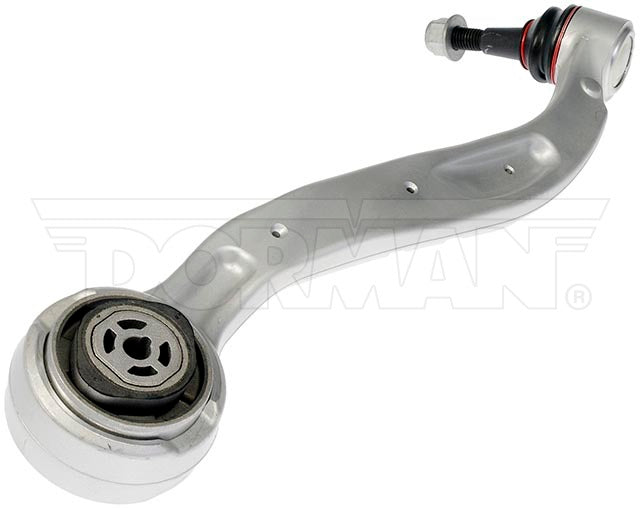

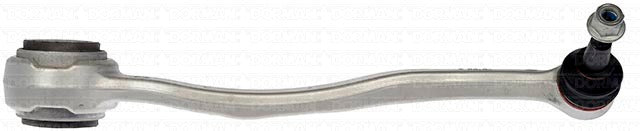

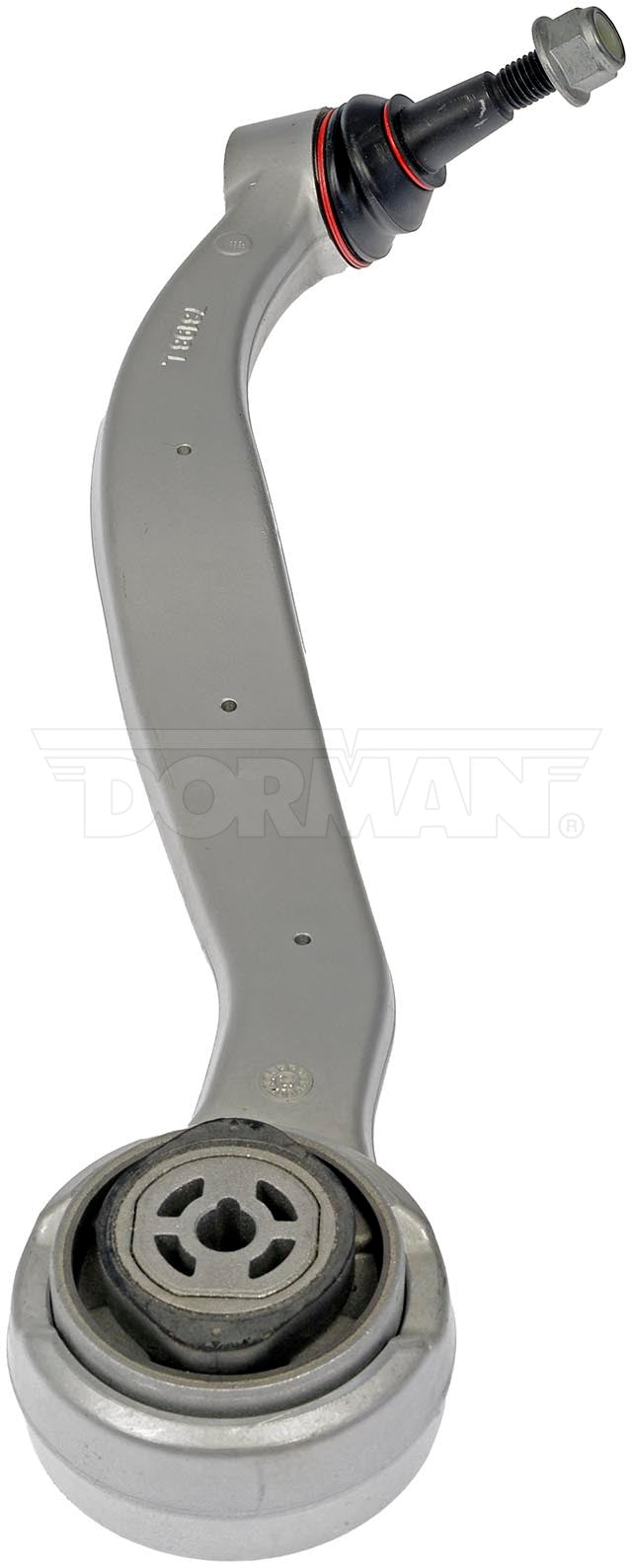

Dorman 526-303 Front Left Lower Control Arm w/ Ball Joint 16-25 Chevy Camaro
Confirm Fitment Before You Buy
Not sure it fits? Message Year/Make/Model/Engine (2WD/4WD if applicable) and we’ll help confirm compatibility.
Why buy from Koskowski Automotive?
• 50+ years (since 1972) • Dorman Authorized Seller • Fast shipping • Easy returns
Regular price
$87.99
Select your vehicle at the top of the page to check fitment.
Couldn't load pickup availability
Vehicle Fitment: Use the table below to match your exact configuration. If you don’t see your exact setup, message us before ordering.
This suspension control arm and ball joint assembly is a direct replacement for the original equipment on specific vehicle applications. An industry-leading evaluation process ensures a smooth ride, directional stability and predictable dynamics.
- Trustworthy replacement - this control arm and ball joint assembly directly replaces the original assembly on specific vehicle applications
- Complete repair - each assembly includes pre-installed ball joint and bushings, saving time and labor
- Quality engineering - underwent industry-leading testing to ensure a smooth, stable and safe ride
- Durably designed - additional coatings offer long-lasting rust and corrosion resistance
Vehicle Fitment
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2020-2025 | Cadillac | CT5 | Front Left Lower Forward | |
| 2020-2024 | Chevrolet | Camaro | Front Left Lower Forward | |
| 2019 | Chevrolet | Camaro | Front Left Lower Forward | RWD |
| 2016-2018 | Chevrolet | Camaro | Front Left Lower Forward |
Please confirm the part number and your vehicle's year, make, model and engine before ordering. Questions? Message us with your VIN and we'll check fitment for you.
Specifications
| Brand | Dorman |
|---|---|
| Part Number | 526-303 |
| UPC | 885484873292 |
| Placement | Front, Left, Lower |
| Thread Direction | Clockwise (Right) |
| Length | 424.5 mm |
| Mounting Hardware Included | Yes |
| Adjustable | No |
| Bushing Material | Steel |
| Bushing Inside Diameter | 12.3 mm |
| Bushing Length | 69.5 mm |
| Bushing Color | Black |
| Finish | Powder Coated |
| Mounting Hole Quantity | 0 |
| Boot Material | Polychloroprene |
| Boot Color | Black |
| Cone Outside Diameter | 16.2 mm |
| Bearing Material | Polymer |
| Mounting Hole Diameter | 12.3 mm |
| Pre-Greased | Yes |
| Castle Nut Included | No |
| Grease Fitting Included | No |
| Bushings Included | Yes |
| Dust Boot Included | Yes |
| Ball Joint Mounting Type | Machined |
| Ball Joint Stud Type | Threaded |
| Ball Joint Included | Yes |
| Control Arm Construction | Casting/Forged |
| Control Arm Material | Aluminum |
| Cotter Pin Included | No |
| Grade Type | Standard Replacement |
| Locking Nut Included | Yes |
| Greaseable | No |
| Control Arm Maximum Width | 69.5 mm |
| Control Arm Color | Gray |
| Ball Joint Stud Length | 22.7 mm |
| Control Arm Maximum Length | 424.5 mm |
| Thread Size | 14 mm |
| Dust Boot Material | Polychloroprene |
| Attachments Included | Yes |
| Ball Joint Installed | Yes |
| Ball Joint Thread Diameter | 14 mm |
| Control Arm Type | Casting/Forged |
| Package Contents | 1 Control Arm; 1 Ball Joint; 1 Nut |
| Suspension Grade Type | Standard |
| Country of Origin | Taiwan |
| Warranty | Limited Lifetime |
OE & Interchange Numbers
| 84051643 | General Motors (OE) |
|---|---|
| 84918031 | General Motors (OE) |
| 84051641 | General Motors (OE) |
| 23317433 | General Motors (OE) |
| 84012305 | General Motors (OE) |
| CMS501314 | Interchange |
| CA5459 | Interchange |
| 4CB50642 | Interchange |
| 5CB503305 | Interchange |
| GS501281 | Interchange |
| CMS501281 | Interchange |
| RK623577 | Interchange |
