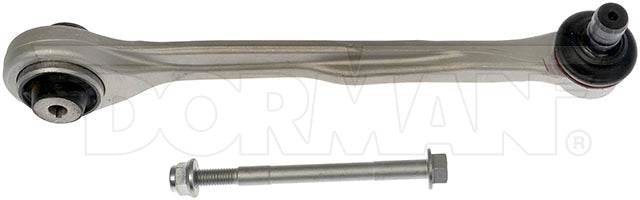

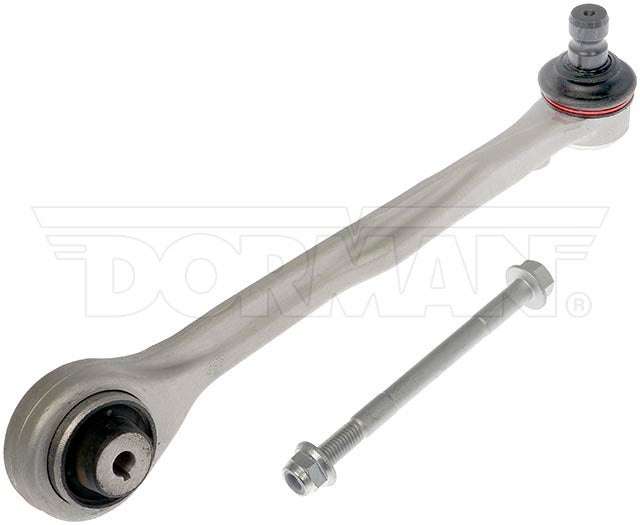

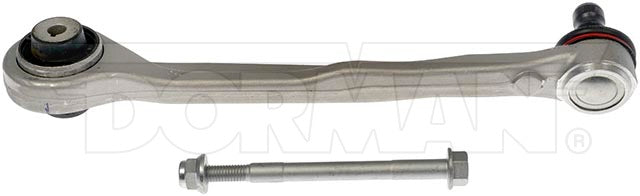

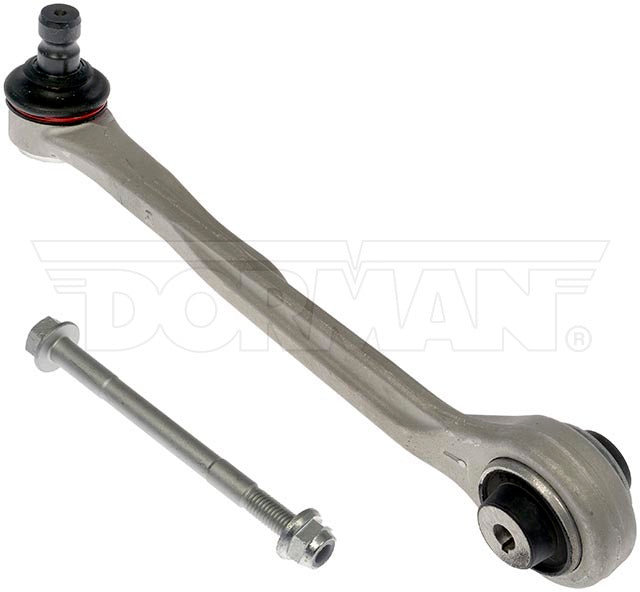

Dorman 526-567 Control Arm & Ball Joint Assembly 17-23 Audi SQ5 Q5 A5 S5
Confirm Fitment Before You Buy
Not sure it fits? Message Year/Make/Model/Engine (2WD/4WD if applicable) and we’ll help confirm compatibility.
Why buy from Koskowski Automotive?
• 50+ years (since 1972) • Dorman Authorized Seller • Fast shipping • Easy returns
Regular price
$56.29
Select your vehicle at the top of the page to check fitment.
Couldn't load pickup availability
Vehicle Fitment: Use the table below to match your exact configuration. If you don’t see your exact setup, message us before ordering.
This suspension control arm and ball joint assembly is a direct replacement for the original equipment on specific vehicle applications. An industry-leading evaluation process ensures a smooth ride, directional stability and predictable dynamics.
- Trustworthy replacement - this control arm and ball joint assembly directly replaces the original assembly on specific vehicle applications
- Complete repair - each assembly includes pre-installed ball joint and bushings, saving time and labor
- Quality engineering - underwent industry-leading testing to ensure a smooth, stable and safe ride
- Durably designed - additional coatings offer long-lasting rust and corrosion resistance
Vehicle Fitment
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2017-2018 | Audi | A1 | ||
| 2018 | Audi | A5 | ||
| 2017-2018 | Audi | Q5 | ||
| 2017-2018 | Audi | S5 | ||
| 2017-2023 | Audi | SQ5 |
Please confirm the part number and your vehicle's year, make, model and engine before ordering. Questions? Message us with your VIN and we'll check fitment for you.
Specifications
| Brand | Dorman |
|---|---|
| Part Number | 526-567 |
| UPC | 194883385450 |
| Mounting Hardware Included | Yes |
| Adjustable | No |
| Bushing Material | Aluminum |
| Bushing Inside Diameter | 10.1 mm |
| Bushing Length | 50 mm |
| Mounting Hole Quantity | 1 |
| Mounting Hole Diameter | 10.1 mm |
| Pre-Greased | Yes |
| Grease Fitting Included | No |
| Bushings Included | Yes |
| Ball Joint Mounting Type | Machined |
| Ball Joint Stud Type | Pinch |
| Ball Joint Included | Yes |
| Control Arm Construction | Casting/Forged |
| Control Arm Material | Aluminum |
| Grade Type | Standard Replacement |
| Greaseable | No |
| Control Arm Maximum Width | 50 mm |
| Control Arm Color | Gray |
| Ball Joint Stud Length | 8.8 mm |
| Control Arm Maximum Length | 287.5 mm |
| Distance Between Bushings | 287.5 mm |
| Ball Joint Installed | Yes |
| Control Arm Type | Casting/Forged |
| Package Contents | 1 Control Arm; 1 Ball Joint; 1 Bolt |
| Country of Origin | Turkey |
| Warranty | Limited Lifetime |
OE & Interchange Numbers
| 4M0407505C | Volkswagen (OE) |
|---|---|
| 958407505C | Porsche (OE) |
| 4M0407505B | Volkswagen (OE) |
| 958407505B | Porsche (OE) |
| 2CB70191 | Interchange |
| CMS701154 | Interchange |
| GS701154 | Interchange |
| 102-8208 | Interchange |
| TC7779 | Interchange |
| RK623679 | Interchange |
