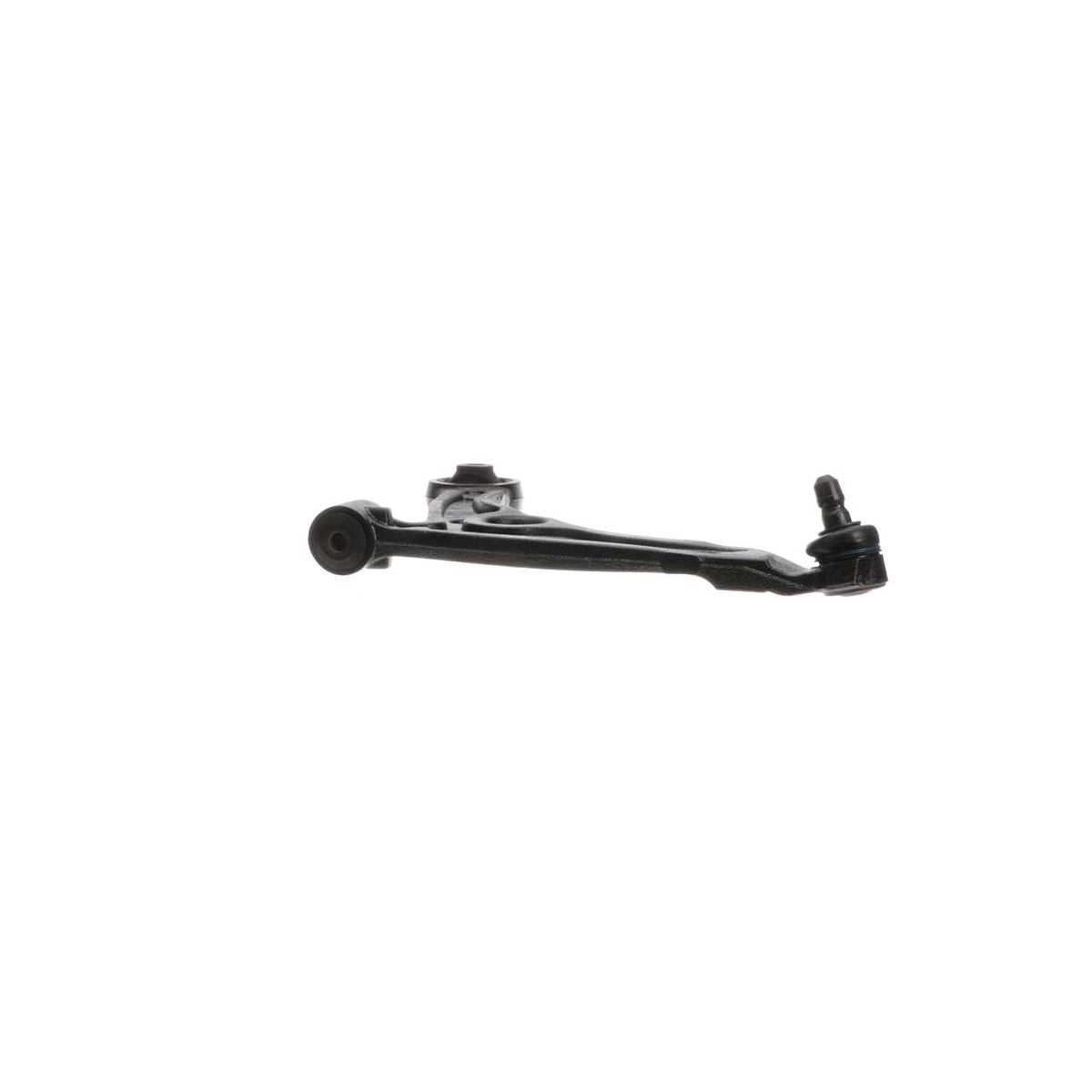

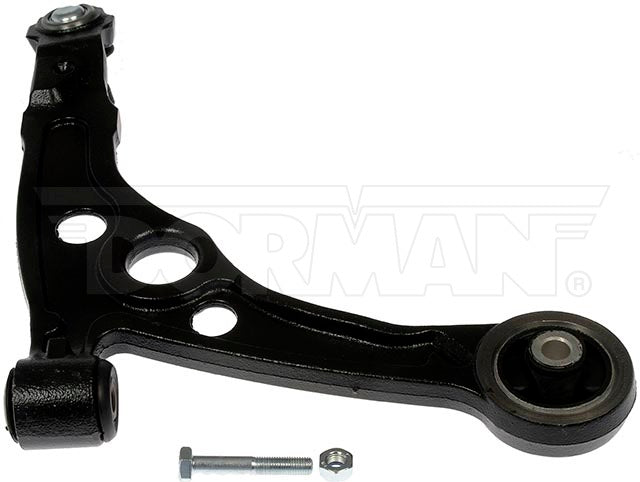

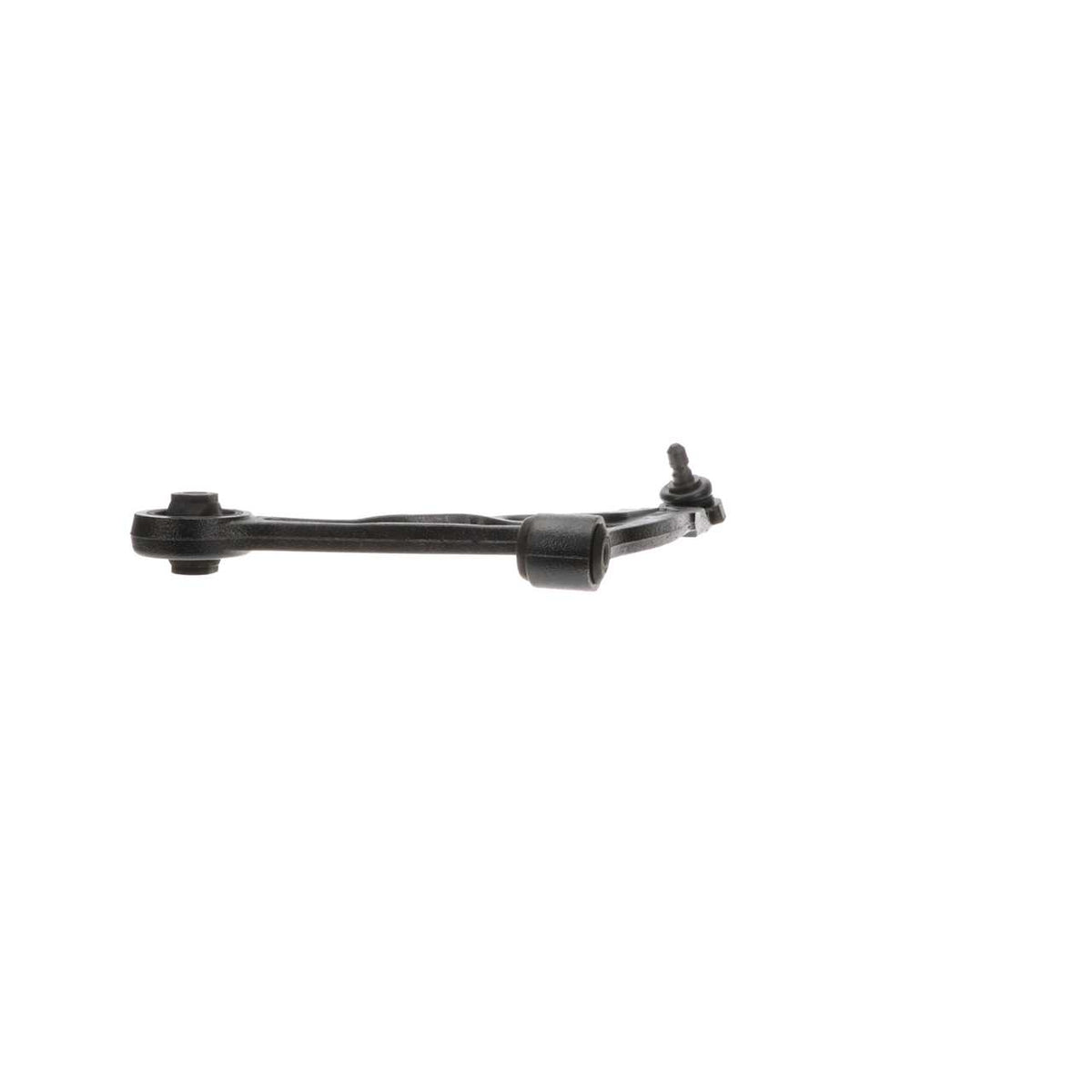

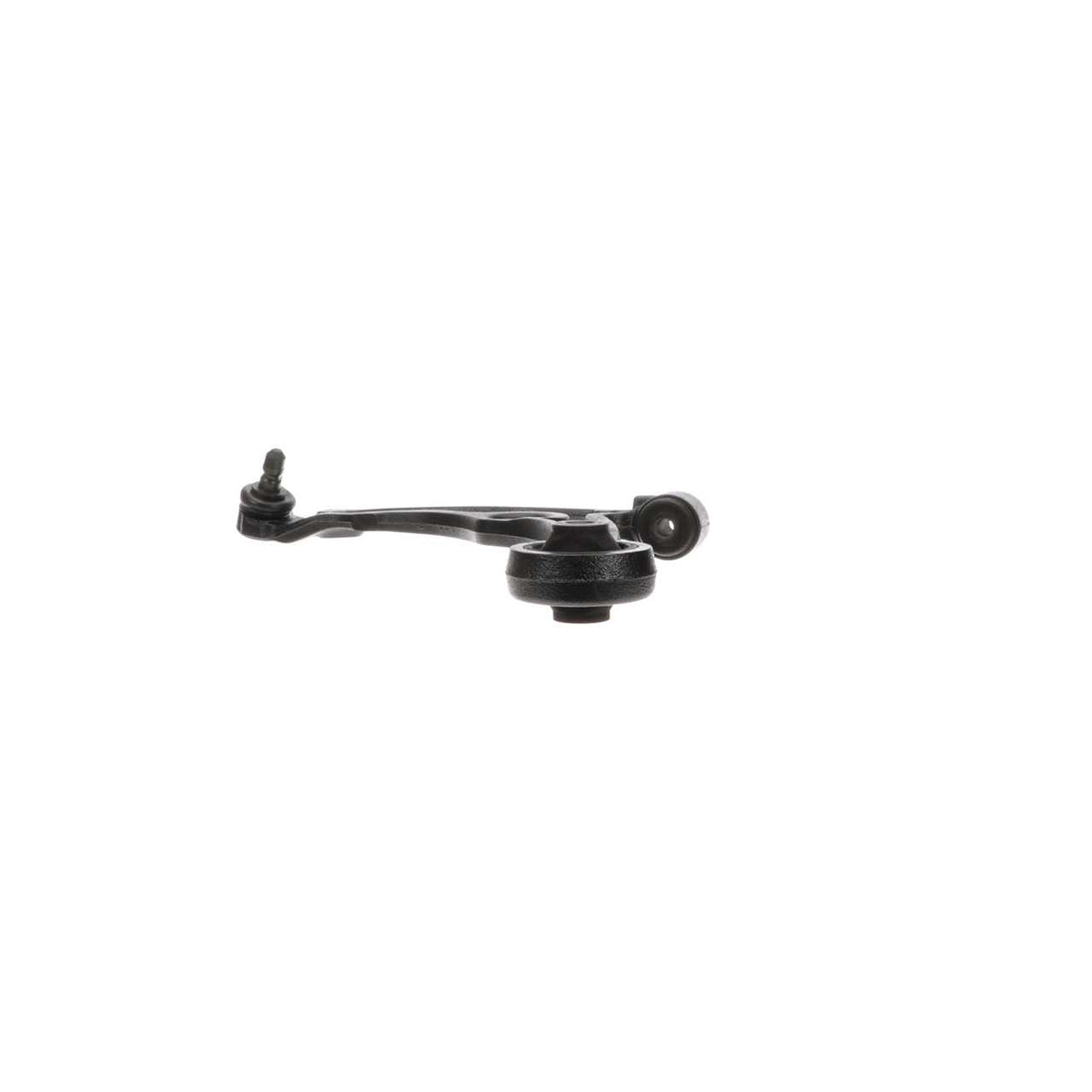

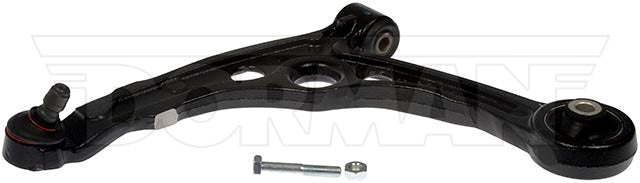

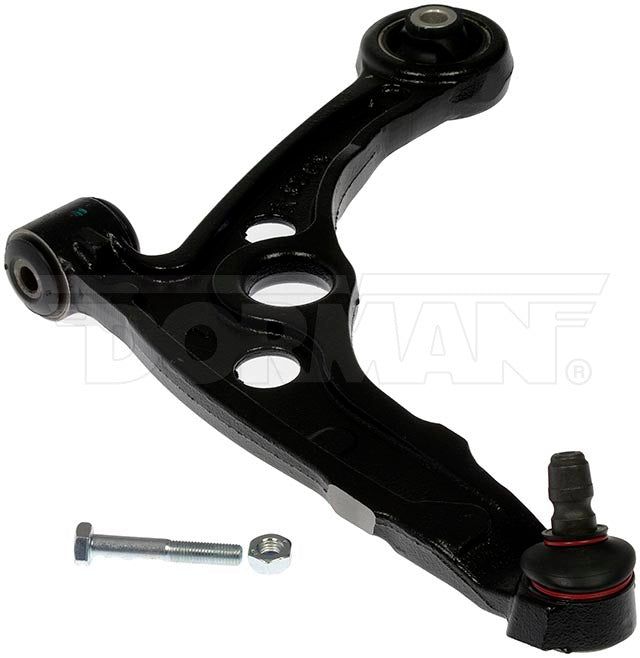

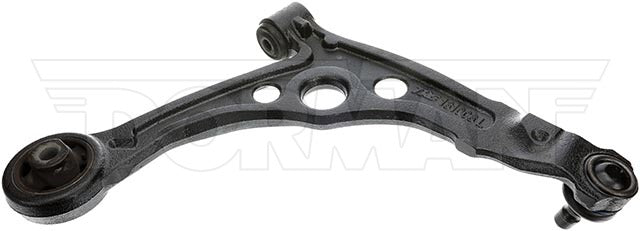

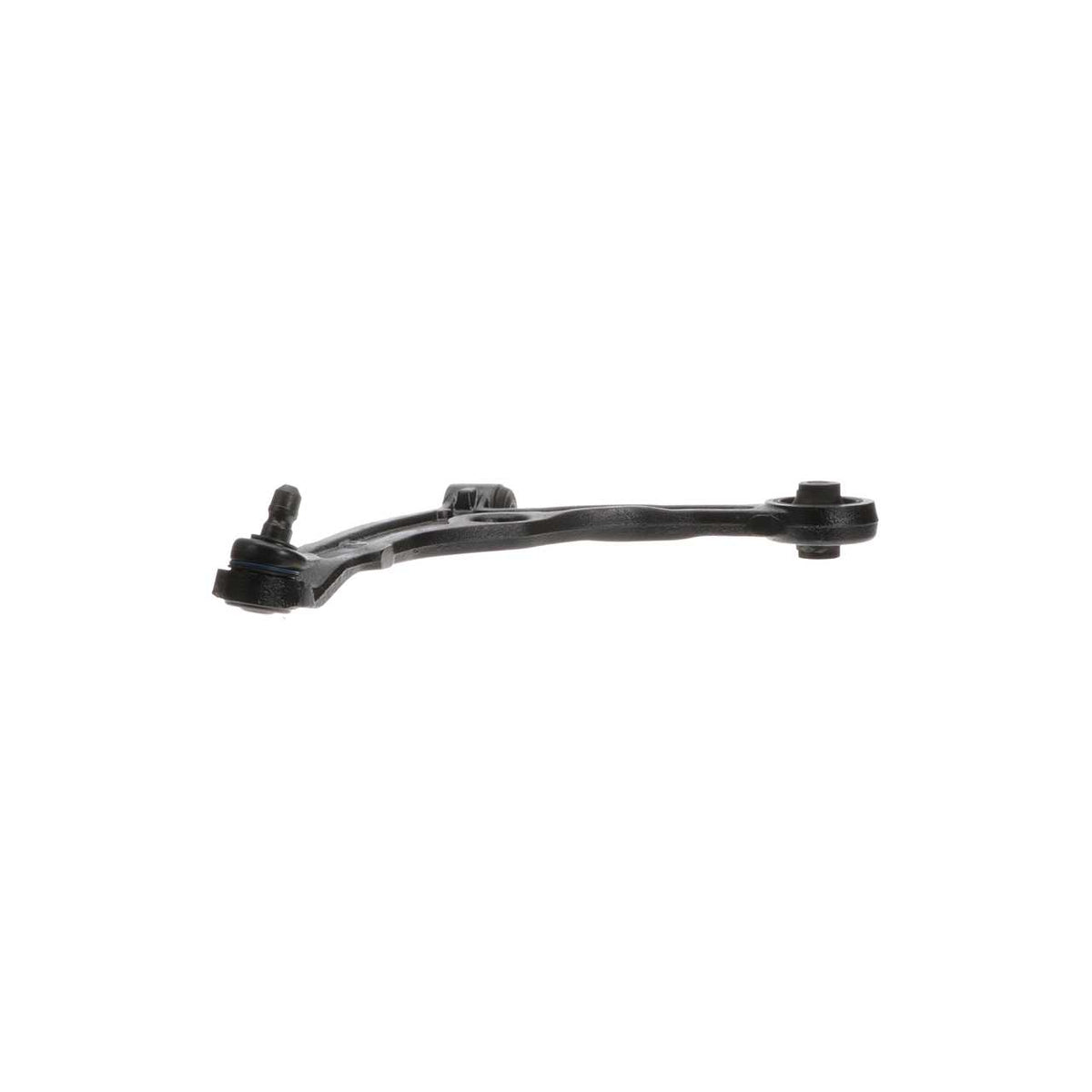

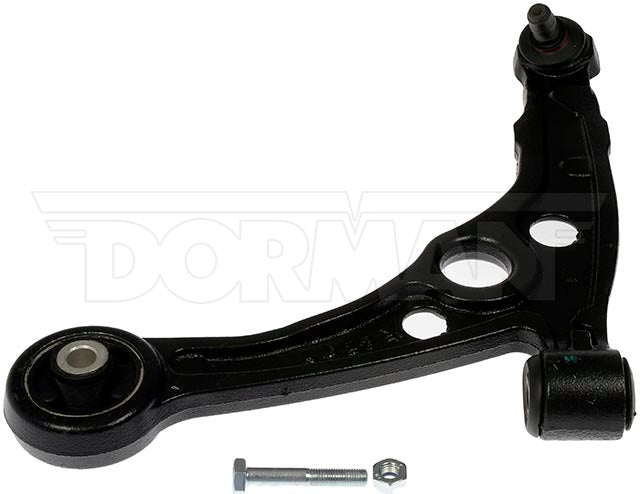

Dorman 526-611 Front Left Lower Control Arm & Ball Joint Assembly 12-19 Fiat 500
Confirm Fitment Before You Buy
Not sure it fits? Message Year/Make/Model/Engine (2WD/4WD if applicable) and we’ll help confirm compatibility.
Why buy from Koskowski Automotive?
• 50+ years (since 1972) • Dorman Authorized Seller • Fast shipping • Easy returns
Regular price
$81.00
Select your vehicle at the top of the page to check fitment.
Couldn't load pickup availability
Vehicle Fitment: Use the table below to match your exact configuration. If you don’t see your exact setup, message us before ordering.
This suspension control arm and ball joint assembly is a direct replacement for the original equipment on specific vehicle applications. An industry-leading evaluation process ensures a smooth ride, directional stability and predictable dynamics.
- Trustworthy replacement - this control arm and ball joint assembly directly replaces the original assembly on specific vehicle applications
- Complete repair - each assembly includes pre-installed ball joint and bushings, saving time and labor
- Quality engineering - underwent industry-leading testing to ensure a smooth, stable and safe ride
- Durably designed - additional coatings offer long-lasting rust and corrosion resistance
Vehicle Fitment
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2017-2019 | Fiat | 500 | Front Left Lower | w/Cast Iron Arms |
| 2016 | Fiat | 500 | Front Left Lower | |
| 2013-2015 | Fiat | 500 | Front Left Lower | w/Cast Iron Arms |
| 2012 | Fiat | 500 | Front Left Lower | 12.50 In. Length from Ball Joint Center to Small Bushing; w/Cast Iron Arms |
Please confirm the part number and your vehicle's year, make, model and engine before ordering. Questions? Message us with your VIN and we'll check fitment for you.
Specifications
| Brand | Dorman |
|---|---|
| Part Number | 526-611 |
| UPC | 889245209887 |
| Placement | Front, Left, Lower |
| Mounting Hardware Included | No |
| Adjustable | No |
| Bushing Material | Rubber |
| Mounting Hole Quantity | 2 |
| Mounting Hole Diameter | 14.2 mm |
| Pre-Greased | Yes |
| Grease Fitting Included | No |
| Bushings Included | Yes |
| Ball Joint Stud Type | Pinch |
| Ball Joint Included | Yes |
| Control Arm Material | Steel |
| Grade Type | Standard Replacement |
| Control Arm Maximum Width | 316.5 mm |
| Control Arm Color | Black |
| Ball Joint Stud Length | 20.5 mm |
| Control Arm Maximum Length | 274.5 mm |
| Ball Joint Installed | Yes |
| Ball Joint Thread Diameter | 15.4 mm |
| Control Arm Type | Stamped |
| Package Contents | 1 Control Arm |
| Country of Origin | Turkey |
| Warranty | Limited Lifetime |
OE & Interchange Numbers
| 68191509AD | Chrysler (OE) |
|---|---|
| 68191509AA | Fiat (OE) |
| 68245041AC | Chrysler (OE) |
| 68245041AB | Chrysler (OE) |
| 4877351AC | Chrysler (OE) |
| 68191509AB | Chrysler (OE) |
| 68191509AC | Chrysler (OE) |
| 68245041AA | Chrysler (OE) |
| 4877351AD | Chrysler (OE) |
| 4877351AB | Chrysler (OE) |
| RK622861 | Interchange |
| 2608497 | Interchange |
| GS101461 | Interchange |
| 4CB10712 | Interchange |
| JTC3054 | Interchange |
| CMS101461 | Interchange |
| 1507013 | Interchange |
| TC5869 | Interchange |
