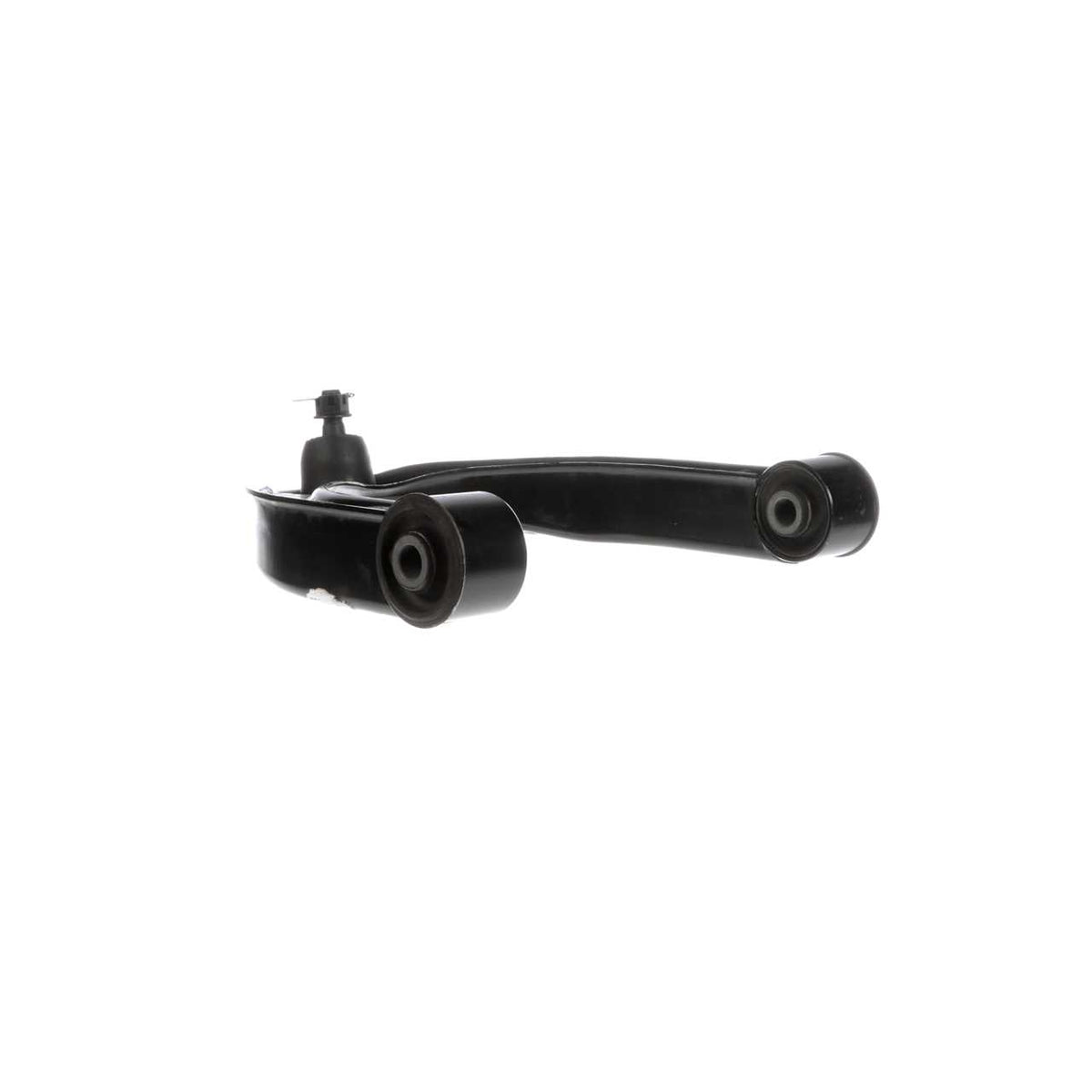

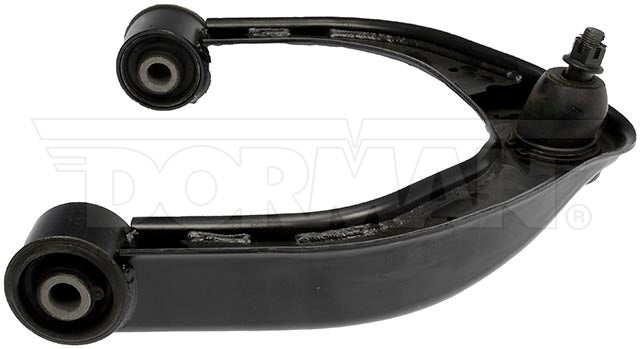

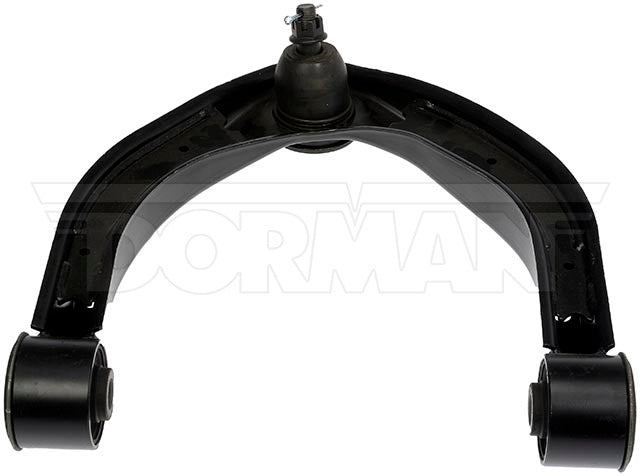

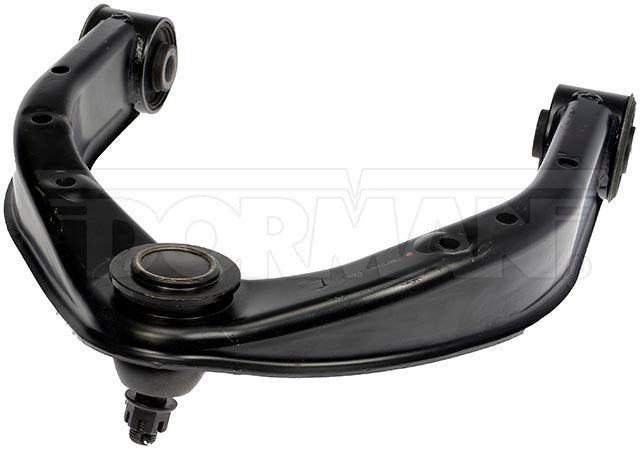

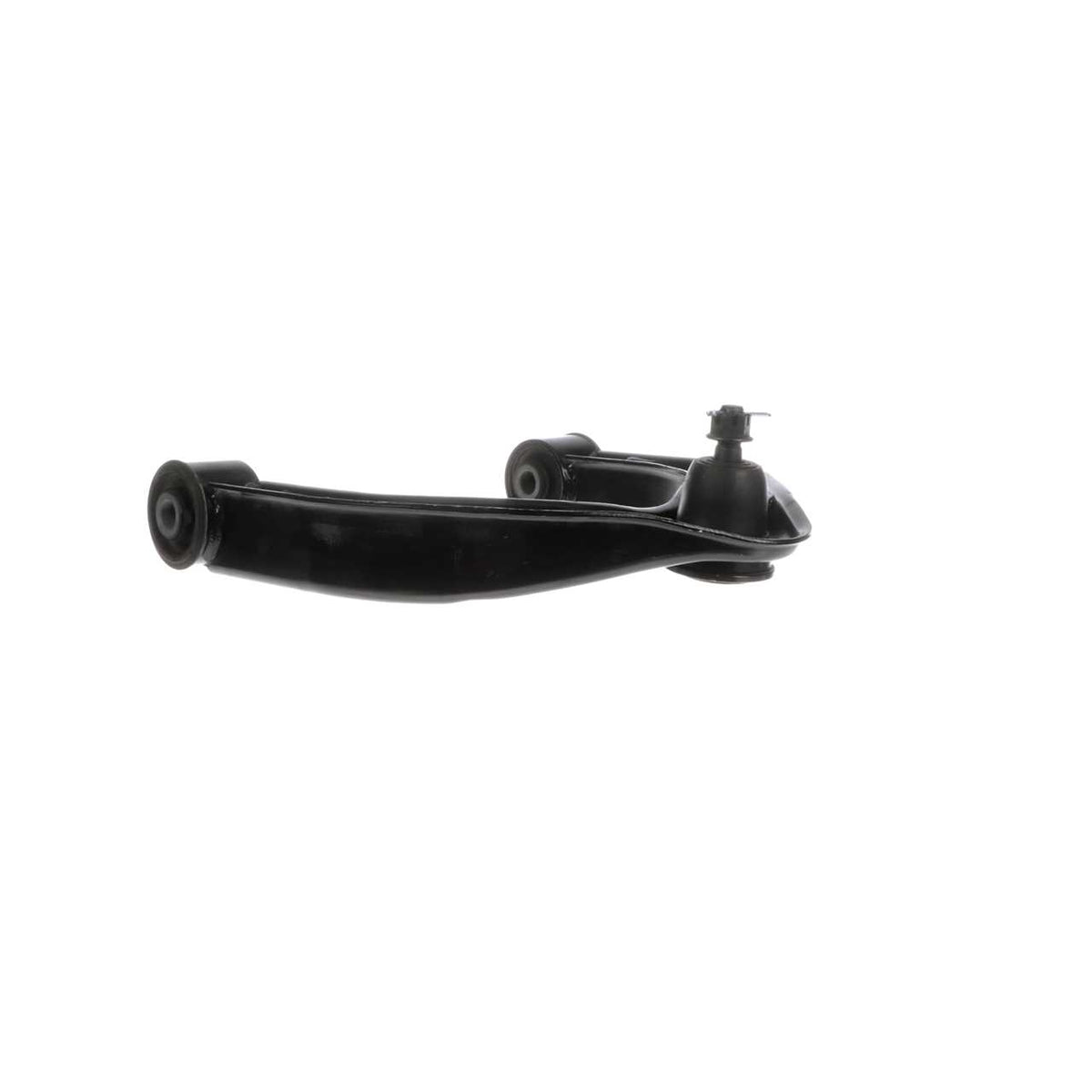

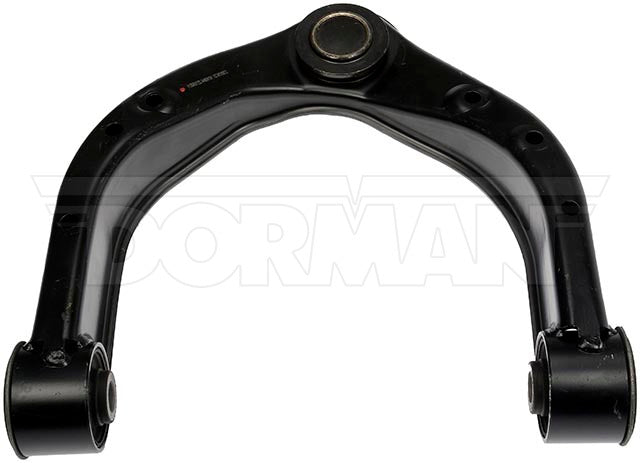

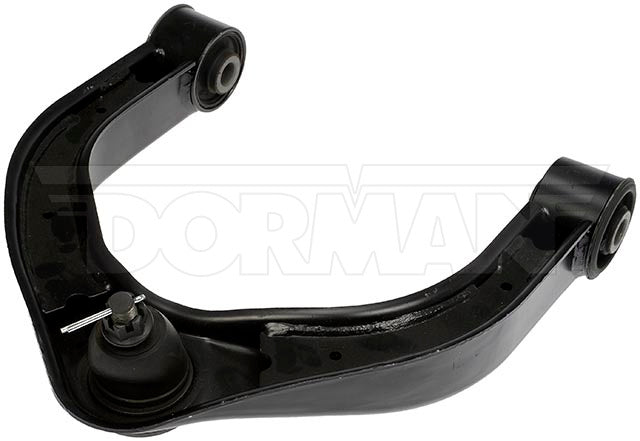

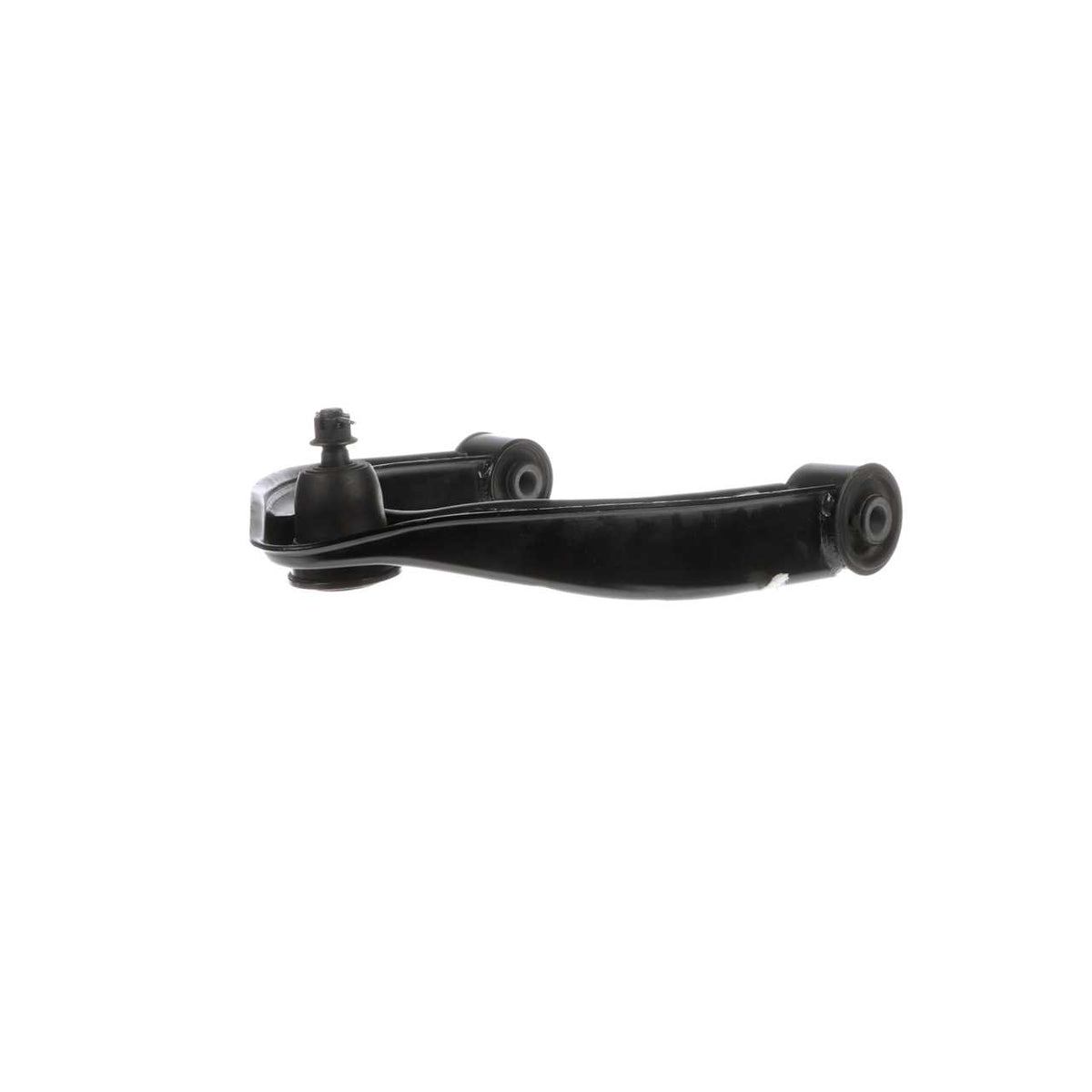

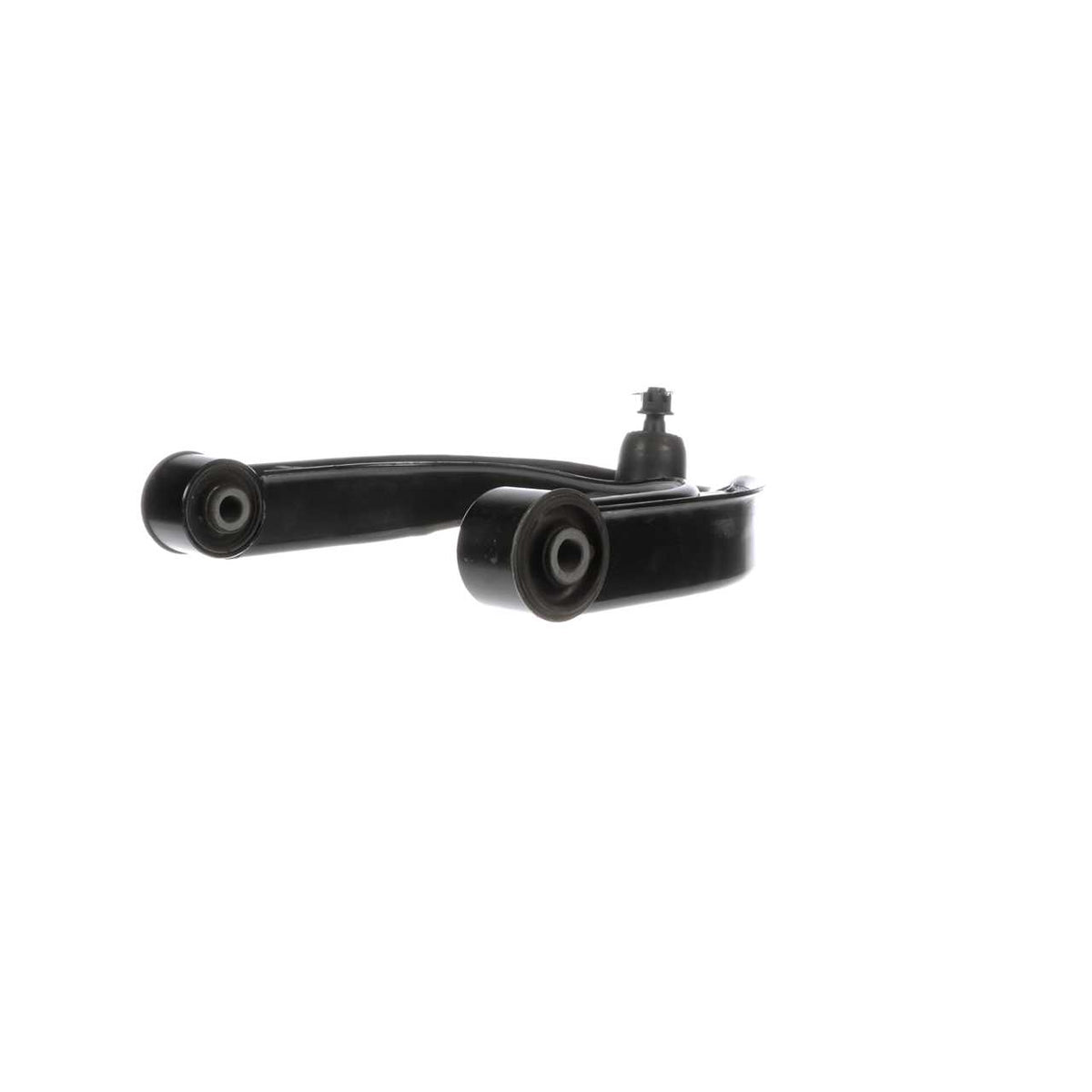

Dorman 527-002 Front Right Upper Control Arm w/ Ball Joint 12-24 Nissan TITAN XD
Confirm Fitment Before You Buy
Not sure it fits? Message Year/Make/Model/Engine (2WD/4WD if applicable) and we’ll help confirm compatibility.
Why buy from Koskowski Automotive?
• 50+ years (since 1972) • Dorman Authorized Seller • Fast shipping • Easy returns
Regular price
$76.09
Select your vehicle at the top of the page to check fitment.
Couldn't load pickup availability
Vehicle Fitment: Use the table below to match your exact configuration. If you don’t see your exact setup, message us before ordering.
This suspension control arm and ball joint assembly is a direct replacement for the original equipment on specific vehicle applications. An industry-leading evaluation process ensures a smooth ride, directional stability and predictable dynamics.
- Trustworthy replacement - this control arm and ball joint assembly directly replaces the original assembly on specific vehicle applications
- Complete repair - each assembly includes pre-installed ball joint and bushings, saving time and labor
- Quality engineering - underwent industry-leading testing to ensure a smooth, stable and safe ride
- Durably designed - additional coatings offer long-lasting rust and corrosion resistance
Vehicle Fitment
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2012-2021 | Nissan | NV1500 | Front Right Upper | |
| 2012-2021 | Nissan | NV2500 | Front Right Upper | |
| 2012-2021 | Nissan | NV3500 | Front Right Upper | |
| 2016-2024 | Nissan | TITAN XD | Front Right Upper |
Please confirm the part number and your vehicle's year, make, model and engine before ordering. Questions? Message us with your VIN and we'll check fitment for you.
Specifications
| Brand | Dorman |
|---|---|
| Part Number | 527-002 |
| UPC | 194883223936 |
| Placement | Front, Right, Upper |
| Mounting Hardware Included | Yes |
| Adjustable | No |
| Bushing Material | Steel |
| Bushing Inside Diameter | 16.2 mm |
| Bushing Length | 54.3 mm |
| Mounting Hole Quantity | 0 |
| Mounting Hole Diameter | 16.2 mm |
| Pre-Greased | Yes |
| Grease Fitting Included | No |
| Bushings Included | Yes |
| Ball Joint Mounting Type | Press In |
| Ball Joint Stud Type | Threaded |
| Ball Joint Included | Yes |
| Control Arm Construction | Stamped |
| Control Arm Material | Steel |
| Grade Type | Standard Replacement |
| Control Arm Maximum Width | 335.3 mm |
| Control Arm Color | Black |
| Ball Joint Stud Length | 22.5 mm |
| Control Arm Maximum Length | 255.8 mm |
| Distance Between Bushings | 335.3 mm |
| Ball Joint Installed | Yes |
| Ball Joint Thread Diameter | 14 mm |
| Control Arm Type | Stamped |
| Package Contents | 1 Control Arm; 1 Ball Joint; 1 Castle Nut; 1 Cotter Pin |
| Country of Origin | Taiwan |
| Warranty | Limited Lifetime |
OE & Interchange Numbers
| 545241PA0A | Nissan (OE) |
|---|---|
| 54524EZ50C | Nissan (OE) |
| 54524EZ50B | Nissan (OE) |
| 54524EZ50A | Nissan (OE) |
| 4CB30512 | Interchange |
| CMS301210 | Interchange |
| TC9500 | Interchange |
| GS301210 | Interchange |
| 4CB30507 | Interchange |
| RK623874 | Interchange |
| 2608743 | Interchange |
| 102-8401 | Interchange |
| CA10702 | Interchange |
