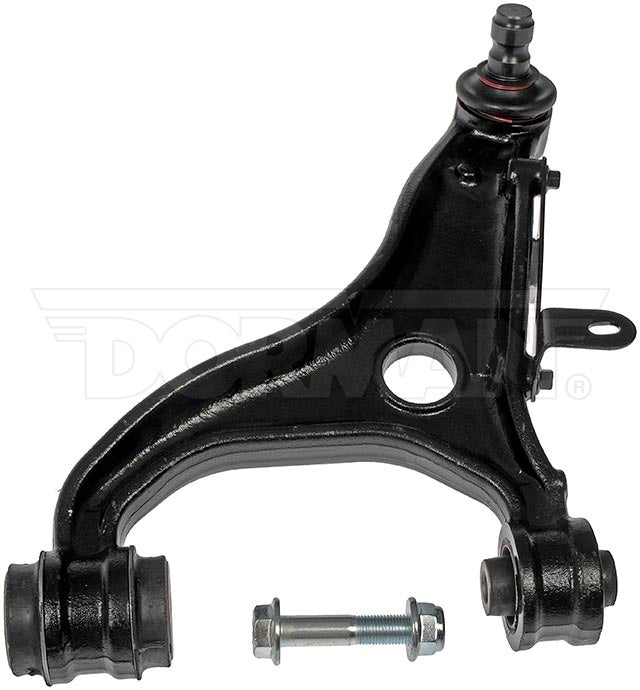

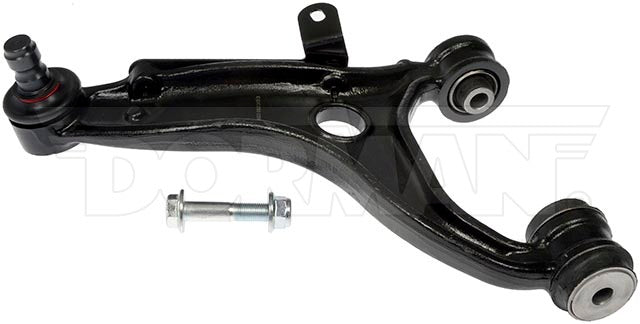

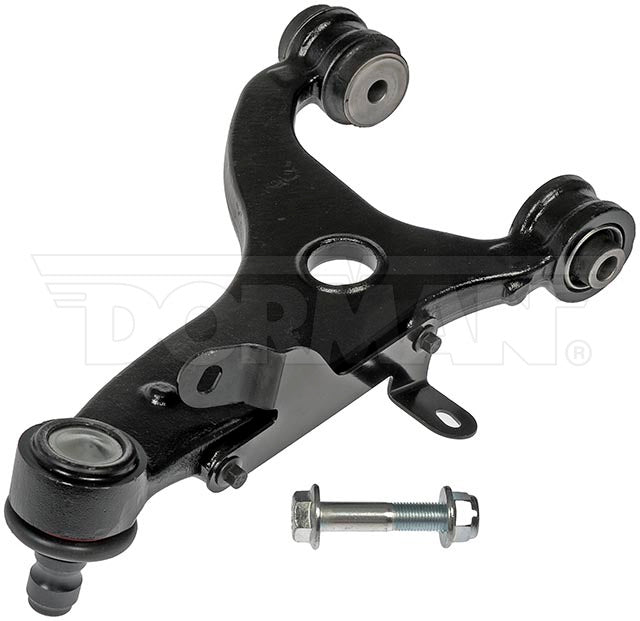

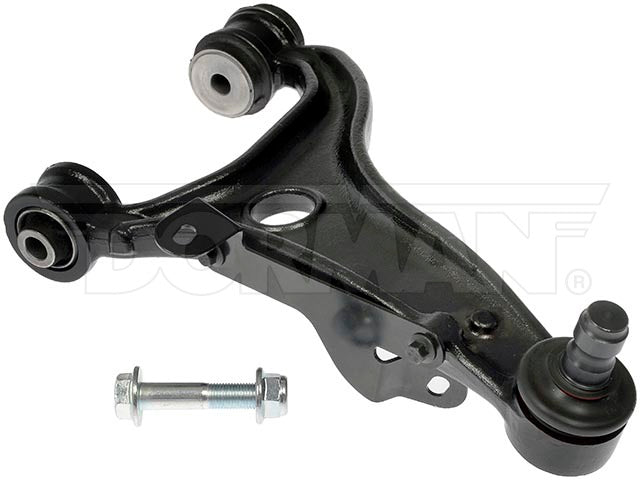

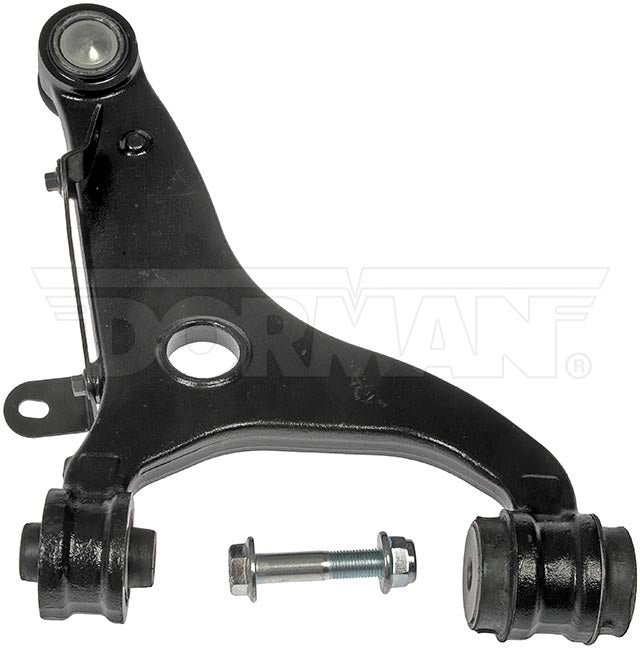

Dorman 527-022 Rear Right Upper Control Arm w/ Ball Joint 09-19 Subaru Forester
Confirm Fitment Before You Buy
Not sure it fits? Message Year/Make/Model/Engine (2WD/4WD if applicable) and we’ll help confirm compatibility.
Why buy from Koskowski Automotive?
• 50+ years (since 1972) • Dorman Authorized Seller • Fast shipping • Easy returns
Regular price
$93.70
Select your vehicle at the top of the page to check fitment.
Couldn't load pickup availability
Vehicle Fitment: Use the table below to match your exact configuration. If you don’t see your exact setup, message us before ordering.
This suspension control arm and ball joint assembly is a direct replacement for the original equipment on specific vehicle applications. An industry-leading evaluation process ensures a smooth ride, directional stability and predictable dynamics.
- Trustworthy replacement - this control arm and ball joint assembly directly replaces the original assembly on specific vehicle applications
- Complete repair - each assembly includes pre-installed ball joint and bushings, saving time and labor
- Quality engineering - underwent industry-leading testing to ensure a smooth, stable and safe ride
- Durably designed - additional coatings offer long-lasting rust and corrosion resistance
Vehicle Fitment
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2009-2013 | Subaru | Forester | Rear Right Upper | |
| 2010-2019 | Subaru | Outback | Rear Right Upper |
Please confirm the part number and your vehicle's year, make, model and engine before ordering. Questions? Message us with your VIN and we'll check fitment for you.
Specifications
| Brand | Dorman |
|---|---|
| Part Number | 527-022 |
| UPC | 889245672896 |
| Placement | Rear, Right, Upper |
| Length | 265 mm |
| Mounting Hardware Included | Yes |
| Adjustable | No |
| Bushing Material | Steel |
| Bushing Inside Diameter | 12.2 mm |
| Bushing Length | 60 mm; 50 mm |
| Bushing Color | Black |
| Finish | Powder Coated |
| Mounting Hole Quantity | 2 |
| Boot Material | Polychloroprene |
| Boot Color | Black |
| Bearing Material | Polymer |
| Mounting Hole Diameter | 12.2 mm |
| Reinforced | Yes |
| Pre-Greased | Yes |
| Castle Nut Included | No |
| Grease Fitting Included | No |
| Bushings Included | Yes |
| Dust Boot Included | Yes |
| Ball Joint Mounting Type | Machined |
| Ball Joint Stud Type | Pinch |
| Ball Joint Included | Yes |
| Control Arm Construction | Casting/Forged |
| Control Arm Material | Steel |
| Cotter Pin Included | No |
| Grade Type | Standard Replacement |
| Locking Nut Included | Yes |
| Greaseable | No |
| Control Arm Maximum Width | 228.5 mm |
| Control Arm Color | Black |
| Ball Joint Stud Length | 18 mm |
| Control Arm Maximum Length | 265 mm |
| Steering Type | Manual |
| Dust Boot Material | Polychloroprene |
| Distance Between Bushings | 228.5 mm |
| Attachments Included | Yes |
| Ball Joint Installed | Yes |
| Control Arm Type | Casting/Forged |
| Package Contents | 1 Control Arm; 1 Ball Joint; 1 Nut; 1 Bolt |
| Suspension Grade Type | Standard |
| Country of Origin | China |
| Warranty | Limited Lifetime |
OE & Interchange Numbers
| 20252AJ02A | Subaru (OE) |
|---|---|
| 20252AL02A | Subaru (OE) |
| 20252SC000 | Subaru (OE) |
| 3CB80300 | Interchange |
| TC8309 | Interchange |
| RK623394 | Interchange |
| CMS801200 | Interchange |
| CA9081 | Interchange |
| 2608716 | Interchange |
| GS801200 | Interchange |
