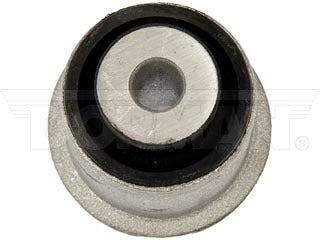

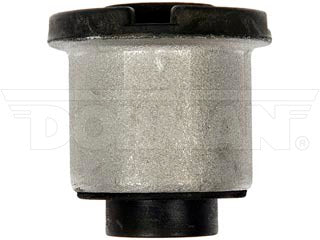

Dorman 533-684 Suspension - Control Arm Bushing
Confirm Fitment Before You Buy
Not sure it fits? Message Year/Make/Model/Engine (2WD/4WD if applicable) and we’ll help confirm compatibility.
Why buy from Koskowski Automotive?
• 50+ years (since 1972) • Dorman Authorized Seller • Fast shipping • Easy returns
Regular price
$0.00
Couldn't load pickup availability
Vehicle Fitment: Use the table below to match your exact configuration. If you don’t see your exact setup, message us before ordering.
Product Description
This suspension control arm bushing is precision-engineered and rigorously tested to provide reliable replacement for the original equipment on specific vehicles.
- Direct replacement - fits and performs like the original equipment bushing on specific vehicles
- Reliable fit - precision-engineered to match the design and dimensions of original components
- Durable construction - manufactured to strict standards using sturdy, safe materials
- Rigorously tested - thorough quality control measures ensure longevity
Detailed Applications
| Year | Make | Model | Configuration | Positions | Application Notes |
|---|---|---|---|---|---|
| 2022 | Land Rover | Range Rover | L405 Body Code | Front Upper | |
| 2021 | Land Rover | Range Rover | Front Upper | ||
| 2020 | Land Rover | Range Rover | Front Upper | ||
| 2019 | Land Rover | Range Rover | Front Upper | ||
| 2018 | Land Rover | Range Rover | Front Upper | ||
| 2017 | Land Rover | Range Rover | Front Upper | ||
| 2016 | Land Rover | Range Rover | Front Upper | ||
| 2015 | Land Rover | Range Rover | Front Upper | ||
| 2014 | Land Rover | Range Rover | Front Upper | ||
| 2013 | Land Rover | Range Rover | Front Upper |
Product Specifications
| Bracket Included: | No |
|---|---|
| Bushing 1 Width: | 66.2 mm |
| Bushing Material: | Steel; Rubber |
| Color: | Black; Gray |
| Color Code: | Black; Gray |
| Distance Between Mounting Holes: | 53 mm |
| Dust Boot Included: | No |
| Grade Type: | Regular |
| Hardware Included: | No |
| Height: | 53 mm |
| Inside Diameter: | 10.2 mm |
| Item Grade: | Standard Replacement |
| Length: | 53 mm |
| Material: | Steel; Rubber |
| Mounting Hardware Included: | No |
| Mounting Hole Diameter: | 10.2 mm |
| Mounting Type: | Bolt On |
| Outside Diameter: | 42 mm |
| Package Contents: | 1 Bushing |
| Packaging Type: | Box |
| Wall Thickness: | 15.7 mm |
| Width: | 53 mm |
OE Numbers
| NON-DIRECT OE CROSS | |
|---|---|
| LR034211 | TATA MOTORS |
| LR034212 | BRITISH LEYLAND |
| LR034213 | BRITISH LEYLAND |
| LR034214 | TATA MOTORS |
| LR034215 | BRITISH LEYLAND |
| LR034216 | BRITISH LEYLAND |
| LR148192 | TATA MOTORS |
| LR148193 | TATA MOTORS |
