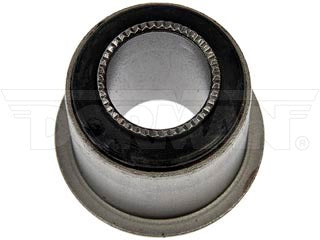

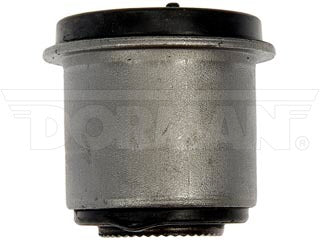

Dorman 533-977 Suspension - Control Arm Bushing
Confirm Fitment Before You Buy
Not sure it fits? Message Year/Make/Model/Engine (2WD/4WD if applicable) and we’ll help confirm compatibility.
Why buy from Koskowski Automotive?
• 50+ years (since 1972) • Dorman Authorized Seller • Fast shipping • Easy returns
Regular price
$0.00
Couldn't load pickup availability
Vehicle Fitment: Use the table below to match your exact configuration. If you don’t see your exact setup, message us before ordering.
Product Description
This suspension control arm bushing is precision-engineered and rigorously tested to provide reliable replacement for the original equipment on specific vehicles.
- Direct replacement - fits and performs like the original equipment bushing on specific vehicles
- Reliable fit - precision-engineered to match the design and dimensions of original components
- Durable construction - manufactured to strict standards using sturdy, safe materials
- Rigorously tested - thorough quality control measures ensure longevity
Detailed Applications
| Year | Make | Model | Configuration | Positions | Application Notes |
|---|---|---|---|---|---|
| 1970 | Buick | Electra | Front Upper | 38.1 mm O.D. | |
| 1970 | Buick | Estate Wagon | Front Upper | 38.1 mm O.D. | |
| 1970 | Buick | LeSabre | Front Upper | 38.1 mm O.D. | |
| 1970 | Buick | Riviera | Front Upper | 38.1 mm O.D. | |
| 1970 | Buick | Wildcat | Front Upper | 38.1 mm O.D. | |
| 1969 | Buick | Electra | Front Upper | 38.1 mm O.D. | |
| 1969 | Buick | LeSabre | Front Upper | 38.1 mm O.D. | |
| 1969 | Buick | Riviera | Front Upper | 38.1 mm O.D. | |
| 1969 | Buick | Wildcat | Front Upper | 38.1 mm O.D. | |
| 1968 | Buick | Electra | Front Upper | 38.1 mm O.D. | |
| 1968 | Buick | LeSabre | Front Upper | 38.1 mm O.D. | |
| 1968 | Buick | Riviera | Front Upper | 38.1 mm O.D. | |
| 1968 | Buick | Wildcat | Front Upper | 38.1 mm O.D. | |
| 1968 | Cadillac | Calais | Front Upper | 38.1 mm O.D. | |
| 1968 | Cadillac | Commercial Chassis | Front Upper | 38.1 mm O.D. | |
| 1968 | Cadillac | DeVille | Front Upper | 38.1 mm O.D. | |
| 1968 | Cadillac | Fleetwood | Front Upper | 38.1 mm O.D. | |
| 1967 | Buick | Electra | Front Upper | 38.1 mm O.D. | |
| 1967 | Buick | LeSabre | Front Upper | 38.1 mm O.D. | |
| 1967 | Buick | Riviera | Front Upper | 38.1 mm O.D. | |
| 1967 | Buick | Wildcat | Front Upper | 38.1 mm O.D. | |
| 1967 | Cadillac | Calais | Front Upper | 38.1 mm O.D. | |
| 1967 | Cadillac | Commercial Chassis | Front Upper | 38.1 mm O.D. | |
| 1967 | Cadillac | DeVille | Front Upper | 38.1 mm O.D. | |
| 1967 | Cadillac | Fleetwood | Front Upper | 38.1 mm O.D. | |
| 1966 | Buick | Electra | Front Upper | 38.1 mm O.D. | |
| 1966 | Buick | LeSabre | Front Upper | 38.1 mm O.D. | |
| 1966 | Buick | Riviera | Front Upper | 38.1 mm O.D. | |
| 1966 | Buick | Wildcat | Front Upper | 38.1 mm O.D. | |
| 1966 | Cadillac | Calais | Front Upper | 38.1 mm O.D. | |
| 1966 | Cadillac | Commercial Chassis | Front Upper | 38.1 mm O.D. | |
| 1966 | Cadillac | DeVille | Front Upper | 38.1 mm O.D. | |
| 1966 | Cadillac | Eldorado | Front Upper | 38.1 mm O.D. | |
| 1966 | Cadillac | Fleetwood | Front Upper | 38.1 mm O.D. | |
| 1965 | Cadillac | Calais | Front Upper | 38.1 mm O.D. | |
| 1965 | Cadillac | Commercial Chassis | Front Upper | 38.1 mm O.D. | |
| 1965 | Cadillac | DeVille | Front Upper | 38.1 mm O.D. | |
| 1965 | Cadillac | Eldorado | Front Upper | 38.1 mm O.D. | |
| 1965 | Cadillac | Fleetwood | Front Upper | 38.1 mm O.D. | |
| 1964 | Cadillac | Commercial Chassis | Front Upper | 38.1 mm O.D. | |
| 1964 | Cadillac | DeVille | Front Upper | 38.1 mm O.D. | |
| 1964 | Cadillac | Series 60 Fleetwood | Front Upper | 38.1 mm O.D. | |
| 1964 | Cadillac | Series 62 | Front Upper | 38.1 mm O.D. | |
| 1964 | Cadillac | Series 75 Fleetwood | Front Upper | 38.1 mm O.D. | |
| 1963 | Cadillac | Commercial Chassis | Front Upper | 38.1 mm O.D. | |
| 1963 | Cadillac | DeVille | Front Upper | 38.1 mm O.D. | |
| 1963 | Cadillac | Series 60 Fleetwood | Front Upper | 38.1 mm O.D. | |
| 1963 | Cadillac | Series 62 | Front Upper | 38.1 mm O.D. | |
| 1963 | Cadillac | Series 75 Fleetwood | Front Upper | 38.1 mm O.D. | |
| 1962 | Cadillac | Commercial Chassis | Front Upper | 38.1 mm O.D. |
Product Specifications
| Bracket Included: | No |
|---|---|
| Bushing 1 Width: | 66.2 mm |
| Bushing Material: | Rubber |
| Color: | Black |
| Color Code: | Black; Gray |
| Distance Between Mounting Holes: | 44 mm |
| Dust Boot Included: | No |
| Grade Type: | Regular |
| Hardware Included: | No |
| Height: | 44 mm |
| Inside Diameter: | 12.2 mm |
| Item Grade: | Standard Replacement |
| Length: | 60 mm |
| Material: | Steel; Rubber |
| Mounting Hardware Included: | No |
| Mounting Hole Diameter: | 20.7 mm |
| Mounting Type: | Bushing |
| Outside Diameter: | 60 mm |
| Package Contents: | 1 Bushing |
| Packaging Type: | Box |
| Wall Thickness: | 23.8 mm |
| Width: | 60 mm |
OE Numbers
| DIRECT OE CROSS | |
|---|---|
| 1376957 | GENERAL MOTORS |
