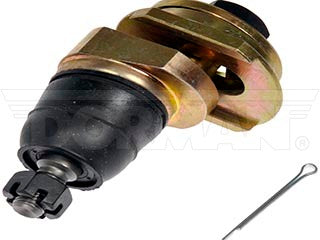

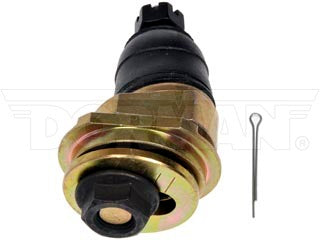

Dorman 539-754 Alignment - Caster / Camber Ball Joint
Confirm Fitment Before You Buy
Not sure it fits? Message Year/Make/Model/Engine (2WD/4WD if applicable) and we’ll help confirm compatibility.
Why buy from Koskowski Automotive?
• 50+ years (since 1972) • Dorman Authorized Seller • Fast shipping • Easy returns
Regular price
$0.00
Couldn't load pickup availability
Vehicle Fitment: Use the table below to match your exact configuration. If you don’t see your exact setup, message us before ordering.
Product Description
This alignment caster and camber ball joint is precision-engineered and rigorously tested to provide reliable replacement for the original equipment on specific vehicles.
- Direct replacement - fits and performs like the original equipment on specific vehicles
- Reliable fit - precision-engineered to match the design and dimensions of original components
- Durable construction - manufactured to strict standards using sturdy, safe materials
- Rigorously tested - thorough quality control measures ensure longevity
Detailed Applications
| Year | Make | Model | Configuration | Positions | Application Notes |
|---|---|---|---|---|---|
| 2001 | Honda | Prelude | Base Submodel | Rear Upper | Adjusts Camber +1.50 Degrees to +3.00 Degrees |
| 2000 | Honda | Prelude | Base Submodel | Rear Upper | Adjusts Camber +1.50 Degrees to +3.00 Degrees |
| 1999 | Honda | Prelude | Base Submodel | Rear Upper | Adjusts Camber +1.50 Degrees to +3.00 Degrees |
| 1998 | Honda | Prelude | Type SH Submodel | Rear Upper | Adjusts Camber +1.50 Degrees to +3.00 Degrees |
| 1997 | Honda | Prelude | Base Submodel | Rear Upper | Adjusts Camber +1.50 Degrees to +3.00 Degrees |
| 1996 | Honda | Prelude | Front Upper; Rear Upper | Adjusts Camber +1.50 Degrees to +3.00 Degrees | |
| 1995 | Honda | Prelude | Front Upper; Rear Upper | Adjusts Camber +1.50 Degrees to +3.00 Degrees | |
| 1994 | Acura | Vigor | Front Upper | Adjusts Camber +1.50 Degrees to +3.00 Degrees | |
| 1994 | Honda | Prelude | Front Upper; Rear Upper | Adjusts Camber +1.50 Degrees to +3.00 Degrees | |
| 1993 | Acura | Vigor | Front Upper | Adjusts Camber +1.50 Degrees to +3.00 Degrees | |
| 1993 | Honda | Prelude | Front Upper; Rear Upper | Adjusts Camber +1.50 Degrees to +3.00 Degrees | |
| 1992 | Acura | Vigor | Front Upper | Adjusts Camber +1.50 Degrees to +3.00 Degrees | |
| 1992 | Honda | Prelude | Front Upper; Rear Upper | Adjusts Camber +1.50 Degrees to +3.00 Degrees |
Product Specifications
| Adjustable: | Yes |
|---|---|
| Adjustment Range: | +1.5 deg to +3 deg |
| Ball Joint Assembly: | Yes |
| Castle Nut Included: | Yes |
| Cotter Pin Hole: | Yes |
| Dust Boot Included: | Yes |
| Grade Type: | Regular |
| Greaseable: | No |
| Locking Nut Included: | Yes |
| Material: | Steel |
| Maximum Outside Diameter: | 48 mm |
| Mounting Hole Quantity: | 0 |
| Mounting Type: | Bolt On |
| Package Contents: | Ball Joint; Top Cap; Slide Plate; Castle Nut; Cotter Pin; Mounting Nut |
| Package Quantity: | 1 |
| Packaging Type: | Box |
| Selling Package Quantity UOM: | Piece |
| Stud Thread Diameter: | 10 mm |
| Stud Type: | Tapered |
| Suspension Grade Type: | Standard |
| Thread Pitch: | 1.25 mm |
