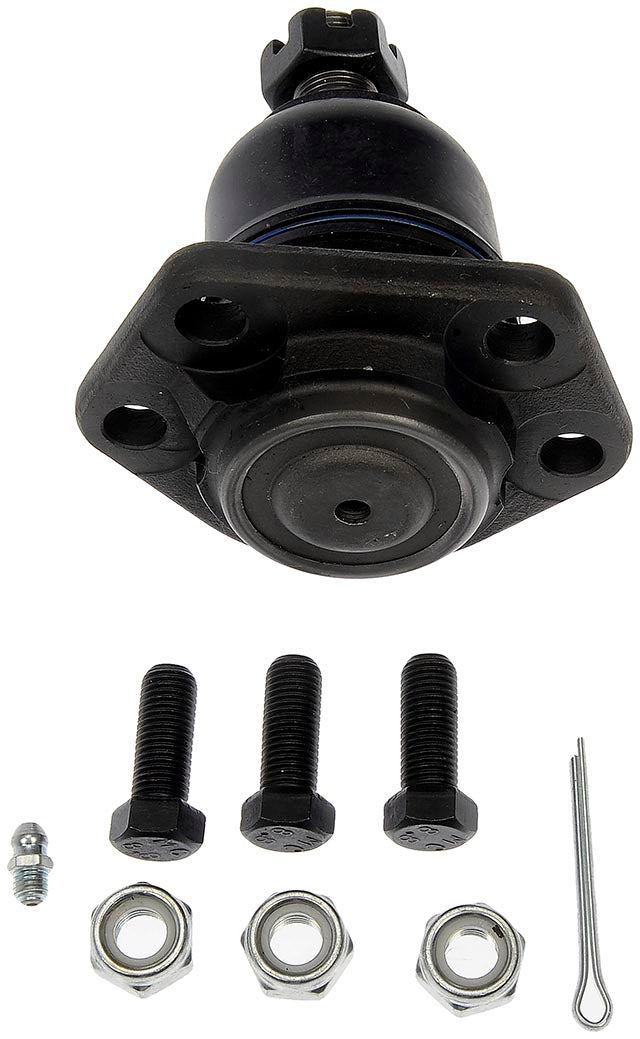

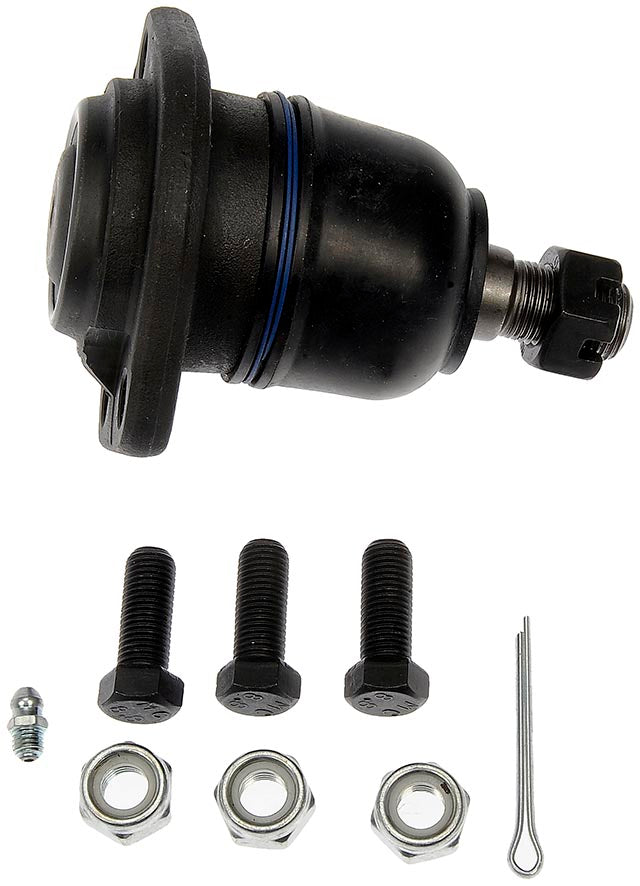

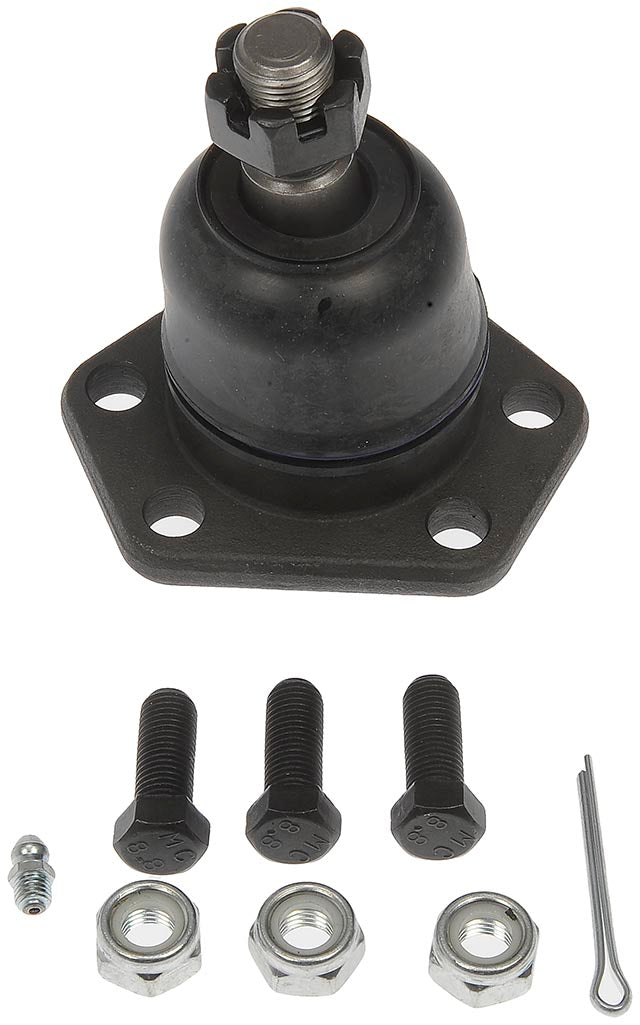

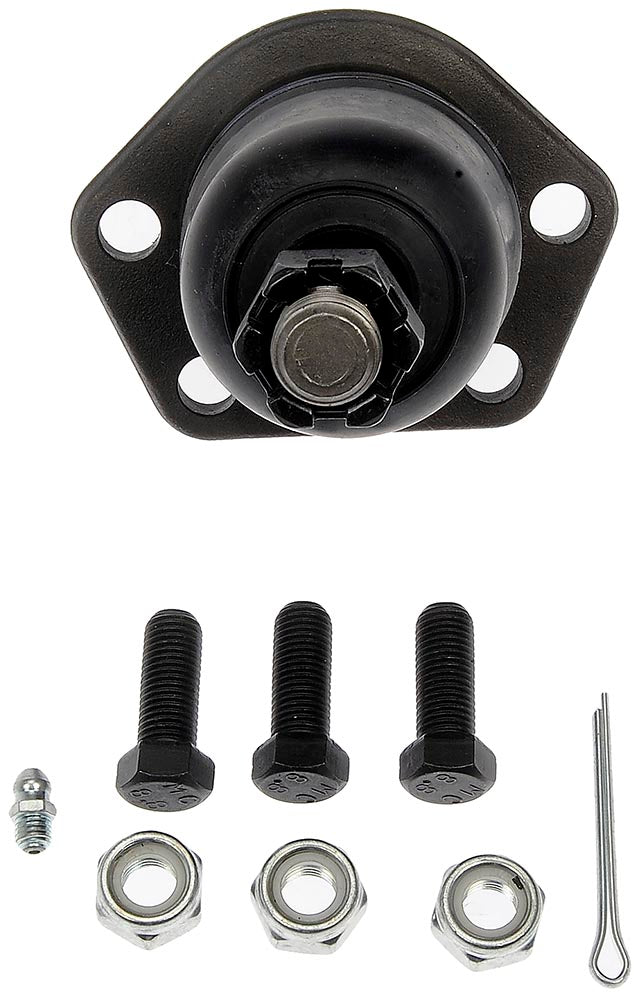

Dorman 540-062 Upper Suspension Ball Joint 95-06 AM General Hummer H1 12506982
Confirm Fitment Before You Buy
Not sure it fits? Message Year/Make/Model/Engine (2WD/4WD if applicable) and we’ll help confirm compatibility.
Why buy from Koskowski Automotive?
• 50+ years (since 1972) • Dorman Authorized Seller • Fast shipping • Easy returns
Regular price
$67.60
Select your vehicle at the top of the page to check fitment.
Couldn't load pickup availability
Vehicle Fitment: Use the table below to match your exact configuration. If you don’t see your exact setup, message us before ordering.
This suspension ball joint is precision-engineered and rigorously tested to provide reliable replacement for the original equipment on specific vehicles.
- Direct replacement - fits and performs like the original equipment on specific vehicles
- Reliable fit - precision-engineered to match the design and dimensions of original components
- Durable construction - manufactured to strict standards using sturdy, safe materials
- Rigorously tested - thorough quality control measures ensure longevity
Vehicle Fitment
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 1995-2001 | AM General | Hummer | Front Upper | |
| 1995-1999 | AM General | Hummer | Rear Left Upper/Rear Right Upper | |
| 2006 | Hummer | H1 | Front Upper | |
| 2006 | Hummer | H1 | Rear Left Upper/Rear Right Upper | |
| 2002-2004 | Hummer | H1 | Front Upper | |
| 2002-2004 | Hummer | H1 | Rear Left Upper/Rear Right Upper |
Please confirm the part number and your vehicle's year, make, model and engine before ordering. Questions? Message us with your VIN and we'll check fitment for you.
Specifications
| Brand | Dorman |
|---|---|
| Part Number | 540-062 |
| UPC | 194883756083 |
| Placement | Front, Rear, Left, Right, Upper |
| Material | Steel |
| Length | 111 mm |
| Color | Grey |
| Width | 59 mm |
| Type | Bolt On |
| Mounting Hardware Included | Yes |
| Height | 85.03 mm |
| Adjustable | No |
| Mounting Type | Bolt-In |
| Mounting Hole Quantity | 4 |
| Wrench Size | 21 mm |
| Stud Type | Tapered |
| Maximum Outside Diameter | 56.06 mm |
| Castle Nut Included | Yes |
| Grease Fitting Included | Yes |
| Suspension Grade Type | Standard |
| Bushings Included | No |
| Dust Boot Included | Yes |
| Ball Joint Assembly | Yes |
| Cotter Pin Included | Yes |
| Cotter Pin Hole | Yes |
| Mounting Bolt Length | 25.4 mm |
| Washers Included | No |
| Greaseable | Yes |
| Stud Thread Length | 23 mm |
| Distance Between Mounting Holes | 28 mm; 30 mm; 44.68 mm |
| Dust Boot Material | Polychloroprene |
| Bushing Quantity | 0 |
| Mounting Bolt Shank Diameter | 25 mm |
| Mounting Bolt Head Diameter | 11.7 mm |
| Mounting Bolts Included | Yes |
| Mounting Bolt Thread Length | 25.4 mm |
| Mount Plate Included | Yes |
| Tapered Stud | Yes |
| Stud Taper Per Foot | 1.59 in. |
| Stud Tapered End 2 Diameter | 21.4 mm |
| Stud Tapered End 1 Diameter | 17.95 mm |
| Attachment Type | Taper |
| Ball Joint Installed | Yes |
| Bearing Material | Metal |
| Bolts/Studs Included | Yes |
| Housing Press Fit Diameter | 45 mm |
| Mounting Bolt Thread Pitch | M24 |
| Nuts Included | Yes |
| Package Contents | 1 Ball Joint; 1 Zerk Fitting; 1 Castle Nut; 1 Cotter Pin; 6 Bolts; 6 Nuts |
| Stud Thread Diameter | 1/2 in |
| Stud Thread Pitch | M1.5 |
| Thread Pitch | M1.5 |
| Country of Origin | Taiwan |
| Warranty | Limited Lifetime |
OE & Interchange Numbers
| 12506982 | General Motors (OE) |
|---|---|
| MK500247 | Interchange |
| TC6064 | Interchange |
| GK500247 | Interchange |
| K500247 | Interchange |
