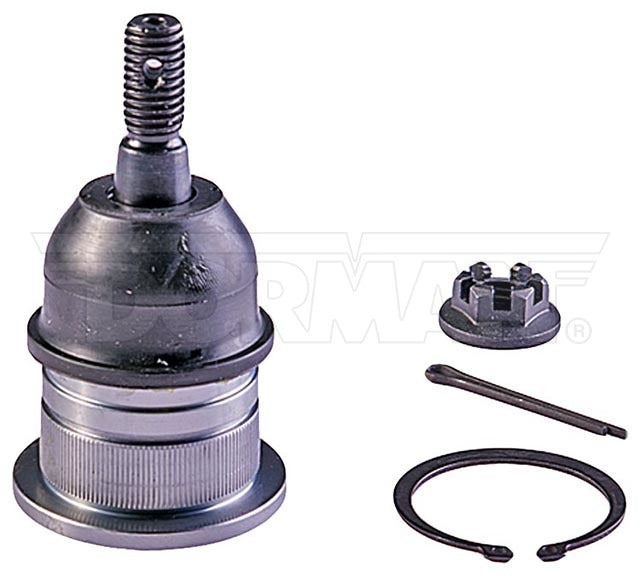

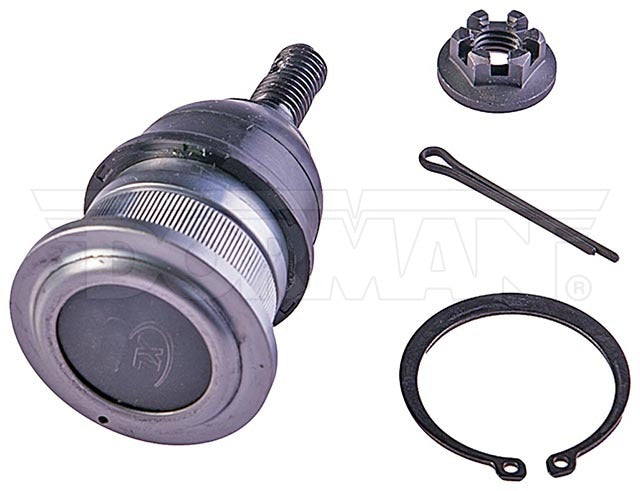

Dorman 540-063 Front Upper Suspension Ball Joint 99-14 Chevy Silverado 1500
Confirm Fitment Before You Buy
Not sure it fits? Message Year/Make/Model/Engine (2WD/4WD if applicable) and we’ll help confirm compatibility.
Why buy from Koskowski Automotive?
• 50+ years (since 1972) • Dorman Authorized Seller • Fast shipping • Easy returns
Regular price
$36.15
Select your vehicle at the top of the page to check fitment.
Couldn't load pickup availability
Vehicle Fitment: Use the table below to match your exact configuration. If you don’t see your exact setup, message us before ordering.
This suspension ball joint is precision-engineered and rigorously tested to provide reliable replacement for the original equipment on specific vehicles.
- Direct replacement - fits and performs like the original equipment on specific vehicles
- Reliable fit - precision-engineered to match the design and dimensions of original components
- Durable construction - manufactured to strict standards using sturdy, safe materials
- Rigorously tested - thorough quality control measures ensure longevity
Vehicle Fitment
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2002-2006 | Cadillac | Escalade | Front Upper | |
| 2003-2006 | Cadillac | Escalade ESV | Front Upper | |
| 2002-2006 | Cadillac | Escalade EXT | Front Upper | |
| 2002-2006 | Chevrolet | Avalanche 1500 | Front Upper | |
| 2003-2004 | Chevrolet | Cargo Van | Front Upper | 7,300 Lb. GVW |
| 2003-2014 | Chevrolet | Express 1500 | Front Upper | |
| 2003-2005 | Chevrolet | Express 2500 | Front Upper | 7,300 Lb. GVW; RWD |
| 2003-2005 | Chevrolet | Express 2500 | Front Upper | AWD |
| 2009-2014 | Chevrolet | Express Cargo | Front Upper | 4.3L V6 |
| 2009 | Chevrolet | Express Cargo | Front Upper | 5.3L V8 |
| 2009-2014 | Chevrolet | Express Pasajeros | Front Upper | 5.3L V8 |
| 1999-2006 | Chevrolet | Silverado 1500 | Front Upper | |
| 2007 | Chevrolet | Silverado 1500 Classic | Front Upper | |
| 2001-2006 | Chevrolet | Sonora | Front Upper | |
| 2000 | Chevrolet | Sonora | Front Upper | New Model |
| 2000-2006 | Chevrolet | Suburban 1500 | Front Upper | |
| 2001-2006 | Chevrolet | Tahoe | Front Upper | |
| 2000 | Chevrolet | Tahoe | Front Upper | New Model; 5.3L V8 |
| 2000 | Chevrolet | Tahoe | Front Upper | New Model; 4.8L V8 |
| 2003-2014 | GMC | Savana 1500 | Front Upper | |
| 2003-2005 | GMC | Savana 2500 | Front Upper | AWD |
| 2003-2005 | GMC | Savana 2500 | Front Upper | 7,300 Lb. GVW; RWD |
| 1999-2006 | GMC | Sierra 1500 | Front Upper | |
| 2007 | GMC | Sierra 1500 Classic | Front Upper | |
| 2001-2006 | GMC | Yukon | Front Upper | |
| 2000 | GMC | Yukon | Front Upper | RWD |
| 2000 | GMC | Yukon | Front Upper | New Model; 4WD; 5.3L V8 |
| 2000 | GMC | Yukon | Front Upper | New Model; 4WD; 4.8L V8 |
| 2000-2006 | GMC | Yukon XL 1500 | Front Upper |
Please confirm the part number and your vehicle's year, make, model and engine before ordering. Questions? Message us with your VIN and we'll check fitment for you.
Specifications
| Brand | Dorman |
|---|---|
| Part Number | 540-063 |
| UPC | 194883756106 |
| Placement | Front, Upper |
| Material | Steel |
| Length | 111 mm |
| Color | Gray |
| Width | 59 mm |
| Type | Threaded |
| Mounting Hardware Included | Yes |
| Height | 85.03 mm |
| Adjustable | No |
| Mounting Type | Press In |
| Mounting Hole Quantity | 0 |
| Wrench Size | 12 mm |
| Stud Type | Tapered |
| Maximum Outside Diameter | 61 mm |
| Castle Nut Included | Yes |
| Grease Fitting Included | No |
| Suspension Grade Type | Premium |
| Bushings Included | No |
| Dust Boot Included | Yes |
| Ball Joint Assembly | Yes |
| Cotter Pin Included | No |
| Cotter Pin Hole | Yes |
| Washers Included | No |
| Greaseable | No |
| Stud Thread Length | 35.5 mm |
| Dust Boot Material | Polychloroprene |
| Bushing Quantity | 0 |
| Mounting Bolts Included | No |
| Mount Plate Included | No |
| Tapered Stud | Yes |
| Stud Taper Per Foot | 2 in. |
| Stud Tapered End 2 Diameter | 22 mm |
| Stud Tapered End 1 Diameter | 27.2 mm |
| Attachment Type | Taper |
| Ball Joint Installed | Yes |
| Bearing Material | Polymer |
| Bolts/Studs Included | Yes |
| Housing Press Fit Diameter | 42 mm |
| Nuts Included | Yes |
| Package Contents | Ball Joint; Castle Nut; Cotter Pin; Retaining Ring |
| Stud Thread Diameter | 12 mm |
| Stud Thread Pitch | 1.5 mm |
| Thread Pitch | 1.75 mm |
| Country of Origin | Thailand |
| Warranty | Limited Lifetime |
OE & Interchange Numbers
| 12475485 | General Motors (OE) |
|---|---|
| JBJ845 | Interchange |
| FA2163 | Interchange |
| 45D0103 | Interchange |
| FA6540 | Interchange |
| TC1625 | Interchange |
| 2612475 | Interchange |
| 46D0103A | Interchange |
| K6540 | Interchange |
| 610.66029 | Interchange |
| MK6540 | Interchange |
| FA2163E | Interchange |
| GK6540 | Interchange |
| MS50534 | Interchange |
| GS50534 | Interchange |
| TC1865 | Interchange |
| K100116 | Interchange |
| TC5845 | Interchange |
