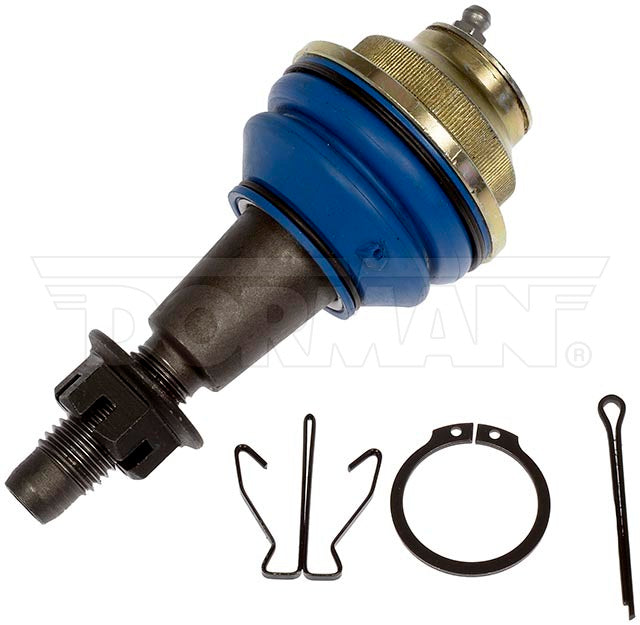

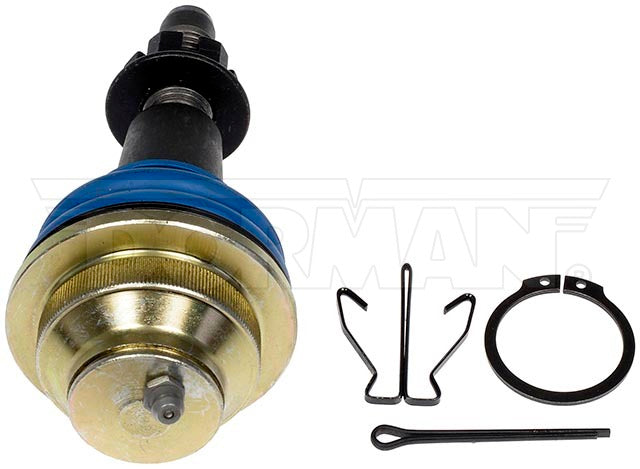

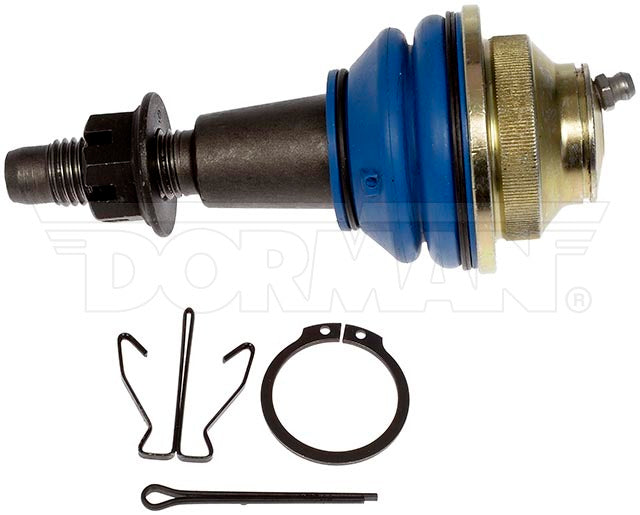

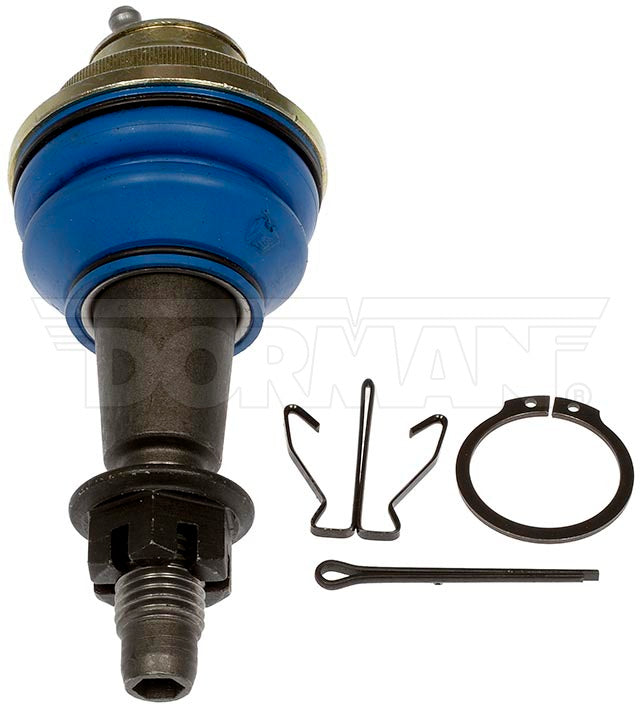

Dorman 540-099 Suspension Ball Joint 19-26 Cadillac Chevy GMC 84586489 Universal
Confirm Fitment Before You Buy
Not sure it fits? Message Year/Make/Model/Engine (2WD/4WD if applicable) and we’ll help confirm compatibility.
Why buy from Koskowski Automotive?
• 50+ years (since 1972) • Dorman Authorized Seller • Fast shipping • Easy returns
Regular price
$38.27
Select your vehicle at the top of the page to check fitment.
Couldn't load pickup availability
Vehicle Fitment: Use the table below to match your exact configuration. If you don’t see your exact setup, message us before ordering.
This suspension ball joint is precision-engineered and rigorously tested to provide reliable replacement for the original equipment on specific vehicles.
- Direct replacement - fits and performs like the original equipment on specific vehicles
- Reliable fit - precision-engineered to match the design and dimensions of original components
- Durable construction - manufactured to strict standards using sturdy, safe materials
- Rigorously tested - thorough quality control measures ensure longevity
Vehicle Fitment
Universal part - not specific to one vehicle. Check the specifications below for size and fit.
Please confirm the part number and your vehicle's year, make, model and engine before ordering. Questions? Message us with your VIN and we'll check fitment for you.
Specifications
| Brand | Dorman |
|---|---|
| Part Number | 540-099 |
| UPC | 194883756823 |
| Material | Steel |
| Thread Direction | Clockwise (Right) |
| Length | 64.5 mm |
| Color | Black |
| Width | 59 mm |
| Outside Diameter | 61 mm |
| Type | Threaded |
| Mounting Hardware Included | Yes |
| Height | 126 mm |
| Adjustable | No |
| Mounting Type | Press In |
| Mounting Hole Quantity | 0 |
| Bearing Type | Polymer |
| Boot Color | Black |
| Cone Outside Diameter | 21.2 mm |
| Wrench Size | 16 mm |
| Stud Type | Threaded |
| Maximum Outside Diameter | 61 mm |
| Reinforced | No |
| Pre-Greased | Yes |
| Castle Nut Included | No |
| Grease Fitting Included | No |
| Suspension Grade Type | Standard Replacement |
| Bushings Included | No |
| Dust Boot Included | Yes |
| Ball Joint Assembly | Yes |
| Cotter Pin Included | No |
| Cotter Pin Hole | No |
| Washers Included | No |
| Grade Type | Standard Replacement |
| Locking Nut Included | Yes |
| Greaseable | No |
| Stud Thread Length | 42 mm |
| Steering Type | Power |
| Dust Boot Material | Polychloroprene |
| Bushing Quantity | 0 |
| Mounting Bolts Included | No |
| Mount Plate Included | No |
| Tapered Stud | Yes |
| Stud Taper Per Foot | 2 in. |
| Stud Tapered End 2 Diameter | 16 mm |
| Stud Tapered End 1 Diameter | 27.2 mm |
| Attachment Type | Press In |
| Attachments Included | No |
| Ball Joint Installed | Yes |
| Bearing Material | Polymer |
| Bolts/Studs Included | Yes |
| Housing Press Fit Diameter | 45.6 mm |
| Nuts Included | Yes |
| Package Contents | 1 Ball Joint; 1 Nut |
| Retaining Ring Included | Yes |
| Stud Thread Diameter | 16 mm |
| Stud Thread Pitch | 2 |
| Stud Threads Per Inch | 2 |
| Thread Pitch | 2 |
| Country of Origin | China |
| Warranty | Limited Lifetime |
OE & Interchange Numbers
| 84586489 | General Motors (OE) |
|---|---|
| 85662940 | General Motors (OE) |
| 84973285 | General Motors (OE) |
| 85662942 | General Motors (OE) |
| 85662941 | General Motors (OE) |
| 84628882 | General Motors (OE) |
| 84973286 | General Motors (OE) |
| 84973288 | General Motors (OE) |
| 85662943 | General Motors (OE) |
| 84973287 | General Motors (OE) |
| 84586488 | General Motors (OE) |
| 84628883 | General Motors (OE) |
| MS50589 | Interchange |
| FA93095 | Interchange |
