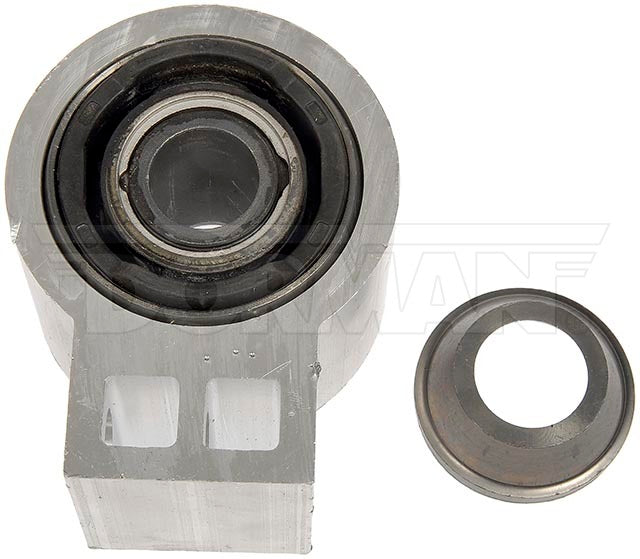

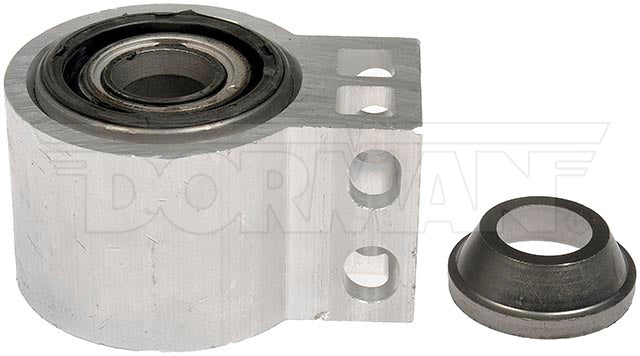

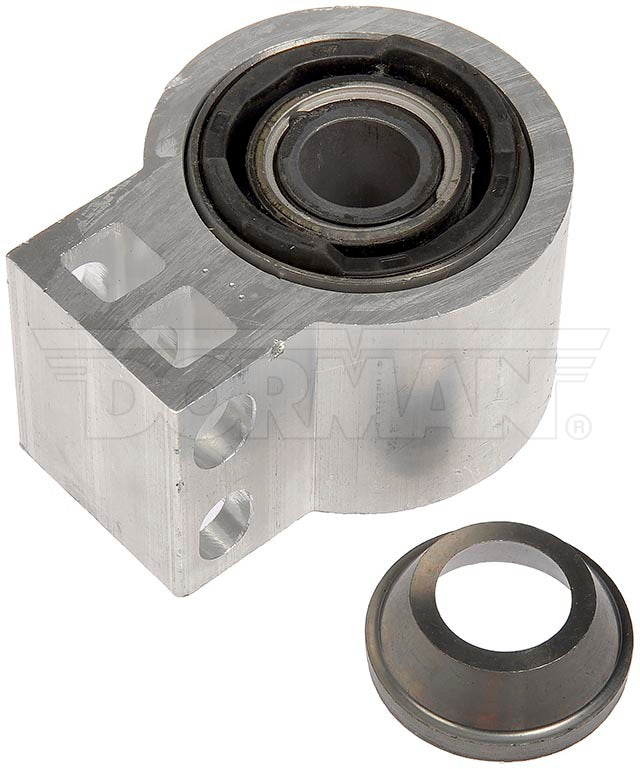

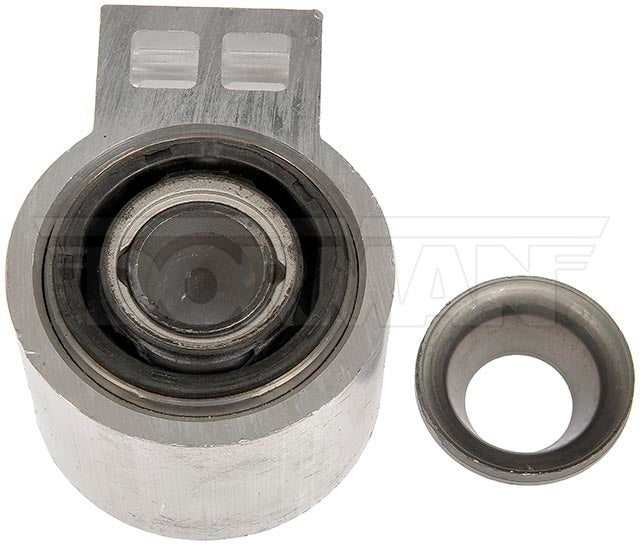

Dorman 540-865 Lower Control Arm Bushing 10-19 Buick LaCrosse Regal Cadillac XTS
Confirm Fitment Before You Buy
Not sure it fits? Message Year/Make/Model/Engine (2WD/4WD if applicable) and we’ll help confirm compatibility.
Why buy from Koskowski Automotive?
• 50+ years (since 1972) • Dorman Authorized Seller • Fast shipping • Easy returns
Regular price
$45.45
Select your vehicle at the top of the page to check fitment.
Couldn't load pickup availability
Vehicle Fitment: Use the table below to match your exact configuration. If you don’t see your exact setup, message us before ordering.
This suspension control arm bushing is precision-engineered and rigorously tested to provide reliable replacement for the original equipment on specific vehicles.
- Direct replacement - fits and performs like the original equipment bushing on specific vehicles
- Reliable fit - precision-engineered to match the design and dimensions of original components
- Durable construction - manufactured to strict standards using sturdy, safe materials
- Rigorously tested - thorough quality control measures ensure longevity
Vehicle Fitment
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2010 | Buick | Allure | Front Lower Rearward | Perf Suspension Has No Lower Ball Joint; with Performance Suspension |
| 2010-2016 | Buick | LaCrosse | Front Lower Rearward | Perf Suspension Has No Lower Ball Joint; with Performance Suspension |
| 2011-2017 | Buick | Regal | Front Lower Rearward | Perf Suspension Has No Lower Ball Joint; with Performance Suspension |
| 2013-2019 | Cadillac | XTS | Front Lower Rearward | w/6 Lug Wheels |
Please confirm the part number and your vehicle's year, make, model and engine before ordering. Questions? Message us with your VIN and we'll check fitment for you.
Specifications
| Brand | Dorman |
|---|---|
| Part Number | 540-865 |
| UPC | 194883772144 |
| Placement | Front, Rear, Lower |
| Material | Aluminum; Rubber |
| Length | 66 mm |
| Color | Silver |
| Inside Diameter | 14.2 mm |
| Width | 66.2 mm |
| Outside Diameter | 66.2 mm |
| Mounting Hardware Included | No |
| Height | 56.74 mm |
| Bushing Material | Steel; Rubber |
| Mounting Type | Bushing |
| Wall Thickness | 23.8 mm |
| Bracket Included | No |
| Mounting Hole Diameter | 18.4 mm |
| Dust Boot Included | No |
| Grade Type | Standard Replacement |
| Distance Between Mounting Holes | 10.5 mm |
| Color Code | Black; Gray |
| Hardware Included | No |
| Bushing 1 Width | 66.2 mm |
| Item Grade | Standard Replacement |
| Package Contents | 1 Bushing; 1 Tapered Spacer |
| Country of Origin | Belgium |
| Warranty | Limited Lifetime |
OE & Interchange Numbers
| 13280216 | General Motors (OE) |
|---|---|
| 602.62179 | Interchange |
| TD1677W | Interchange |
