Dorman 541-089 Front Suspension Kit 99-07 Chevy Silverado 1500 GMC Sierra 1500
Confirm Fitment Before You Buy
Not sure it fits? Message Year/Make/Model/Engine (2WD/4WD if applicable) and we’ll help confirm compatibility.
Why buy from Koskowski Automotive?
• 50+ years (since 1972) • Dorman Authorized Seller • Fast shipping • Easy returns
Regular price
$496.78
Select your vehicle at the top of the page to check fitment.
Couldn't load pickup availability
Vehicle Fitment: Use the table below to match your exact configuration. If you don’t see your exact setup, message us before ordering.
This extended-life front-end kit includes all the components required to repair both the left and right side of the suspension. Featuring premium designs, this application-specific kit is engineered to restore factory-like feel and performance.
- Convenient solution - this front end kit includes left and right side suspension components to ensure a complete repair
- Premium components - this kit uses extended-life components with low-friction polymer bearings and premium synthetic grease to ensure a long service life
- Application-specific - this kit has been engineered to deliver factory-like feel and performance on specific vehicles and equipment
- Quality tested - this part has undergone try-on, corrosion and material testing to ensure a quality fit and lasting durability
Vehicle Fitment
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2002-2006 | Cadillac | Escalade | Front | w/4 Groove Pitman Arm |
| 2003-2006 | Cadillac | Escalade ESV | Front | w/4 Groove Pitman Arm |
| 2002-2006 | Cadillac | Escalade EXT | Front | w/4 Groove Pitman Arm |
| 2002-2006 | Chevrolet | Avalanche 1500 | Front | w/4 Groove Pitman Arm |
| 1999-2006 | Chevrolet | Silverado 1500 | Front | w/4 Groove Pitman Arm |
| 2007 | Chevrolet | Silverado 1500 Classic | Front | w/4 Groove Pitman Arm |
| 2000-2006 | Chevrolet | Sonora | Front | w/4 Groove Pitman Arm |
| 2001-2006 | Chevrolet | Suburban 1500 | Front | w/4 Groove Pitman Arm |
| 2000 | Chevrolet | Suburban 1500 | Front | w/4 Groove Pitman Arm; 5.3L V8 |
| 2001-2006 | Chevrolet | Tahoe | Front | w/4 Groove Pitman Arm |
| 2000 | Chevrolet | Tahoe | Front | w/4 Groove Pitman Arm; 4.8L V8 |
| 2000 | Chevrolet | Tahoe | Front | w/4 Groove Pitman Arm; 5.3L V8 |
| 1999-2006 | GMC | Sierra 1500 | Front | w/4 Groove Pitman Arm |
| 2007 | GMC | Sierra 1500 Classic | Front | w/4 Groove Pitman Arm |
| 2001-2006 | GMC | Yukon | Front | w/4 Groove Pitman Arm |
| 2000 | GMC | Yukon | Front | w/4 Groove Pitman Arm; 4.8L V8 |
| 2000 | GMC | Yukon | Front | w/4 Groove Pitman Arm; 5.3L V8 |
| 2000-2006 | GMC | Yukon XL 1500 | Front | w/4 Groove Pitman Arm |
Please confirm the part number and your vehicle's year, make, model and engine before ordering. Questions? Message us with your VIN and we'll check fitment for you.
Specifications
| Brand | Dorman |
|---|---|
| Part Number | 541-089 |
| UPC | 194883776623 |
| Placement | Front |
| Bushing Material | Rubber |
| Bushing Inside Diameter | 9.6 mm; 13.3 mm |
| Bushing Outside Diameter | 30 mm; 43 mm |
| Bushing Color | Red; Black |
| Grade Type | Standard Replacement |
| Bushings Included | Yes |
| Coil Springs Included | No |
| Link Bolts Included | No |

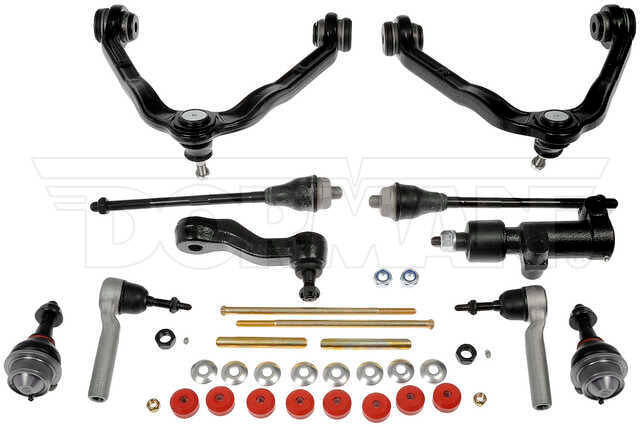

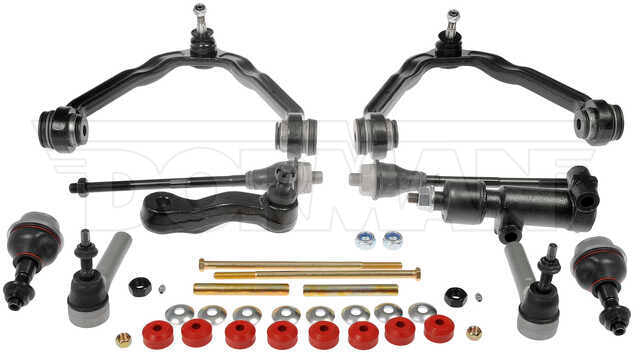

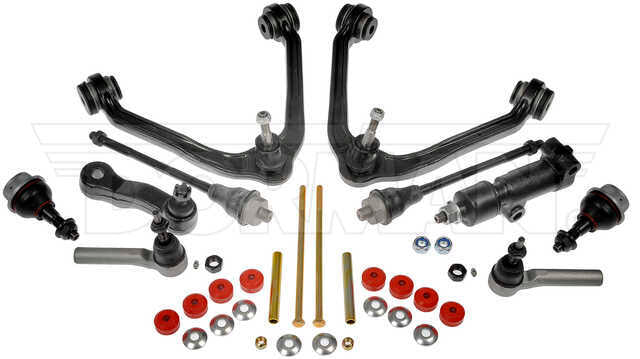

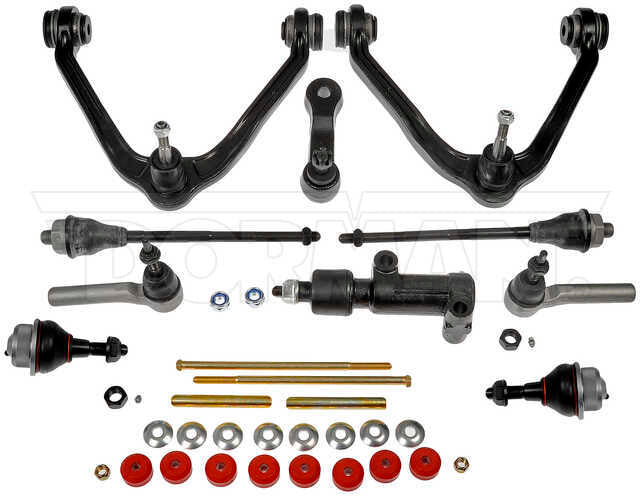

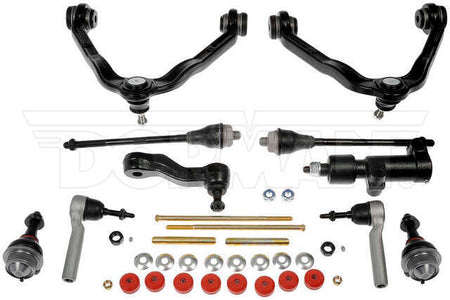

| Package Contents | 2 Stabilizer Bar Link Kits; 2 Lower Ball Joints; 1 Idler Arm Bracket Assembly; 1 Idler Arm; 2 Upper Control Arms; 1 Pitman Arm; 2 Outer Tie Rod Ends; 2 Inner Tie Rod Ends |
| Shocks Included | No |
| Country of Origin | India |
| Warranty | Limited Lifetime |
OE & Interchange Numbers
| 19178433 | General Motors (OE) |
|---|---|
| 12546193 | General Motors (OE) |
| 12471376 | General Motors (OE) |
| 12475478 | General Motors (OE) |
| 12472819 | General Motors (OE) |
| 15864153 | General Motors (OE) |
| 19168944 | General Motors (OE) |
| 19435541 | General Motors (OE) |
| 15070821 | General Motors (OE) |
| 26059226 | General Motors (OE) |
| 12471379 | General Motors (OE) |
| 15047200 | General Motors (OE) |
| 10385580 | General Motors (OE) |
| 19152329 | General Motors (OE) |
| 12471378 | General Motors (OE) |
| 12479349 | General Motors (OE) |
| 19149615 | General Motors (OE) |
| 12475485 | General Motors (OE) |
| 15167767 | General Motors (OE) |
| 15840266 | General Motors (OE) |
| 19149617 | General Motors (OE) |
