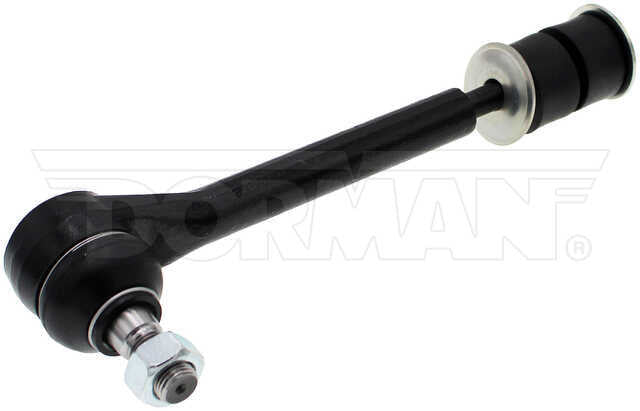

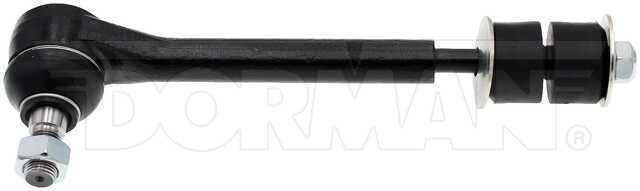

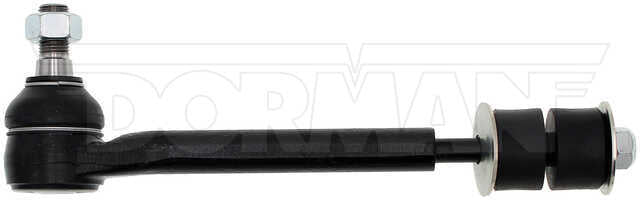

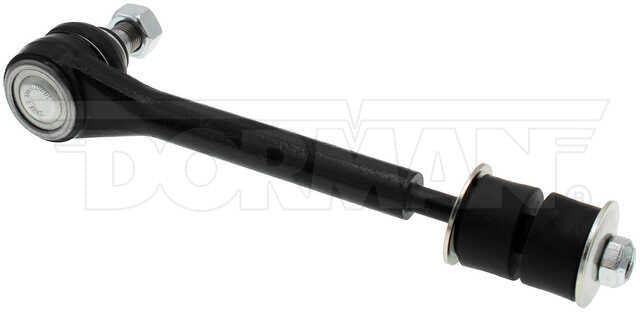

Dorman 541-633 Front Stabilizer Bar Link Kit 85-02 GMC C3500 Chevy C3500
Confirm Fitment Before You Buy
Not sure it fits? Message Year/Make/Model/Engine (2WD/4WD if applicable) and we’ll help confirm compatibility.
Why buy from Koskowski Automotive?
• 50+ years (since 1972) • Dorman Authorized Seller • Fast shipping • Easy returns
Regular price
$48.43
Select your vehicle at the top of the page to check fitment.
Couldn't load pickup availability
Vehicle Fitment: Use the table below to match your exact configuration. If you don’t see your exact setup, message us before ordering.
This suspension stabilizer bar link kit is precision-engineered and rigorously tested to provide reliable replacement for the original equipment on specific vehicles.
- Direct replacement - fits and performs like the original equipment on specific vehicles
- Reliable fit - precision-engineered to match the design and dimensions of original components
- Durable construction - manufactured to strict standards using sturdy, safe materials
- Rigorously tested - thorough quality control measures ensure longevity
Vehicle Fitment
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 1988-1990 | Chevrolet | C3500 | Front | w/Twin I-Beam Suspension |
| 1991-2002 | Chevrolet | C3500HD | Front | |
| 2001-2002 | Chevrolet | P30 | Front | w/Twin I-Beam Suspension |
| 1985-1999 | Chevrolet | P30 | Front | w/Twin I-Beam Suspension |
| 1988-1990 | GMC | C3500 | Front | w/Twin I-Beam Suspension |
| 1991-2002 | GMC | C3500HD | Front | |
| 1985-1999 | GMC | P3500 | Front | w/Twin I-Beam Suspension |
Please confirm the part number and your vehicle's year, make, model and engine before ordering. Questions? Message us with your VIN and we'll check fitment for you.
Specifications
| Brand | Dorman |
|---|---|
| Part Number | 541-633 |
| UPC | 194883787506 |
| Placement | Front |
| Length | 254 mm |
| Bushing Material | Steel; Rubber |
| Bushing Inside Diameter | 11 mm |
| Bushing Outside Diameter | 35 mm |
| Bushing Color | Gray |
| Bearing Material | Metal |
| End 1 Type | Male Threaded |
| End 2 Type | Male Threaded |
| Pre-Greased | No |
| Bushings Included | No |
| Dust Boot Included | Yes |
| Grease Fitting Included | Yes |
| Washers Included | No |
| Grade Type | Standard Replacement |
| Bolts Included | No |
| Sleeve Included | No |
| Greaseable | Yes |
| Adjustable | No |
| Bearings Included | Yes |
| Bolt Thread Pitch | M20; M18 |
| End 1 Attachment Size | 7/16 in |
| End 2 Attachment Size | 9/16 in |
| Finish | Coated |
| Front or Rear Suspension | Rear |
| Link Material | Steel |
| Material | Steel |
| Mounting Hardware Included | Yes |
| Package Contents | 1 Stabilizer Bar Link; 1 Castle Nut; 1 Cotter Pin; 1 Zerk Fitting; 1 Nut; 2 Washers; 2 Bushings |
| Spacer Included | No |
| Thread Pitch | 1.5 mm |
| Threaded End | Yes |
| Weight | 0.59 lb |
| Country of Origin | China |
| Warranty | Limited Lifetime |
OE & Interchange Numbers
| 15635936 | General Motors (OE) |
|---|---|
| SL331 | Interchange |
| K6628 | Interchange |
| SL331E | Interchange |
| GK6628 | Interchange |
| JTS731 | Interchange |
| TC5289 | Interchange |
| 45G0225 | Interchange |
| MK6628 | Interchange |
| 46G0225A | Interchange |
| 606.66015 | Interchange |
| 2615936 | Interchange |
