Dorman 544-064 Steering - Tie Rod End
Confirm Fitment Before You Buy
Not sure it fits? Message Year/Make/Model/Engine (2WD/4WD if applicable) and we’ll help confirm compatibility.
Why buy from Koskowski Automotive?
• 50+ years (since 1972) • Dorman Authorized Seller • Fast shipping • Easy returns
Regular price
$0.00
Couldn't load pickup availability
Vehicle Fitment: Use the table below to match your exact configuration. If you don’t see your exact setup, message us before ordering.
Product Description

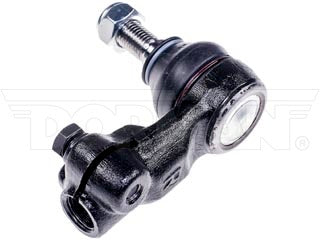

This steering tie rod end directly replaces the original equipment tie rod on specific vehicle applications. It has undergone an industry-leading evaluation process to ensure smooth, safe operation.
- Trustworthy replacement - this steering tie rod end assembly directly replaces the original equipment on specific vehicle applications
- Durably designed - factory-sealed and precision-forged housing resists future corrosion
- Reliably engineered - built to decrease wear rate and ensure overall strength
- Trustworthy quality - backed by team of professional engineers and quality control specialists in the United States
Detailed Applications
| Year | Make | Model | Configuration | Positions | Application Notes |
|---|---|---|---|---|---|
| 2006 | Land Rover | Freelander (Mexico) | Front Right Outer | ||
| 2005 | Land Rover | Freelander | Front Right Outer | ||
| 2004 | Land Rover | Freelander | Front Right Outer | ||
| 2003 | Land Rover | Freelander | Front Right Outer | ||
| 2002 | Land Rover | Freelander | Front Right Outer | ||
| 2001 | Land Rover | Freelander (Mexico) | Front Right Outer | ||
| 2000 | Land Rover | Freelander (Mexico) | Front Right Outer | ||
| 1999 | Land Rover | Freelander (Mexico) | Front Right Outer |
Product Specifications
| Adjustable: | Yes |
|---|---|
| Ball Joint Included: | Yes |
| Bearing Material: | Polymer |
| Bolts Included: | No |
| Brand: | Dorman - OE Solutions |
| Color: | Black |
| Cone Outside Diameter: | 14.7 mm |
| Dust Boot Included: | Yes |
| Dust Boot Material: | Polychloroprene |
| End 1 Attachment Type: | Threaded |
| End 1 Gender: | Female |
| End 1 Thread Diameter: | 16 mm |
| End 1 Thread Direction: | Counterclockwise (Left) |
| End 1 Thread Pitch: | 1.5 mm |
| End 2 Attachment Type: | Threaded |
| End 2 Gender: | Male |
| End 2 Thread Diameter: | 12 mm |
| End 2 Thread Direction: | Clockwise (Right) |
| End 2 Thread Pitch: | 1.5 mm |
| Finish: | Powder Coated |
| Grade Type: | Standard |
| Grease Fitting Included: | No |
| Head Drive Type: | Smooth |
| Height: | 73.44 mm |
| Housing Material: | Steel |
| Length: | 110 mm |
| Material: | Steel |
| Mounting Hardware Included: | Yes |
| Outside Diameter: | 30 mm |
| Package Contents: | 1 Tie Rod End |
| Package Quantity: | 1 |
| Packaging Type: | Box |
| Pre-Greased: | Yes |
| Selling Package Quantity UOM: | Piece |
| Stud Type: | Taper |
| Thread Pitch: | 1.5 mm; 1.5 mm |
| Tie Rod End Thread Diameter: | 16 mm |
| Tie Rod Material: | Steel |
| Tube Diameter: | 30 mm |
| Type: | Straight |
| Width: | 39 mm |
OE Numbers
| DIRECT OE CROSS | |
|---|---|
| QJB100220 | BRITISH LEYLAND |
