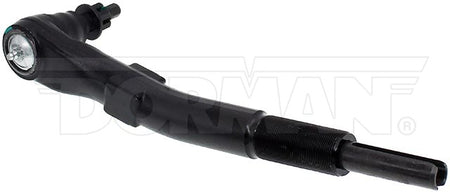

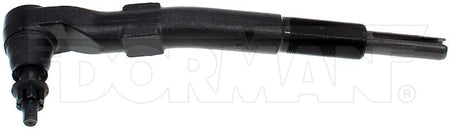

Dorman 544-515 Front Left Steering Tie Rod End 13-25 Ram 5500 4500 68185796AC
Confirm Fitment Before You Buy
Not sure it fits? Message Year/Make/Model/Engine (2WD/4WD if applicable) and we’ll help confirm compatibility.
Why buy from Koskowski Automotive?
• 50+ years (since 1972) • Dorman Authorized Seller • Fast shipping • Easy returns
Regular price
$81.59
Select your vehicle at the top of the page to check fitment.
Couldn't load pickup availability
Vehicle Fitment: Use the table below to match your exact configuration. If you don’t see your exact setup, message us before ordering.
This steering tie rod end directly replaces the original equipment tie rod on specific vehicle applications. It has undergone an industry-leading evaluation process to ensure smooth, safe operation.
- Trustworthy replacement - this steering tie rod end assembly directly replaces the original equipment on specific vehicle applications
- Durably designed - factory-sealed and precision-forged housing resists future corrosion
- Reliably engineered - built to decrease wear rate and ensure overall strength
- Trustworthy quality - backed by team of professional engineers and quality control specialists in the United States
Vehicle Fitment
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2013-2025 | Ram | 4500 | Front Left Outer | |
| 2013-2025 | Ram | 5500 | Front Left Outer |
Please confirm the part number and your vehicle's year, make, model and engine before ordering. Questions? Message us with your VIN and we'll check fitment for you.
Specifications
| Brand | Dorman |
|---|---|
| Part Number | 544-515 |
| UPC | 194883719828 |
| Placement | Front, Left, Outer |
| Head Drive Type | Hex |
| Thread Direction | Clockwise (Right) |
| Length | 412.06 mm |
| Color | Black |
| Width | 47.14 mm |
| Type | Bent |
| Mounting Hardware Included | Yes |
| Height | 120.11 mm |
| Tube Diameter | 38.51 mm |
| Adjustable | No |
| Stud Length | 40 mm |
| Finish | Painted |
| Housing Material | Steel |
| Boot Color | Black |
| Cone Outside Diameter | 18.5 mm |
| Bearing Material | Metal |
| Stud Type | Threaded |
| Reinforced | No |
| Shank Length | 19 mm |
| Washer Included | No |
| End 1 Gender | Male |
| End 2 Gender | Male |
| Pre-Greased | Yes |
| Castle Nut Included | Yes |
| Grease Fitting Included | Yes |
| Dust Boot Included | Yes |
| Cotter Pin Included | Yes |
| Grade Type | Standard Replacement |
| Locking Nut Included | Yes |
| Greaseable | Yes |
| Adjusting Sleeve Included | No |
| Steering Type | Power |
| End 1 Thread Direction | Clockwise (Right) |
| End 2 Thread Direction | Clockwise (Right) |
| Bolt Length | 302.5 mm |
| Dust Boot Material | Polychloroprene |
| Tie Rod Material | Steel |
| Ball Joint Included | Yes |
| Bolts Included | No |
| Center Mount Hole Quantity | 0 |
| Center Mount Stud Quantity | 2 |
| End 1 Attachment Type | Threaded |
| End 1 Thread Diameter | 13/8 in |
| End 1 Thread Pitch | 2 |
| End 2 Attachment Type | Threaded |
| End 2 Thread Diameter | 16 mm |
| End 2 Thread Pitch | 1.5 |
| End 2 Threads Per Inch | 1.5 mm |
| End 2 Type | Threaded |
| Head Grab Type Included | Yes |
| Manufacturer Restriction | No |
| Material | Steel |
| Outside Diameter | 38.51 mm |
| Package Contents | 1 Tie Rod; 1 Ball Joint; 1 Castle Nut; 1 Cotter Pin |
| Thread Pitch | 1.5 mm |
| Tie Rod End Thread Diameter | 13/8 in |
| Weight | 1.6 lb |
| Country of Origin | China |
| Warranty | Limited Lifetime |
OE & Interchange Numbers
| 68185796AC | Chrysler (OE) |
|---|---|
| 68185804AB | Chrysler (OE) |
| 68185796AB | Chrysler (OE) |
