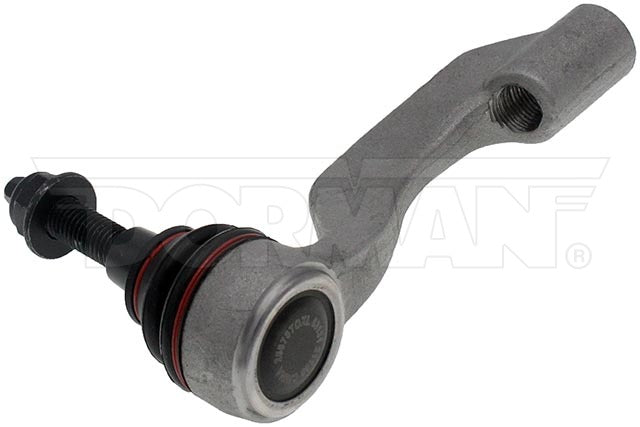

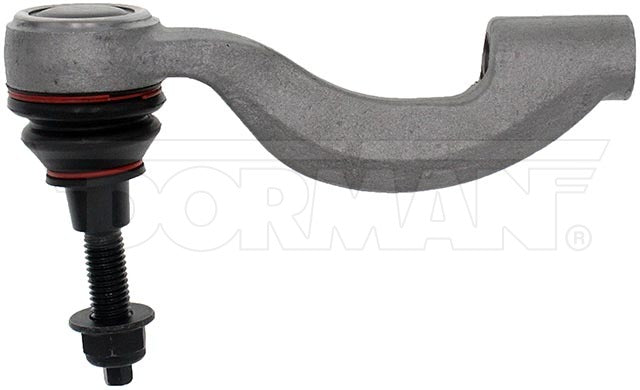

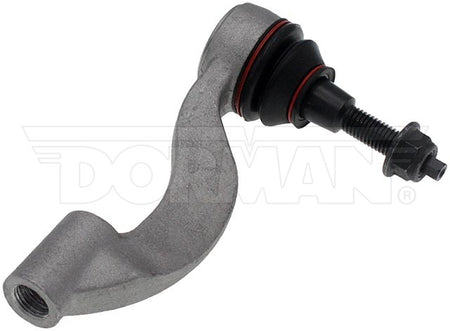

Dorman 544-641 Front Left Steering Tie Rod End 13-19 Cadillac CTS ATS 22961956
Confirm Fitment Before You Buy
Not sure it fits? Message Year/Make/Model/Engine (2WD/4WD if applicable) and we’ll help confirm compatibility.
Why buy from Koskowski Automotive?
• 50+ years (since 1972) • Dorman Authorized Seller • Fast shipping • Easy returns
Regular price
$36.20
Select your vehicle at the top of the page to check fitment.
Couldn't load pickup availability
Vehicle Fitment: Use the table below to match your exact configuration. If you don’t see your exact setup, message us before ordering.
This steering tie rod end directly replaces the original equipment tie rod on specific vehicle applications. It has undergone an industry-leading evaluation process to ensure smooth, safe operation.
- Trustworthy replacement - this steering tie rod end assembly directly replaces the original equipment on specific vehicle applications
- Durably designed - factory-sealed and precision-forged housing resists future corrosion
- Reliably engineered - built to decrease wear rate and ensure overall strength
- Trustworthy quality - backed by team of professional engineers and quality control specialists in the United States
Vehicle Fitment
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2013-2019 | Cadillac | ATS | Front Left Outer | AWD |
| 2018-2019 | Cadillac | CTS | Front Left Outer | |
| 2014-2017 | Cadillac | CTS | Front Left Outer | AWD |
Please confirm the part number and your vehicle's year, make, model and engine before ordering. Questions? Message us with your VIN and we'll check fitment for you.
Specifications
| Brand | Dorman |
|---|---|
| Part Number | 544-641 |
| UPC | 194883722828 |
| Placement | Front, Left, Outer |
| Length | 110 mm |
| Color | Black |
| Type | Straight |
| Mounting Hardware Included | Yes |
| Adjustable | No |
| Finish | Powder Coated |
| Housing Material | Steel |
| Cone Outside Diameter | 15.7 mm |
| Bearing Material | Polymer |
| Stud Type | Taper |
| End 1 Gender | Female |
| End 2 Gender | Male |
| Pre-Greased | Yes |
| Grease Fitting Included | No |
| Dust Boot Included | No |
| Grade Type | Standard Replacement |
| End 1 Thread Direction | Clockwise (Right) |
| End 2 Thread Direction | Clockwise (Right) |
| Dust Boot Material | Polychloroprene |
| Tie Rod Material | Steel |
| End 1 Thread Diameter | 18 mm |
| End 1 Thread Pitch | M1.25 |
| End 2 Thread Diameter | 10 mm |
| End 2 Thread Pitch | M1.25 |
| Package Contents | 1 Tie Rod End |
| Country of Origin | China |
| Warranty | Limited Lifetime |
OE & Interchange Numbers
| 22961956 | General Motors (OE) |
|---|---|
| 22789028 | General Motors (OE) |
| TA6484 | Interchange |
| MS50656 | Interchange |
| ES801310 | Interchange |
| GS50656 | Interchange |
