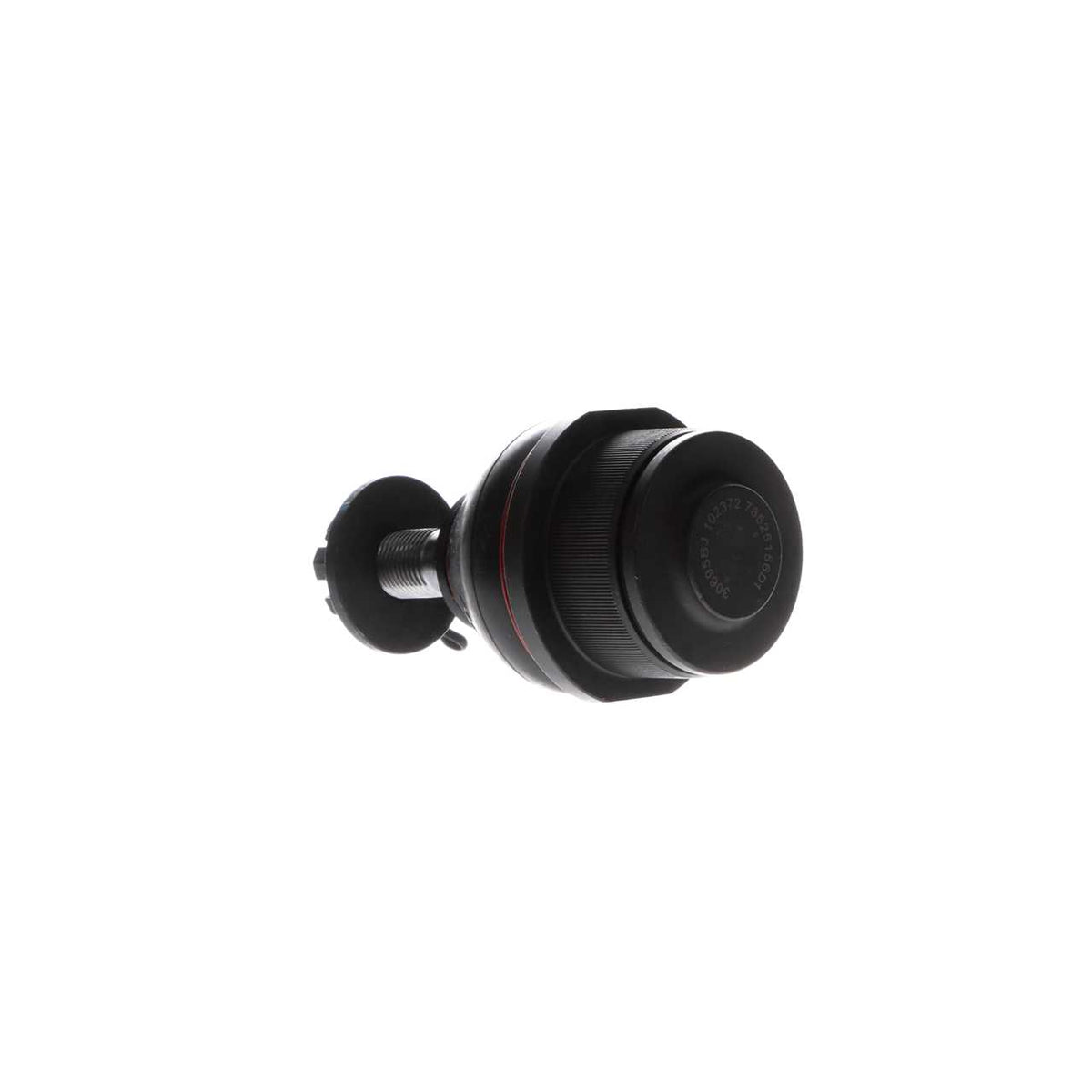

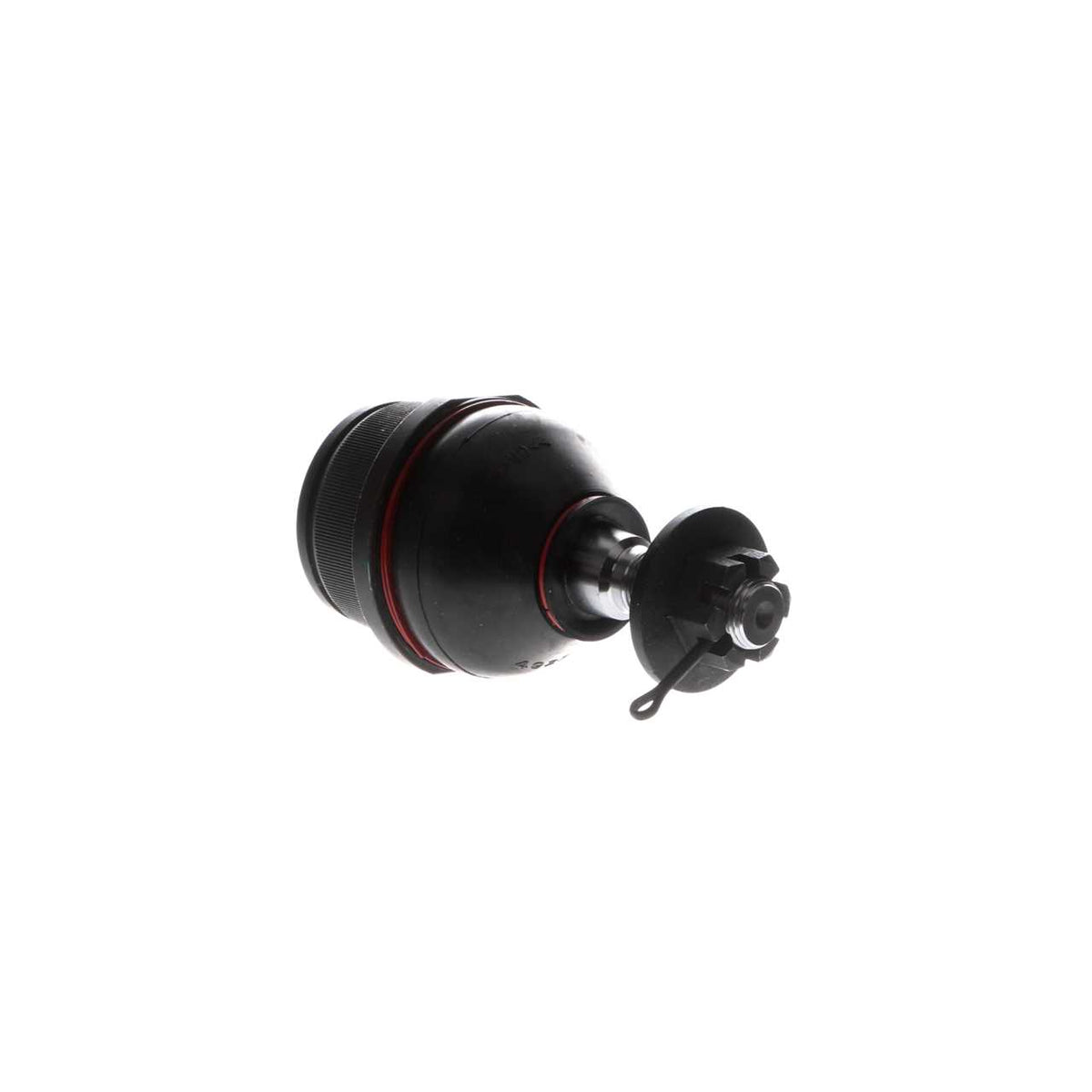

Dorman 545-021 Suspension Ball Joint 22-24 Toyota Tundra Sequoia 480690C011
Confirm Fitment Before You Buy
Not sure it fits? Message Year/Make/Model/Engine (2WD/4WD if applicable) and we’ll help confirm compatibility.
Why buy from Koskowski Automotive?
• 50+ years (since 1972) • Dorman Authorized Seller • Fast shipping • Easy returns
Regular price
$114.96
Select your vehicle at the top of the page to check fitment.
Couldn't load pickup availability
Vehicle Fitment: Use the table below to match your exact configuration. If you don’t see your exact setup, message us before ordering.
This suspension ball joint is precision-engineered and rigorously tested to provide reliable replacement for the original equipment on specific vehicles.
- Direct replacement - fits and performs like the original equipment on specific vehicles
- Reliable fit - precision-engineered to match the design and dimensions of original components
- Durable construction - manufactured to strict standards using sturdy, safe materials
- Rigorously tested - thorough quality control measures ensure longevity
Vehicle Fitment
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2023-2024 | Toyota | Sequoia | ||
| 2022-2024 | Toyota | Tundra |
Please confirm the part number and your vehicle's year, make, model and engine before ordering. Questions? Message us with your VIN and we'll check fitment for you.
Specifications
| Brand | Dorman |
|---|---|
| Part Number | 545-021 |
| UPC | 194883587106 |
| Material | Steel |
| Thread Direction | Clockwise (Right) |
| Length | 127.6 mm |
| Color | Black |
| Width | 67.23 mm |
| Outside Diameter | 54.35 mm |
| Type | Press-In |
| Mounting Hardware Included | Yes |
| Height | 127.6 mm |
| Adjustable | No |
| Mounting Type | Press In |
| Mounting Hole Quantity | 0 |
| Bearing Type | Polymer |
| Boot Color | Black |
| Cone Outside Diameter | 19 mm |
| Wrench Size | 16 mm |
| Stud Type | Threaded |
| Maximum Outside Diameter | 67.23 mm |
| Reinforced | No |
| Pre-Greased | Yes |
| Castle Nut Included | Yes |
| Grease Fitting Included | No |
| Suspension Grade Type | Standard Replacement |
| Bushings Included | No |
| Dust Boot Included | Yes |
| Ball Joint Assembly | Yes |
| Cotter Pin Included | Yes |
| Cotter Pin Hole | Yes |
| Washers Included | No |
| Grade Type | Standard Replacement |
| Locking Nut Included | Yes |
| Greaseable | No |
| Stud Thread Length | 34.07 mm |
| Steering Type | Power |
| Dust Boot Material | Polychloroprene |
| Bushing Quantity | 0 |
| Mounting Bolts Included | No |
| Mount Plate Included | No |
| Tapered Stud | Yes |
| Stud Tapered End 2 Diameter | 16 mm |
| Stud Tapered End 1 Diameter | 19 mm |
| Attachment Type | Press In |
| Attachments Included | Yes |
| Ball Joint Installed | Yes |
| Bearing Material | Polymer |
| Bolts/Studs Included | Yes |
| Housing Press Fit Diameter | 54.35 mm |
| Nuts Included | Yes |

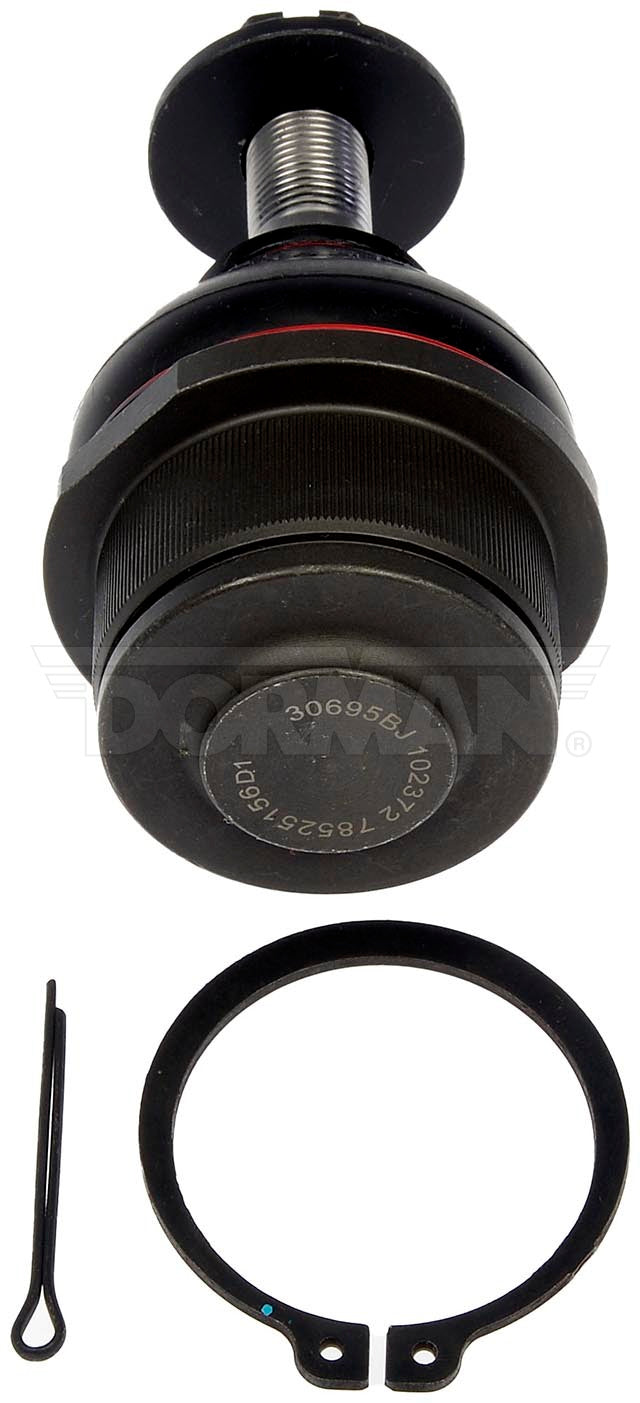

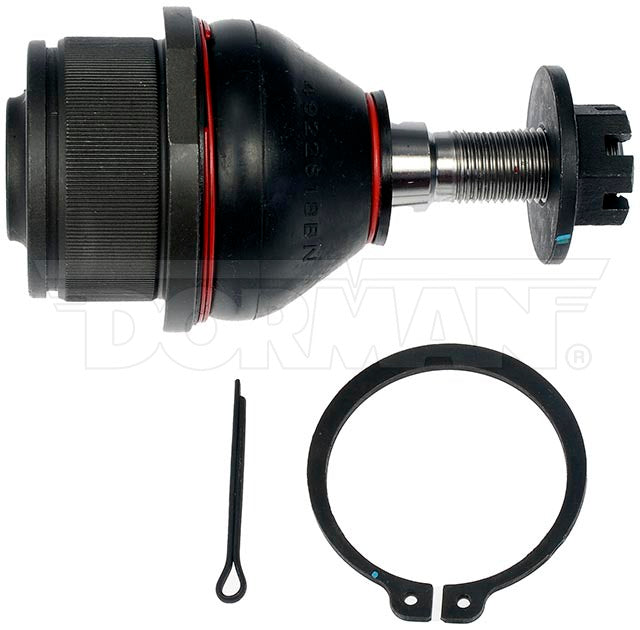

| Package Contents | 1 Ball Joint; 1 Castle Nut; 1 Cotter Pin |
| Retaining Ring Included | No |
| Stud Thread Diameter | 16 mm |
| Stud Thread Pitch | 1.5 mm |
| Stud Threads Per Inch | 2 |
| Thread Pitch | 1.5 |
| Country of Origin | Taiwan |
| Warranty | Limited Lifetime |
OE & Interchange Numbers
| 480690C011 | Toyota (OE) |
|---|---|
| 480680C011 | Toyota (OE) |
| K500492 | Interchange |
