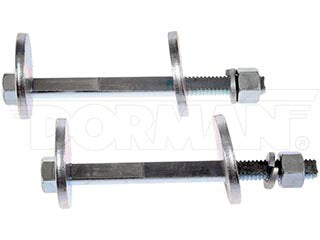

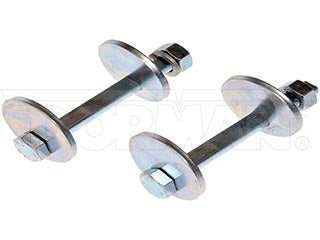

Dorman 545-501 Alignment - Cam Bolt Kit
Regular price
$0.00
Couldn't load pickup availability
Product Description
This alignment cam bolt kit is precision-engineered and rigorously tested to provide reliable replacement for the original equipment on specific vehicles.
- Direct replacement - fits and performs like the original equipment on specific vehicles
- Reliable fit - precision-engineered to match the design and dimensions of original components
- Durable construction - manufactured to strict standards using sturdy, safe materials
- Rigorously tested - thorough quality control measures ensure longevity
Detailed Applications
| Year | Make | Model | Configuration | Positions | Application Notes |
|---|---|---|---|---|---|
| 2004 | Chevrolet | S10 | 4WD | Front | Adjusts Camber -2.50 Degrees to +2.50 Degrees |
| 2004 | GMC | Sonoma | 4WD | Front | Adjusts Camber -2.50 Degrees to +2.50 Degrees |
| 2003 | Chevrolet | S10 | 4WD | Front | Adjusts Camber -2.50 Degrees to +2.50 Degrees |
| 2003 | GMC | Sonoma | 4WD | Front | Adjusts Camber -2.50 Degrees to +2.50 Degrees |
| 2002 | Chevrolet | S10 | 4WD | Front | Adjusts Camber -2.50 Degrees to +2.50 Degrees |
| 2002 | GMC | Sonoma | 4WD | Front | Adjusts Camber -2.50 Degrees to +2.50 Degrees |
| 2001 | Chevrolet | S10 | 4WD | Front | Adjusts Camber -2.50 Degrees to +2.50 Degrees |
| 2001 | GMC | Sonoma | 4WD | Front | Adjusts Camber -2.50 Degrees to +2.50 Degrees |
| 2001 | Oldsmobile | Bravada | AWD | Front | Adjusts Camber -2.50 Degrees to +2.50 Degrees |
| 2000 | Chevrolet | S10 | 4WD | Front | Adjusts Camber -2.50 Degrees to +2.50 Degrees |
| 2000 | GMC | Sonoma | 4WD | Front | Adjusts Camber -2.50 Degrees to +2.50 Degrees |
| 2000 | Isuzu | Hombre | 4WD | Front | Adjusts Camber -2.50 Degrees to +2.50 Degrees |
| 2000 | Oldsmobile | Bravada | AWD | Front | Adjusts Camber -2.50 Degrees to +2.50 Degrees |
| 1999 | Chevrolet | S10 | 4WD | Front | Adjusts Camber -2.50 Degrees to +2.50 Degrees |
| 1999 | GMC | Sonoma | 4WD | Front | Adjusts Camber -2.50 Degrees to +2.50 Degrees |
| 1999 | Isuzu | Hombre | 4WD | Front | Adjusts Camber -2.50 Degrees to +2.50 Degrees |
| 1999 | Oldsmobile | Bravada | AWD | Front | Adjusts Camber -2.50 Degrees to +2.50 Degrees |
| 1998 | Chevrolet | S10 | 4WD | Front | Adjusts Camber -2.50 Degrees to +2.50 Degrees |
| 1998 | GMC | Sonoma | 4WD | Front | Adjusts Camber -2.50 Degrees to +2.50 Degrees |
| 1998 | Isuzu | Hombre | 4WD | Front | Adjusts Camber -2.50 Degrees to +2.50 Degrees |
| 1998 | Oldsmobile | Bravada | AWD | Front | Adjusts Camber -2.50 Degrees to +2.50 Degrees |
| 1997 | Chevrolet | S10 | 4WD | Front | Adjusts Camber -2.50 Degrees to +2.50 Degrees |
| 1997 | GMC | Sonoma | 4WD | Front | Adjusts Camber -2.50 Degrees to +2.50 Degrees |
| 1997 | Oldsmobile | Bravada | AWD | Front | Adjusts Camber -2.50 Degrees to +2.50 Degrees |
| 1996 | Chevrolet | S10 | 4WD | Front | Adjusts Camber -2.50 Degrees to +2.50 Degrees |
| 1996 | GMC | Sonoma | 4WD | Front | Adjusts Camber -2.50 Degrees to +2.50 Degrees |
| 1996 | Oldsmobile | Bravada | AWD | Front | Adjusts Camber -2.50 Degrees to +2.50 Degrees |
| 1995 | Chevrolet | S10 | 4WD | Front | Adjusts Camber -2.50 Degrees to +2.50 Degrees |
| 1995 | GMC | Sonoma | 4WD | Front | Adjusts Camber -2.50 Degrees to +2.50 Degrees |
| 1994 | Chevrolet | S10 | 4WD | Front | Adjusts Camber -2.50 Degrees to +2.50 Degrees |
| 1994 | Chevrolet | S10 Blazer | 4WD | Front | Adjusts Camber -2.50 Degrees to +2.50 Degrees |
| 1994 | GMC | Sonoma | 4WD | Front | Adjusts Camber -2.50 Degrees to +2.50 Degrees |
| 1994 | Oldsmobile | Bravada | AWD | Front | Adjusts Camber -2.50 Degrees to +2.50 Degrees |
| 1993 | Chevrolet | S10 | 4WD | Front | Adjusts Camber -2.50 Degrees to +2.50 Degrees |
| 1993 | Chevrolet | S10 Blazer | 4WD | Front | Adjusts Camber -2.50 Degrees to +2.50 Degrees |
| 1993 | GMC | Sonoma | 4WD | Front | Adjusts Camber -2.50 Degrees to +2.50 Degrees |
| 1993 | Oldsmobile | Bravada | AWD | Front | Adjusts Camber -2.50 Degrees to +2.50 Degrees |
| 1992 | Chevrolet | S10 | 4WD | Front | Adjusts Camber -2.50 Degrees to +2.50 Degrees |
| 1992 | Chevrolet | S10 Blazer | 4WD | Front | Adjusts Camber -2.50 Degrees to +2.50 Degrees |
| 1992 | GMC | Sonoma | 4WD | Front | Adjusts Camber -2.50 Degrees to +2.50 Degrees |
| 1992 | Oldsmobile | Bravada | AWD | Front | Adjusts Camber -2.50 Degrees to +2.50 Degrees |
| 1991 | Chevrolet | S10 | 4WD | Front | Adjusts Camber -2.50 Degrees to +2.50 Degrees |
| 1991 | Chevrolet | S10 Blazer | 4WD | Front | Adjusts Camber -2.50 Degrees to +2.50 Degrees |
| 1991 | GMC | S15 Jimmy | 4WD | Front | Adjusts Camber -2.50 Degrees to +2.50 Degrees |
| 1991 | GMC | Sonoma | 4WD | Front | Adjusts Camber -2.50 Degrees to +2.50 Degrees |
| 1991 | Oldsmobile | Bravada | AWD | Front | Adjusts Camber -2.50 Degrees to +2.50 Degrees |
| 1990 | Chevrolet | S10 | 4WD | Front | Adjusts Camber -2.50 Degrees to +2.50 Degrees |
| 1990 | Chevrolet | S10 Blazer | 4WD | Front | Adjusts Camber -2.50 Degrees to +2.50 Degrees |
| 1990 | GMC | S15 | 4WD | Front | Adjusts Camber -2.50 Degrees to +2.50 Degrees |
| 1990 | GMC | S15 Jimmy | 4WD | Front | Adjusts Camber -2.50 Degrees to +2.50 Degrees |
Product Specifications
| Adjustment Range: | */- 2.5 deg |
|---|---|
| Adjustment Type: | Manual |
| Bolt Grade: | 10.9 |
| Bolt Length: | 110 mm |
| Bolt Thread Diameter: | 12 mm |
| Bolt Thread Pitch: | 1.75 mm |
| Bushing Material: | None |
| Cam Maximum Width: | 44 mm Diameter |
| Cam Thickness: | 4.6 mm |
| Color: | Silver |
| Grease Fitting Included: | No |
| Mount Stud Quantity: | 0 |
| Mounting Hole Diameter: | 12 mm |
| Mounting Hole Quantity: | 1 |
| Nut Included: | Yes |
| Package Contents: | 2 Bolts; 4 Cams; 2 Lock Washers; 2 Nuts |
| Packaging Type: | Box |
| Thread Length: | 35 mm |
| Washer Color: | Yellow |
| Washer Included: | Yes |
| Washer Material: | Steel |
