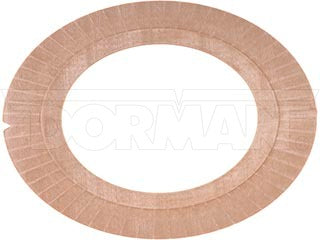

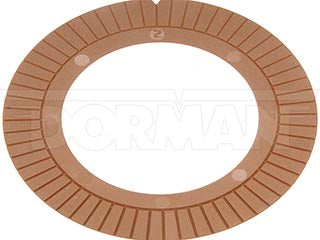

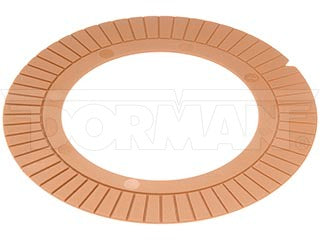

Dorman 546-102 Alignment - Camber / Toe Shim
Confirm Fitment Before You Buy
Not sure it fits? Message Year/Make/Model/Engine (2WD/4WD if applicable) and we’ll help confirm compatibility.
Why buy from Koskowski Automotive?
• 50+ years (since 1972) • Dorman Authorized Seller • Fast shipping • Easy returns
Regular price
$0.00
Couldn't load pickup availability
Vehicle Fitment: Use the table below to match your exact configuration. If you don’t see your exact setup, message us before ordering.
Product Description
This alignment camber and toe shim is precision-engineered and rigorously tested to provide reliable replacement for the original equipment on specific vehicles.
- Direct replacement - fits and performs like the original equipment on specific vehicles
- Reliable fit - precision-engineered to match the design and dimensions of original components
- Durable construction - manufactured to strict standards using sturdy, safe materials
- Rigorously tested - thorough quality control measures ensure longevity
Detailed Applications
| Year | Make | Model | Configuration | Positions | Application Notes |
|---|---|---|---|---|---|
| 2008 | Chevrolet | Cobalt | Rear | Adjusts Toe -0.5 Degrees to +0.5 Degrees | |
| 2007 | Chevrolet | Cobalt | Rear | Adjusts Toe -0.5 Degrees to +0.5 Degrees | |
| 2007 | Saturn | Ion | Rear | Adjusts Toe -0.5 Degrees to +0.5 Degrees | |
| 2006 | Chevrolet | Cobalt | Rear | Adjusts Toe -0.5 Degrees to +0.5 Degrees | |
| 2006 | Chevrolet | HHR | Rear | Adjusts Toe -0.5 Degrees to +0.5 Degrees | |
| 2006 | Pontiac | Pursuit | Rear | Adjusts Toe -0.5 Degrees to +0.5 Degrees | |
| 2006 | Saturn | Ion | Rear | Adjusts Toe -0.5 Degrees to +0.5 Degrees | |
| 2006 | Scion | xA | Rear | Adjusts Toe -0.5 Degrees to +0.5 Degrees | |
| 2005 | Chevrolet | Cobalt | Rear | Adjusts Toe -0.5 Degrees to +0.5 Degrees | |
| 2005 | Pontiac | Pursuit | Rear | Adjusts Toe -0.5 Degrees to +0.5 Degrees | |
| 2005 | Saturn | Ion | Rear | Adjusts Toe -0.5 Degrees to +0.5 Degrees | |
| 2005 | Scion | xA | Rear | Adjusts Toe -0.5 Degrees to +0.5 Degrees | |
| 2004 | Saturn | Ion | Rear | Adjusts Toe -0.5 Degrees to +0.5 Degrees | |
| 2004 | Scion | xA | Rear | Adjusts Toe -0.5 Degrees to +0.5 Degrees | |
| 2003 | Saturn | Ion | Rear | Adjusts Toe -0.5 Degrees to +0.5 Degrees |
Product Specifications
| Bolt Hole Quantity: | 0 |
|---|---|
| Bolt Included: | No |
| Grade Type: | Standard |
| Package Contents: | 1 Shim |
| Package Quantity: | 1 |
| Packaging Type: | Box |
| Selling Package Quantity UOM: | Piece |
| Shim Color: | Brown |
| Shim Material: | Plastic |
| Shim Maximum Inside Diameter: | 61 mm |
| Shim Maximum Outside Diameter: | 98 mm |
| Shim Maximum Thickness: | 1.9 mm |
| Shim Minimum Inside Diameter: | 60 mm |
| Shim Minimum Outside Diameter: | 96.5 mm |
| Shim Minimum Thickness: | 0.8 mm |
| Shim Shape: | Round |
