Product Description

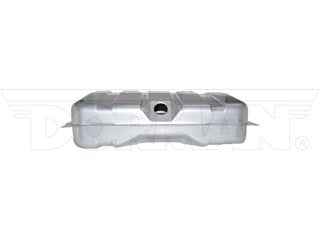

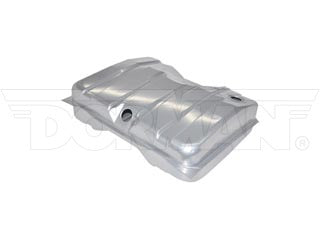

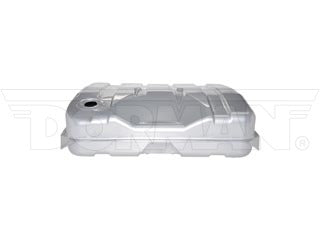

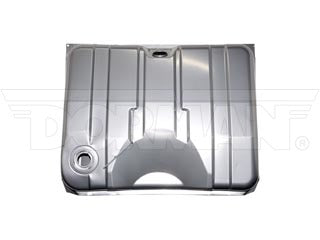

This replacement fuel tank is precision-engineered to match the fit and function of the original fuel tank on specified vehicles.
- Reliable replacement - this fuel tank directly replaces the original fuel tank on specified vehicle years, makes and models
- Durable construction - this fuel tank is made from the same rugged materials as the original part for dependable service
- Quality assured - this part has been validated to ensure a quality fit and long service life
- Trustworthy design - backed by team of product specialists in the United States
Detailed Applications
| Year | Make | Model | Configuration | Positions | Application Notes |
|---|
| 1988 | American Motors | Eagle | w/Lock Ring and Seal | ||
| 1987 | American Motors | Eagle | w/Lock Ring and Seal | ||
| 1986 | American Motors | Eagle | w/Lock Ring and Seal | ||
| 1985 | American Motors | Eagle | w/Lock Ring and Seal | ||
| 1984 | American Motors | Eagle | w/Lock Ring and Seal | ||
| 1983 | American Motors | Concord | w/Lock Ring and Seal | ||
| 1983 | American Motors | Eagle | w/Lock Ring and Seal | ||
| 1982 | American Motors | Concord | w/Lock Ring and Seal | ||
| 1982 | American Motors | Eagle | w/Lock Ring and Seal | ||
| 1981 | American Motors | Concord | w/Lock Ring and Seal | ||
| 1981 | American Motors | Eagle | w/Lock Ring and Seal | ||
| 1980 | American Motors | Concord | w/Lock Ring and Seal | ||
| 1980 | American Motors | Eagle | w/Lock Ring and Seal | ||
| 1979 | American Motors | Concord | w/Lock Ring and Seal | ||
| 1978 | American Motors | AMX | w/Lock Ring and Seal | ||
| 1978 | American Motors | Concord | w/Lock Ring and Seal | ||
| 1977 | American Motors | Hornet | w/Lock Ring and Seal | ||
| 1976 | American Motors | Hornet | w/Lock Ring and Seal |
Product Specifications
| Attached Sump: | No |
|---|---|
| Baffled Sump: | Yes |
| Capacity: | 22 gal |
| Color: | Silver |
| Filler Neck Attached: | No |
| Fuel Pump Included: | No |
| Fuel System Compatibility: | Electronic Fuel Injection |
| Fuel Tank Coating: | Zinc; Clear Chromate |
| Height: | 9.84 in |
| Length: | 30.31 in |
| Lock Ring Included: | Yes |
| Material: | Steel |
| Mounting Straps Included: | No |
| O-Ring Included: | Yes |

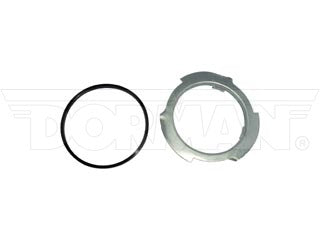

| Package Contents: | 1 Fuel Tank; 1 Lock Ring; 1 O-Ring |
| Package Quantity: | 1 |
| Packaging Type: | Box |
| Sending Unit Included: | No |
| Width: | 23.62 in |
OE Numbers
| DIRECT OE CROSS | |
|---|---|
| J8126444 | CHRYSLER |
| J8127668 | CHRYSLER |
| J8131654 | AMERICAN MOTORS |
