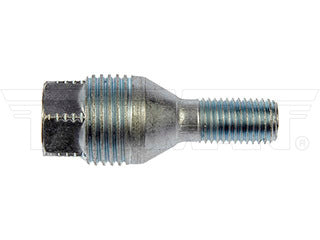

Dorman 610-494.1 Wheel Lug Bolt
Regular price
$13.50
Couldn't load pickup availability
Product Description
This replacement wheel lug bolt matches the original equipment hard wear dimensions for a reliable fit. Made of quality materials to ensure safe installation of the wheel under all conditions.
- Ideal replacement - this wheel lug bolt is a direct replacement for the original hardware
- Durable construction - made of quality materials for safe, reliable service
- Cost-effective solution - offers original equipment quality at a competitive price
- Quality tested - this part has undergone try-on and material testing to ensure a quality fit and long service life
Detailed Applications
| Year | Make | Model | Configuration | Positions | Application Notes |
|---|---|---|---|---|---|
| 2005 | Saturn | L300 | Front; Rear | Original Style | |
| 2004 | Saturn | L300 | 1 Submodel | Front; Rear | Original Style |
| 2004 | Saturn | L300 | 2 Submodel | Front; Rear | Original Style |
| 2004 | Saturn | L300 | 3 Submodel | Front; Rear | Original Style |
| 2003 | Saturn | L200 | Front; Rear | Original Style | |
| 2003 | Saturn | L300 | Front; Rear | Original Style | |
| 2003 | Saturn | LW200 | Front; Rear | Original Style | |
| 2003 | Saturn | LW300 | Front; Rear | Original Style | |
| 2002 | Saturn | L100 | Front; Rear | Original Style | |
| 2002 | Saturn | L200 | Front; Rear | Original Style | |
| 2002 | Saturn | L300 | Front; Rear | Original Style | |
| 2002 | Saturn | LW200 | Front; Rear | Original Style | |
| 2002 | Saturn | LW300 | Front; Rear | Original Style | |
| 2001 | Saturn | L100 | Front; Rear | Original Style | |
| 2001 | Saturn | L200 | Front; Rear | Original Style | |
| 2001 | Saturn | L300 | Front; Rear | Original Style | |
| 2001 | Saturn | LW200 | Front; Rear | Original Style | |
| 2001 | Saturn | LW300 | Front; Rear | Original Style | |
| 2000 | Saturn | LS | Front; Rear | Original Style | |
| 2000 | Saturn | LS1 | Front; Rear | Original Style | |
| 2000 | Saturn | LS2 | Front; Rear | Original Style | |
| 2000 | Saturn | LW1 | Front; Rear | Original Style | |
| 2000 | Saturn | LW2 | Front; Rear | Original Style |
Product Specifications
| Bolt Grade: | Grade 8 |
|---|---|
| Color: | Silver |
| Flange Diameter: | 23.4 mm |
| Hex Size: | 19 mm |
| Length: | 22.96 mm |
| Material: | Steel |
| Overall Length: | 59.17 mm |
| Package Contents: | 1 Lug Bolt |
| SAE or Metric: | Metric |
| Seat Style: | Conical Seat - 60 deg |
| Selling Package Quantity UOM: | Piece |
| Thread Diameter: | M12 |
| Thread Length: | 20.5 mm |
| Thread Pitch: | 1.5 mm |
| Thread Size: | M12-1.50 |
| Thread Type: | Fine |
| Packaging Type: | Bag |
| Package Quantity: | 1 |
OE Numbers
| DIRECT OE CROSS | |
|---|---|
| 24406586 | GENERAL MOTORS |
| 24409646 | GENERAL MOTORS |
