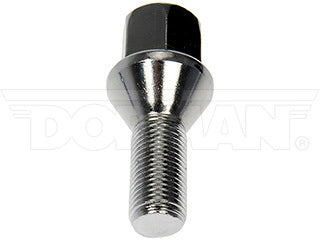

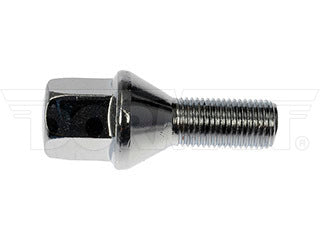

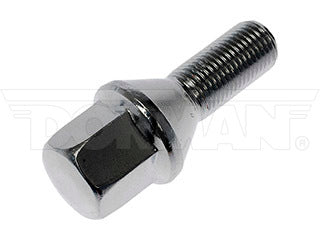

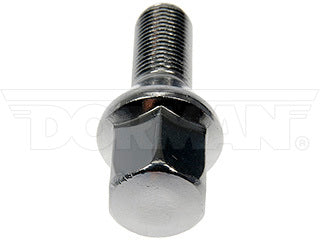

Dorman 610-632.1 Wheel Lug Bolt
Regular price
$10.69
Couldn't load pickup availability
Product Description
The original lug bolt on certain vehicles has a failure-prone two-piece design that makes rust common and repair difficult. This Dorman OE FIX replacement has a one-piece, carbon steel design to prevent future problems.
- Improved design - this replacement lug bolt changes the original two-piece design to one piece for greater reliability
- Thoroughly tested - part has undergone proof load, salt spray, hardness and thread check testing to meet strict standards
- Quality engineering - designed in the United States and backed by decades of automotive aftermarket experience
- Corrosion resistant - chrome design and removal of cap prevents future rust
Detailed Applications
| Year | Make | Model | Configuration | Positions | Application Notes |
|---|---|---|---|---|---|
| 2024 | Dodge | Hornet | Front; Rear | ||
| 2024 | Jeep | Renegade (Mexico) | Front; Rear | ||
| 2023 | Dodge | Hornet | Front; Rear | ||
| 2023 | Jeep | Renegade | Front; Rear | ||
| 2022 | Jeep | Renegade | Front; Rear | ||
| 2021 | Jeep | Renegade | Front; Rear | ||
| 2020 | Jeep | Renegade | Front; Rear | ||
| 2019 | Jeep | Renegade | Front; Rear | ||
| 2018 | Jeep | Renegade | Front; Rear | ||
| 2017 | Jeep | Renegade | Front; Rear | ||
| 2016 | Jeep | Renegade | Front; Rear | ||
| 2015 | Jeep | Renegade | Front; Rear |
Product Specifications
| Bolt Grade: | 10.9 |
|---|---|
| Color: | Gray |
| Finish: | Chrome Plated |
| Hex Size: | 17 mm |
| Length: | 54 mm |
| Material: | Steel |
| OE Replacement Or Custom Performance: | OE Replacement |
| Overall Length: | 54 mm |
| Package Contents: | 1 Wheel Bolt |
| SAE or Metric: | Metric |
| Seat Style: | Conical Seat - 60 deg |
| Seat Type: | Conical Seat - 60 deg |
| Selling Package Quantity UOM: | Piece |
| Thread Diameter: | 14 mm |
| Thread Length: | 22.5 mm |
| Thread Pitch: | 1.25 |
| Thread Size: | M12-1.25 |
| Thread Type: | Medium |
| Under Head Length: | 34 mm |
| Packaging Type: | Bag |
| Package Quantity: | 1 |
OE Numbers
| DIRECT OE CROSS | |
|---|---|
| 68296586AA | CHRYSLER |
