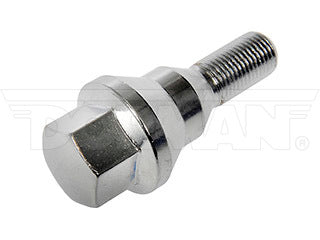

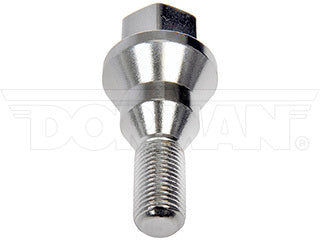

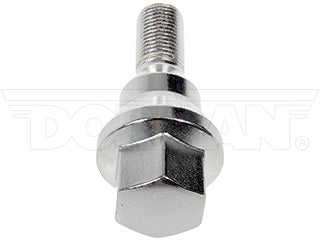

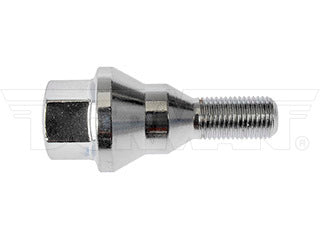

Dorman 611-006 Wheel Lug Bolt
Regular price
$20.25
Couldn't load pickup availability
Product Description
This replacement wheel lug bolt matches the original equipment hard wear dimensions for a reliable fit. Made of quality materials to ensure safe installation of the wheel under all conditions.
- Ideal replacement - this wheel lug bolt is a direct replacement for the original hardware
- Durable construction - made of quality materials for safe, reliable service
- Cost-effective solution - offers original equipment quality at a competitive price
- Quality tested - this part has undergone try-on and material testing to ensure a quality fit and long service life
Detailed Applications
| Year | Make | Model | Configuration | Positions | Application Notes |
|---|---|---|---|---|---|
| 2017 | Chrysler | 200 | Steel Wheels | ||
| 2016 | Chrysler | 200 | Steel Wheels | ||
| 2016 | Dodge | Dart | Steel Wheels | ||
| 2015 | Chrysler | 200 | Steel Wheels | ||
| 2015 | Dodge | Dart | Steel Wheels | ||
| 2014 | Dodge | Dart | Steel Wheels | ||
| 2013 | Dodge | Dart | Steel Wheels |
Product Specifications
| Bolt Grade: | Grade 5 |
|---|---|
| Color: | Silver |
| Flange Diameter: | 28.5 mm |
| Hex Size: | 19 mm |
| Length: | 22.8 mm |
| Material: | Steel |
| OE Replacement Or Custom Performance: | OE Replacement |
| Overall Length: | 63 mm |
| Package Contents: | 10 Studs |
| SAE or Metric: | Metric |
| Seat Style: | Conical Seat - 60 deg |
| Selling Package Quantity UOM: | Piece |
| Thread Diameter: | M12 |
| Thread Length: | 22.8 mm |
| Thread Pitch: | 1.25 |
| Thread Size: | M12-1.25 |
| Thread Type: | Medium |
| Packaging Type: | Box |
| Package Quantity: | 10 |
OE Numbers
| DIRECT OE CROSS | |
|---|---|
| 6509938AA | CHRYSLER |
| 6511052AA | CHRYSLER |
