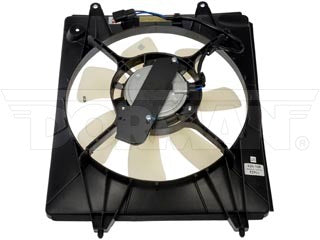

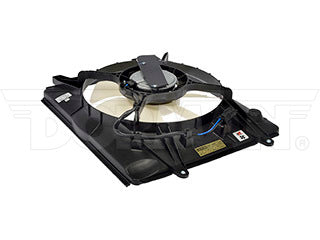

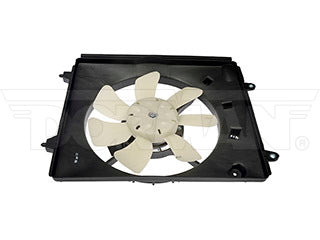

Dorman 620-938 A/C Condenser Fan Assembly
Regular price
$186.40
Couldn't load pickup availability
Product Description
This A/C condenser fan assembly is precision-engineered to match the fit and performance of the stock condenser fan on specific vehicle years, makes and models. It has been rigorously tested to ensure it functions as effectively as the original part.
- Ideal replacement - this air conditioner condenser fan assembly is engineered to match the fit and performance of the stock condenser fan on specific vehicles
- Complete package - assembly is designed with the same materials and components as the original part
- Quality assured - components are tested in laboratory settings to ensure performance
- Cost effective and reliable - trustworthy manufacturing for far less than same part at the dealership
Detailed Applications
| Year | Make | Model | Configuration | Positions | Application Notes |
|---|---|---|---|---|---|
| 2016 | Honda | CR-V | |||
| 2015 | Honda | CR-V |
Product Specifications
| Blade Material: | Plastic |
|---|---|
| Blade Type: | Forward Align Fin |

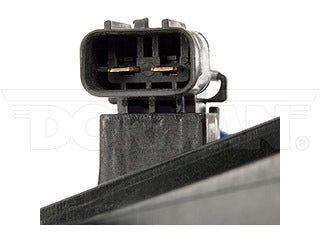

| Connector Gender: | Male |
| Connector Quantity: | 1 |
| Connector Type: | Male |
| Electrical Or Mechanical: | Electrical |
| Fan 1 Blade Quantity: | 7 |
| Fan 1 Diameter: | 350 mm |
| Fan Clutch Mounted: | No |
| Fan Quantity: | 1 |
| Fan Rotation: | Clockwise |
| Flat Side On Shaft: | No |
| Grade Type: | Regular |
| Housing Finish: | Plastic |
| Hub Bolt Hole Diameter: | 110 mm |
| Hub Bolt Hole Quantity: | 3 |
| Material: | Plastic |
| Motor Type: | Brushed |
| Mount Type: | Bracket |
| Package Contents: | Radiator Fan Assembly |
| Package Quantity: | 1 |
| Packaging Type: | Box |
| Shaft Diameter: | 5 mm |
| Shaft Length: | 20 mm |
| Shroud Color: | Black |
| Shroud Included: | Yes |
| Shroud Material: | Plastic |
| Terminal Gender: | Male |
| Terminal Quantity: | 2 |
| Voltage: | 12 V |
OE Numbers
| DIRECT OE CROSS | |
|---|---|
| 38611RMXA51 | HONDA |
| 386155LAA01 | HONDA |
| 386165LAA01 | HONDA |
