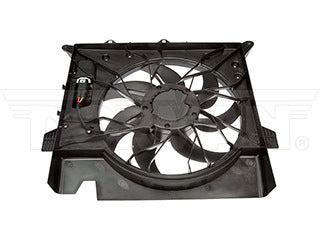

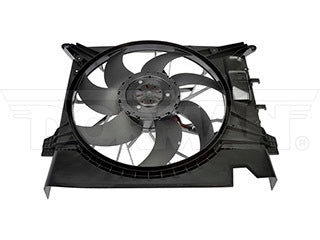

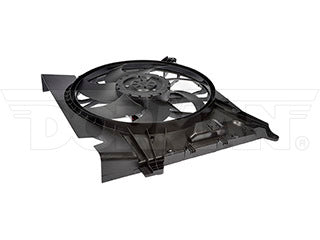

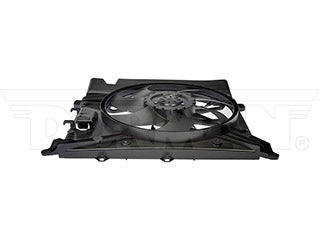

Dorman 620-939 Radiator Fan Assembly
Regular price
$364.54
Couldn't load pickup availability
Product Description
This engine cooling fan assembly is precision-engineered to match the fit and performance of the stock radiator fan on specific vehicle years, makes and models. It has been rigorously tested to ensure it cools as effectively as the original part.
- Ideal replacement - this engine cooling fan assembly was precision-engineered to match the fit and performance of the stock radiator fan assembly on specific vehicles
- Complete package - assembly is designed with the same materials and components as the original part
- Quality assured - motors are tested in laboratory settings to ensure performance
- Cost effective and reliable - trustworthy manufacturing for far less than same part at the dealership
Detailed Applications
| Year | Make | Model | Configuration | Positions | Application Notes |
|---|---|---|---|---|---|
| 2014 | Volvo | XC90 | L6 3.2L (3192cc) | Assembly | |
| 2013 | Volvo | XC90 | L6 3.2L (3192cc) | Assembly | |
| 2012 | Volvo | XC90 | L6 3.2L (3192cc) | Assembly | |
| 2011 | Volvo | XC90 | L6 3.2L (3192cc) | Assembly | |
| 2011 | Volvo | XC90 | V8 269 4.4L (4414cc) | Assembly | |
| 2010 | Volvo | XC90 | L6 3.2L (3192cc) | Assembly | |
| 2010 | Volvo | XC90 | V8 269 4.4L (4414cc) | Assembly | |
| 2009 | Volvo | XC90 | L6 3.2L (3192cc) | Assembly | |
| 2009 | Volvo | XC90 | V8 269 4.4L (4414cc) | Assembly | |
| 2008 | Volvo | XC90 | L6 3.2L (3192cc) | Assembly | |
| 2008 | Volvo | XC90 | V8 269 4.4L (4414cc) | Assembly | |
| 2007 | Volvo | XC90 | L6 3.2L (3192cc) | Assembly | |
| 2007 | Volvo | XC90 | V8 269 4.4L (4414cc) | Assembly | |
| 2006 | Volvo | XC90 | L5 2.5L (2521cc) | Assembly | |
| 2006 | Volvo | XC90 | V8 269 4.4L (4414cc) | Assembly | |
| 2005 | Volvo | XC90 | L5 2.5L (2521cc) | Assembly | |
| 2005 | Volvo | XC90 | L6 2.9L (2917cc) | Assembly | |
| 2005 | Volvo | XC90 | V8 269 4.4L (4414cc) | Assembly | |
| 2004 | Volvo | XC90 | L6 2.9L (2917cc) | Assembly | |
| 2003 | Volvo | XC90 | L6 2.9L (2917cc) | Assembly |
Product Specifications
| Blade Material: | Plastic |
|---|---|
| Blade Type: | Backward Align Fan |

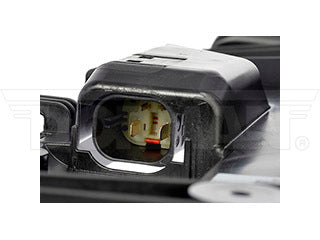

| Connector Gender: | Male |
| Connector Quantity: | 1 |
| Diameter: | 482.6 mm |
| Electrical Or Mechanical: | Electrical |
| Fan 1 Blade Quantity: | 7 |
| Fan 1 Diameter: | 482.6 mm |
| Fan Clutch Mounted: | No |
| Fan Quantity: | 1 |
| Fan Rotation: | Counterclockwise (Left) |
| Flat Side On Shaft: | No |
| Housing Finish: | Plastic |
| Hub Bolt Hole Diameter: | 9 mm |
| Hub Bolt Hole Quantity: | 5 |
| Material: | Plastic |
| Motor Type: | Brushed |
| Package Contents: | 1 Radiator Fan Assembly |
| Package Quantity: | 1 |
| Packaging Type: | Box |
| Shaft Diameter: | 5 mm |
| Shaft Length: | 10 mm |
| Shroud Color: | Black |
| Shroud Included: | Yes |
| Shroud Material: | Plastic |
| Terminal Gender: | Male |
| Terminal Quantity: | 3 |
| Voltage: | 12 V |
OE Numbers
| DIRECT OE CROSS | |
|---|---|
| 30680005 | VOLVO |
| 31368075 | VOLVO |
