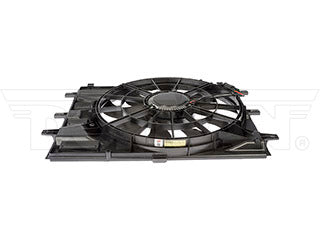

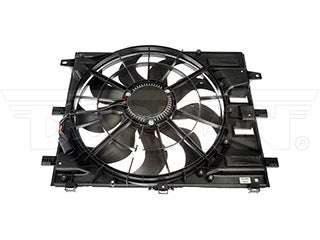

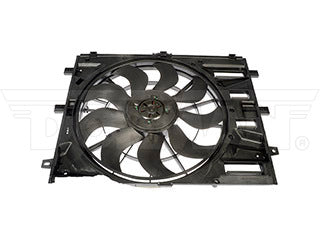

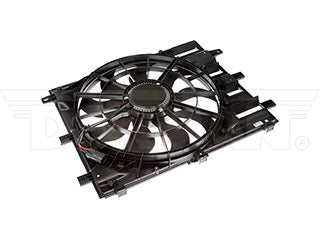

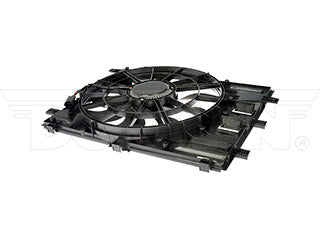

Dorman 621-985 Radiator Fan Assembly
Regular price
$0.00
Couldn't load pickup availability
Product Description
This engine cooling fan assembly is precision-engineered to match the fit and performance of the stock radiator fan on specific vehicle years, makes and models. It has been rigorously tested to ensure it cools as effectively as the original part.
- Ideal replacement - this engine cooling fan assembly was precision-engineered to match the fit and performance of the stock radiator fan assembly on specific vehicles
- Complete package - assembly is designed with the same materials and components as the original part
- Quality assured - motors are tested in laboratory settings to ensure performance
- Cost effective and reliable - trustworthy manufacturing for far less than same part at the dealership
Detailed Applications
| Year | Make | Model | Configuration | Positions | Application Notes |
|---|---|---|---|---|---|
| 2023 | Chevrolet | Equinox | L4 91 1.5L (1490cc) | ||
| 2023 | GMC | Terrain | L4 91 1.5L (1490cc) | ||
| 2022 | Chevrolet | Equinox | L4 91 1.5L (1490cc) | ||
| 2022 | GMC | Terrain | L4 91 1.5L (1490cc) | ||
| 2021 | Chevrolet | Equinox | L4 91 1.5L (1490cc) | ||
| 2021 | GMC | Terrain | L4 91 1.5L (1490cc) | ||
| 2020 | Chevrolet | Equinox | L4 122 2.0L (1998cc) | ||
| 2020 | Chevrolet | Equinox | L4 91 1.5L (1490cc) | ||
| 2020 | GMC | Terrain | L4 122 2.0L (1998cc) | wo/RPO Code V92 (Trailer Provisions) | |
| 2020 | GMC | Terrain | L4 91 1.5L (1490cc) |
Product Specifications
| Airflow Rate: | 4230.7 cfm |
|---|---|
| Amperage Rating: | 26.3 A |
| Blade Color: | Black |
| Blade Included: | Yes |
| Blade Material: | Plastic |
| Blade Type: | Standard Replacement |
| Connector Gender: | Male |
| Connector Quantity: | 1 |

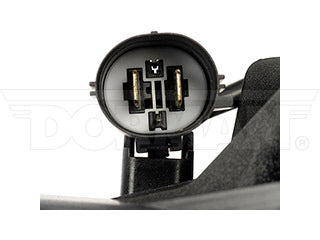

| Connector Type: | Blade |
| Control Module Included: | Yes |
| Control Unit Included: | No |
| Depth: | 86 mm |
| Diameter: | 535 mm |
| Electrical Or Mechanical: | Electrical |
| Fan 1 Blade Quantity: | 9 |
| Fan 1 Diameter: | 535 mm |
| Fan Clutch Mounted: | Yes |
| Fan Quantity: | 1 |
| Fan Rotation: | Clockwise (Right) |
| Flat Side On Shaft: | Yes |
| Grade Type: | Regular |
| Hardwired Or Plug-In: | Hardwired |
| Height: | 567 mm |
| Housing Finish: | Plastic |
| Hub Bolt Hole Diameter: | 10.92 mm |
| Hub Bolt Hole Quantity: | 2 |
| Material: | Plastic |
| Motor Included: | No |
| Motor Type: | Brushed |
| Package Contents: | 1 Radiator Fan Assembly |
| Package Quantity: | 1 |
| Packaging Type: | Box |
| Shaft Diameter: | 138 mm |
| Shroud Color: | Black |
| Shroud Included: | Yes |
| Shroud Material: | Plastic |
| Terminal Gender: | Male |
| Terminal Quantity: | 2 |
| Terminal Type: | Blade |
| Voltage: | 12 VDC |
| Width: | 781 mm |
| Wiring Harness Included: | No |
OE Numbers
| DIRECT OE CROSS | |
|---|---|
| 84847896 | GENERAL MOTORS |
| NON-DIRECT OE CROSS | |
|---|---|
| 84581335 | GENERAL MOTORS |
| 84581336 | GENERAL MOTORS |
| 84847895 | GENERAL MOTORS |
