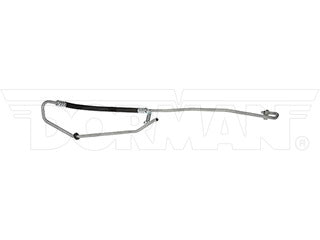

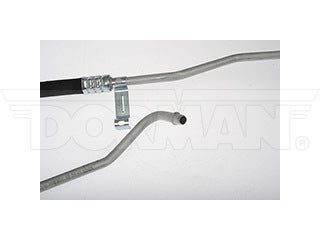

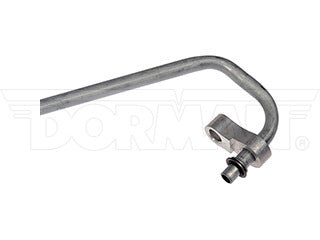

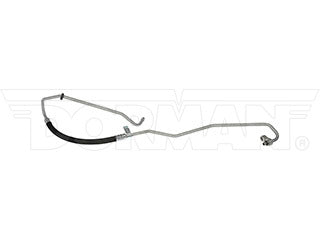

Dorman 624-572 Transmission Oil Cooler Line
Regular price
$42.44
Couldn't load pickup availability
Product Description
This automatic transmission oil cooler hose assembly is designed to match the fit and function of an original assembly. It is engineered from durable components as a reliable replacement for leaking or damaged lines on specified vehicles.
- Direct replacement - this automatic transmission oil cooler hose assembly is designed to match the fit and function of the original equipment assembly on specified vehicle makes, models and years
- Ideal solution - engineered to help ensure proper transmission cooling when the original assembly is leaking or has failed from corrosion, collision, vibration, or fitting damage
- Durable construction - made of quality materials for reliable performance and long service life
- Trustworthy quality - backed by a team of product experts in the United States and more than a century of automotive experience
Detailed Applications
| Year | Make | Model | Configuration | Positions | Application Notes |
|---|---|---|---|---|---|
| 2017 | Chevrolet | Equinox | L4 145 2.4L (2384cc) | Outlet (Upper) | |
| 2017 | GMC | Terrain | L4 145 2.4L (2384cc) | Outlet (Upper) | |
| 2016 | Chevrolet | Equinox | L4 145 2.4L (2384cc) | Outlet (Upper) | |
| 2016 | GMC | Terrain | L4 145 2.4L (2384cc) | Outlet (Upper) | |
| 2015 | Chevrolet | Equinox | L4 145 2.4L (2384cc) | Outlet (Upper) | |
| 2015 | GMC | Terrain | L4 145 2.4L (2384cc) | Outlet (Upper) | |
| 2014 | Chevrolet | Equinox | L4 145 2.4L (2384cc) | Outlet (Upper) | |
| 2014 | GMC | Terrain | L4 145 2.4L (2384cc) | Outlet (Upper) | |
| 2013 | Chevrolet | Equinox | L4 145 2.4L (2384cc) | Outlet (Upper) | |
| 2013 | GMC | Terrain | L4 145 2.4L (2384cc) | Outlet (Upper) | |
| 2012 | Chevrolet | Equinox | L4 145 2.4L (2384cc) | Outlet (Upper) | |
| 2012 | GMC | Terrain | L4 145 2.4L (2384cc) | Outlet (Upper) | |
| 2011 | Chevrolet | Equinox | L4 145 2.4L (2384cc) | Outlet (Upper) | |
| 2011 | GMC | Terrain | L4 145 2.4L (2384cc) | Outlet (Upper) | |
| 2010 | Chevrolet | Equinox | L4 145 2.4L (2384cc) | Outlet (Upper) | |
| 2010 | GMC | Terrain | L4 145 2.4L (2384cc) | Outlet (Upper) |
Product Specifications
| Contains Spring: | No |
|---|---|
| End 1 Inside Diameter: | 0.28 in |
| End 1 Type: | Hose Barb |
| End 2 Type: | Female Threads |
| Flexible: | Yes |
| Gasket Or Seal Included: | No |
| Hose Material: | Metal; Rubber |
| Hose Shape: | Molded Assembly |
| Housing Color: | Silver |
| Length: | 24.8 in |
| Maximum Operating Temperature (°F): | 302 Deg. F. |
| Maximum Working Pressure: | 1000 PSI |
| Minimum Operating Temperature (°F): | -40 Deg. F. |
| Package Contents: | 1 Transmission Line; 1 Connector; 1 Bracket; 1 Retaining Clip |
| Package Quantity: | 1 |
| Packaging Type: | Bag |
OE Numbers
| DIRECT OE CROSS | |
|---|---|
| 23467181 | GENERAL MOTORS |
| 25803952 | GENERAL MOTORS |
